Shift Solenoid Valve B Replacement

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mounting bolt and the shift solenoid valve B.

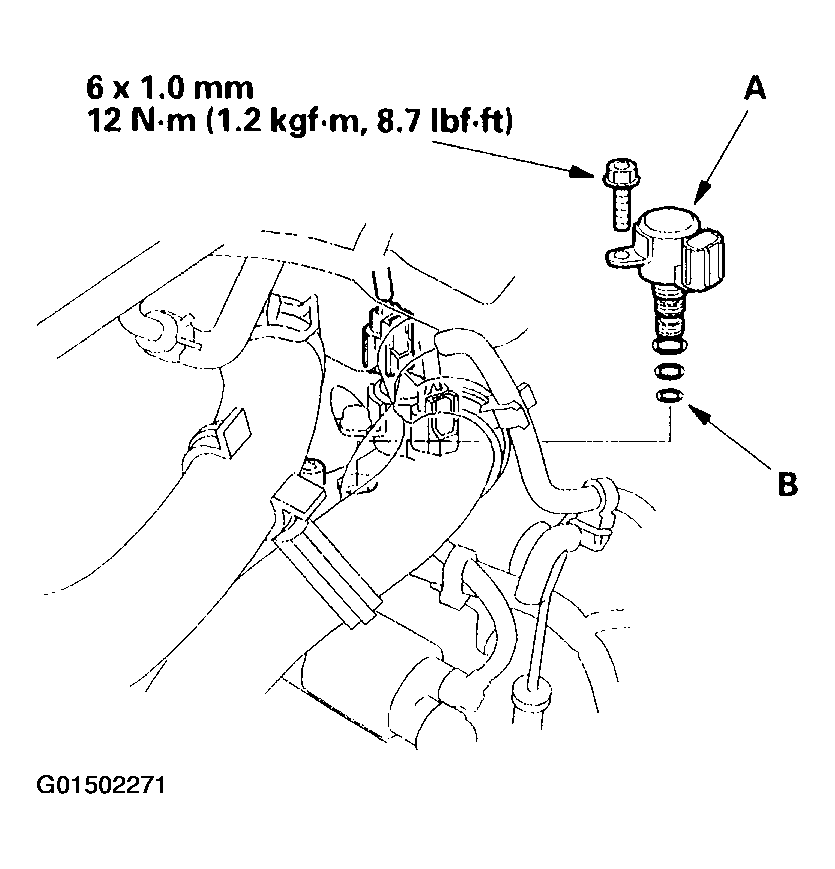

    Fig 1: Removing & Installing Shift Solenoid Valve B
    G01502271Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install a new shift solenoid valve B (A) with new O-rings (B). When installing the solenoid valve, do not allow dust or other foreign particles to enter the transmission.
  3. Check the connector for rust, dirt, or oil, then reconnect it.
