Shift Solenoid Valve A and C Replacement

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If shift solenoid valves A and C are replaced or removed at the same time, be sure to reinstall them correctly. The connector color of shift solenoid valve A is Black, and the connector color of shift solenoid valve C is Brown.
  1. If you are replacing shift solenoid valve C, remove the starter.
  2. Remove the mounting bolt and the shift solenoid valve A.

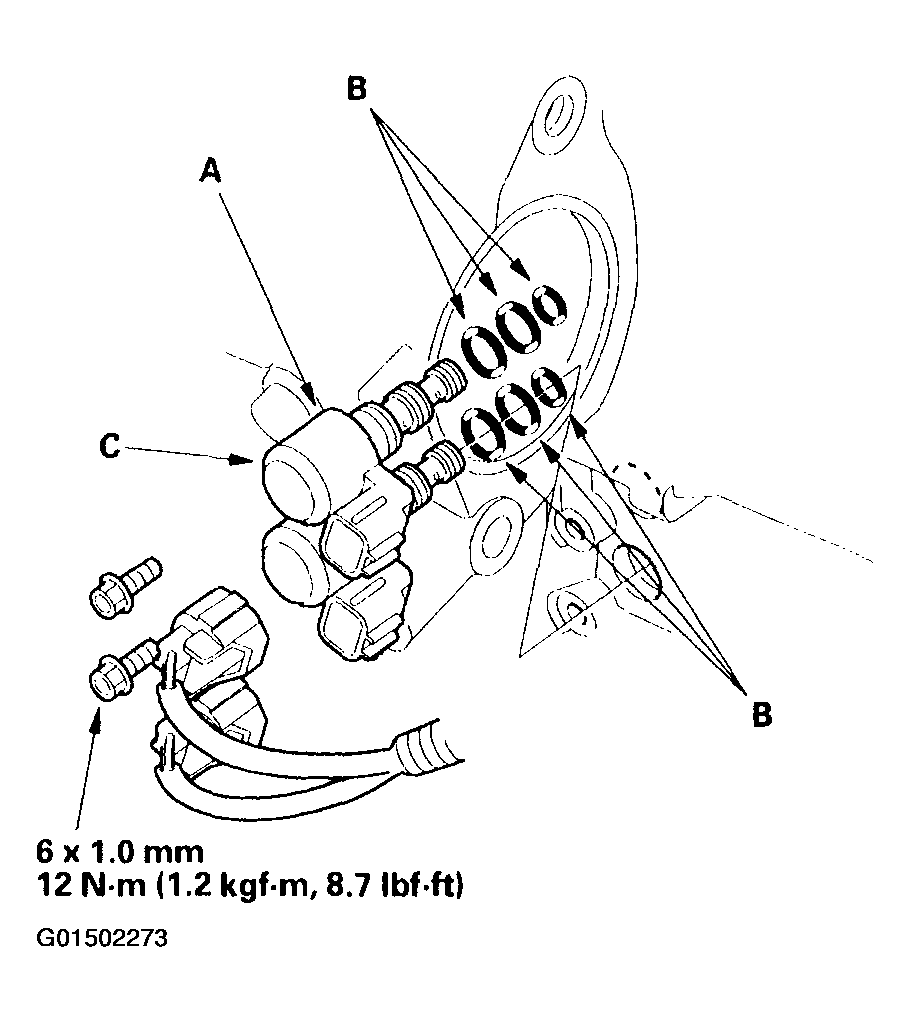

    Fig 1: Removing & Installing Shift Solenoid Valves A & C
    G01502273Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the mounting bolt and shift solenoid valve C.
  4. Install a new shift solenoid valve A or C with new O-rings (B). While installing the valves, do not allow dust or other foreign particles to enter the transmission.
  5. Check the connectors for rust, dirt, or oil, then reconnect them.
  6. Install the starter, if removed.
