Input Shaft (Mainshaft) Speed Sensor Replacement

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the input shaft (mainshaft) speed sensor connector.
  2. Remove the bolt securing the input shaft (mainshaft) speed sensor, then remove the input shaft (mainshaft) speed sensor (A) from the end cover.

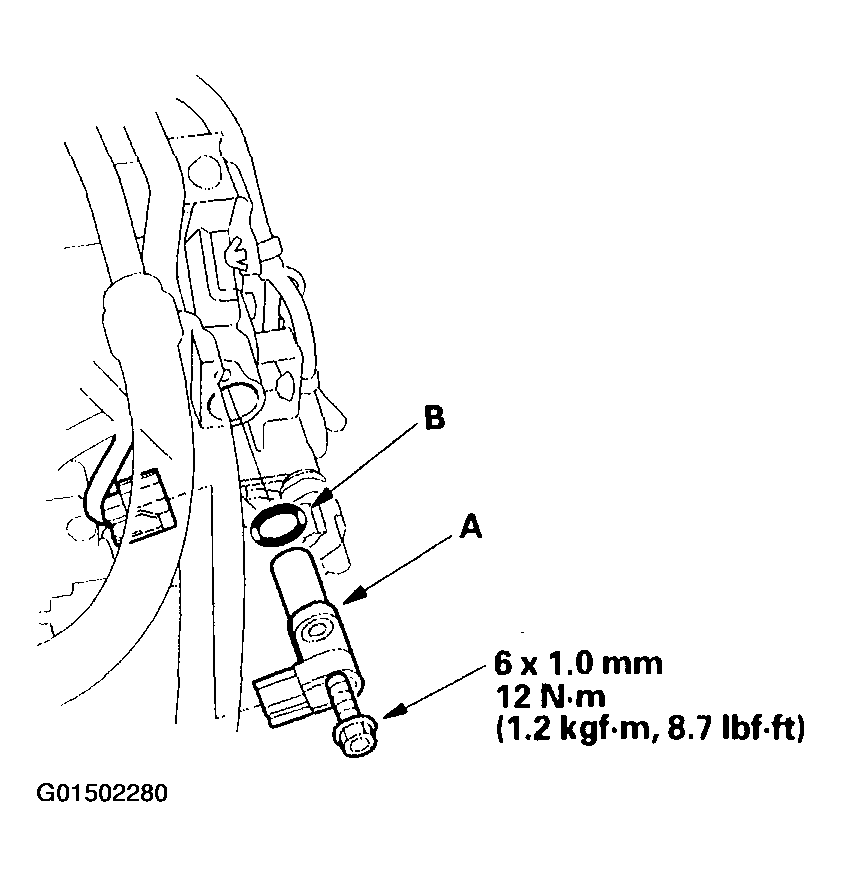

    Fig 1: Removing & Installing Input Shaft (Mainshaft) Speed Sensor
    G01502280Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the new O-ring (B) on the input shaft (mainshaft) speed sensor, then install the input shaft (mainshaft) speed sensor in the end cover. Do not allow dust or foreign particles to enter the transmission.
  4. Check the connector for rust, dirt, or oil, then connect the connector securely.
