ATF Temperature Sensor Replacement

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission lower mount nuts.

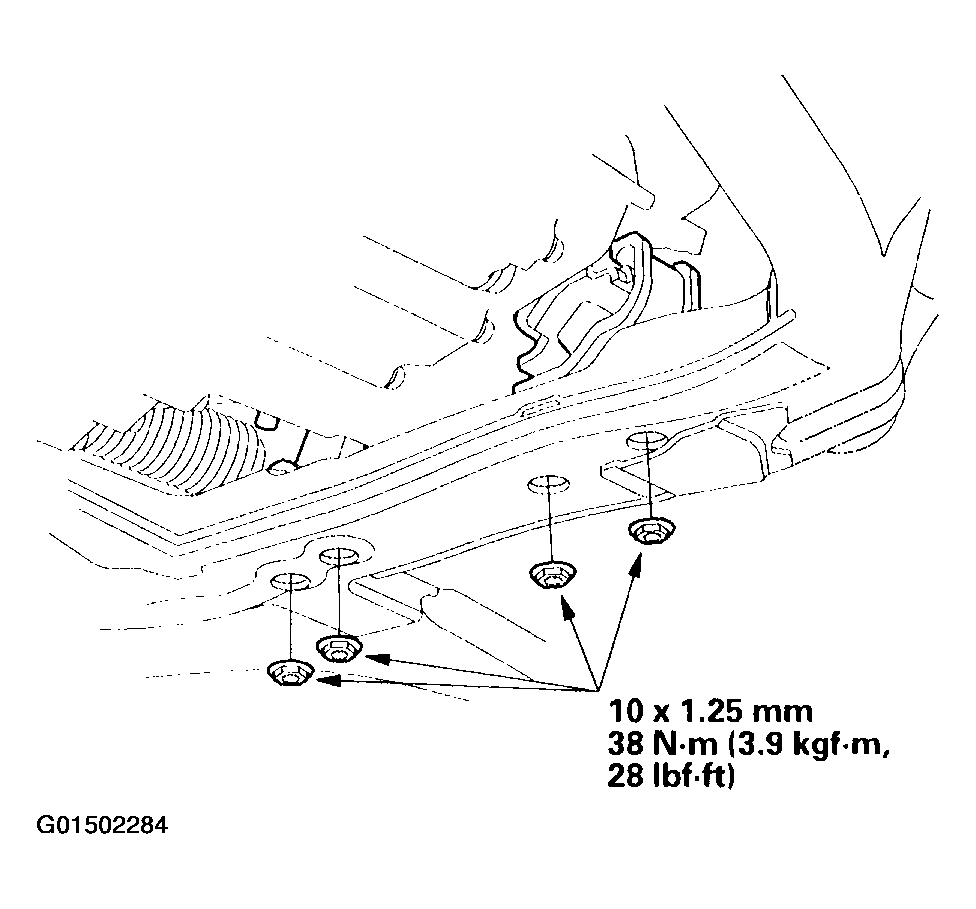

    Fig 1: Removing & Installing Transmission Lower Mount Nuts
    G01502284Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Place the transmission jack under the transmission, and lift it up until the studs of the transmission lower front mount clear the subframe.
  3. Remove the transmission lower front mount.

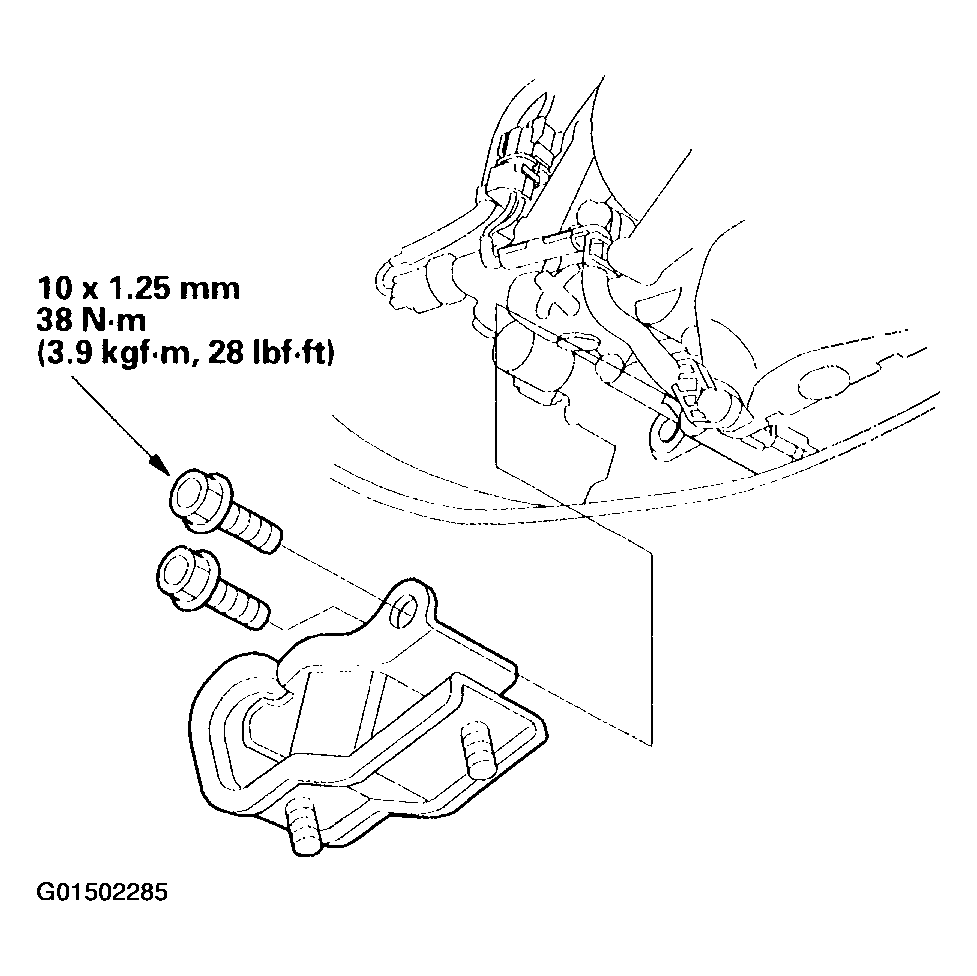

    Fig 2: Removing & Installing Transmission Lower Front Mount
    G01502285Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connector (A) from the ATF temperature sensor.

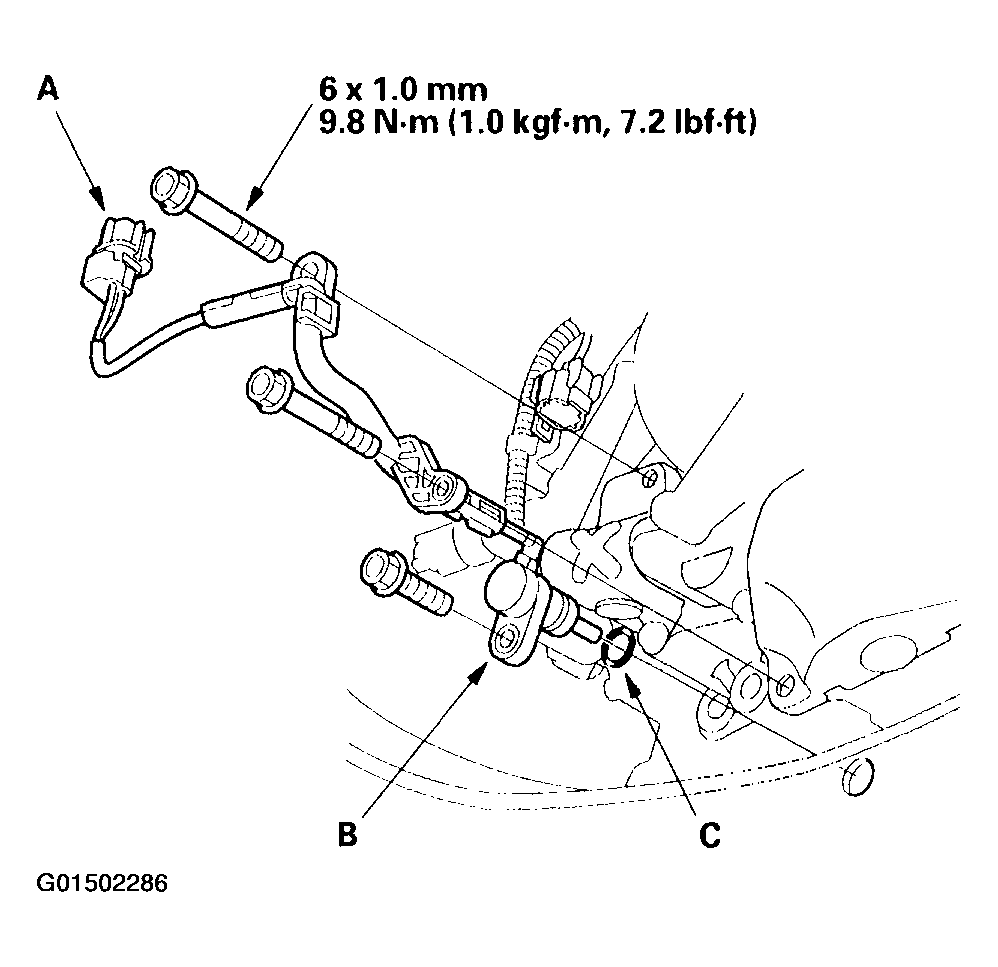

    Fig 3: Removing & Installing ATF Temperature Sensor
    G01502286Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the bolts securing the sensor harness clamp and ATF temperature sensor, then remove the ATF temperature sensor (B).
  6. Install the new ATF temperature sensor with a new O-ring (C).
  7. Install the harness clamp, then connect the connector.
  8. Install the transmission lower front mount.
  9. Lower the transmission, then install the transmission lower mount nuts.
  10. Remove the transmission jack.
