Transmission Range Switch Test

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission range switch connector (A) from the connector bracket (B), then disconnect the connector.
  2. Check for continuity between the terminals in each switch position according to the table.
    NOTE: Terminal No. 1: Neutral position switch.

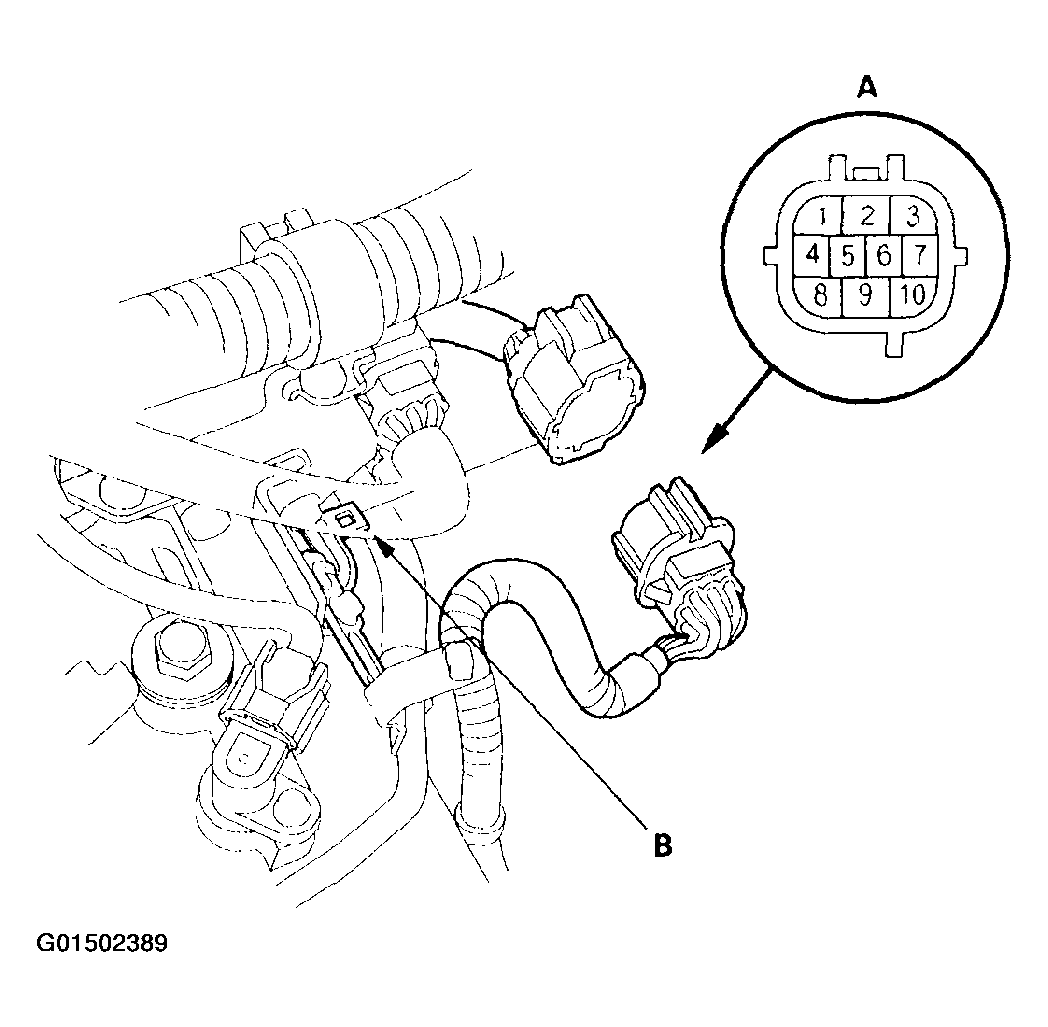

Fig 1: Locating Transmission Range Switch Connector
G01502389Courtesy of AMERICAN HONDA MOTOR CO., INC.

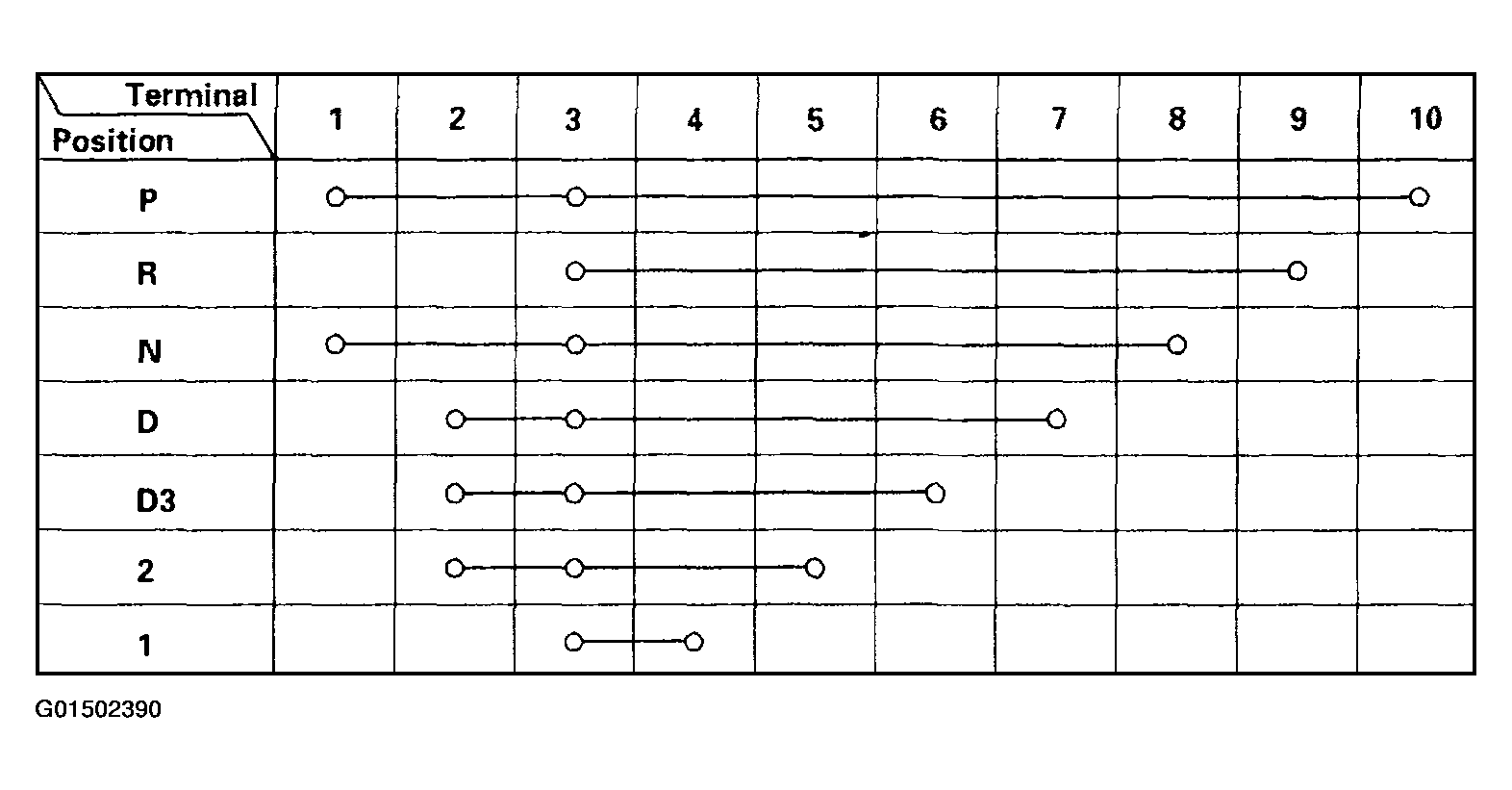

Fig 2: Transmission Range Switch Continuity Check Table
G01502390Courtesy of AMERICAN HONDA MOTOR CO., INC.
