Transmission Range Switch Replacement

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle, and make sure it is securely supported.
  2. Shift to the N position.
  3. Remove the transmission range switch connector (A) from the connector bracket (B), then disconnect the connector.

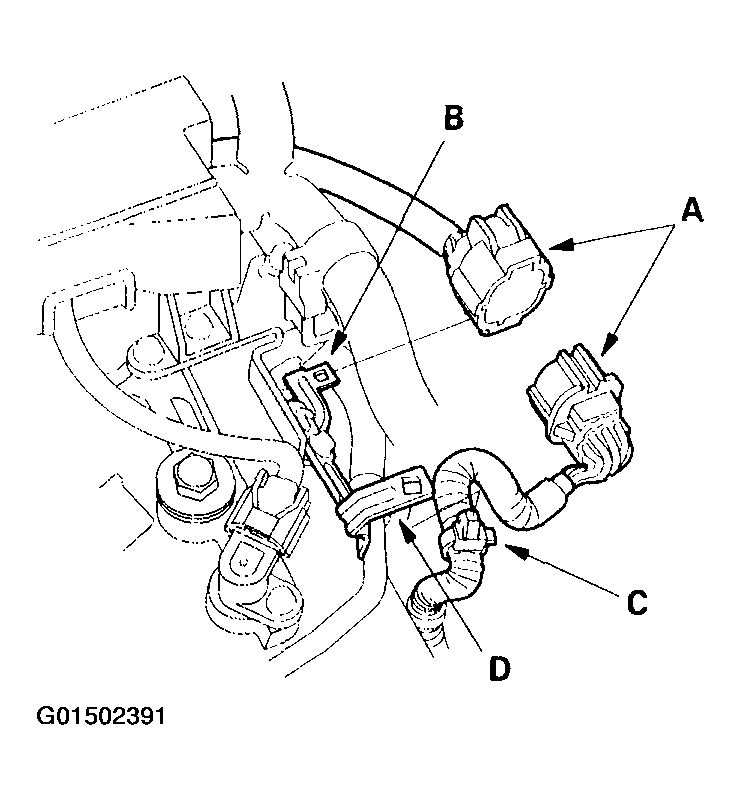

    Fig 1: Locating Transmission Range Switch
    G01502391Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the harness clamp (C) from its bracket (D).
  5. Remove the clamp from the clamp bracket on the transmission housing, and remove the harness holder (A) from the end cover (B).

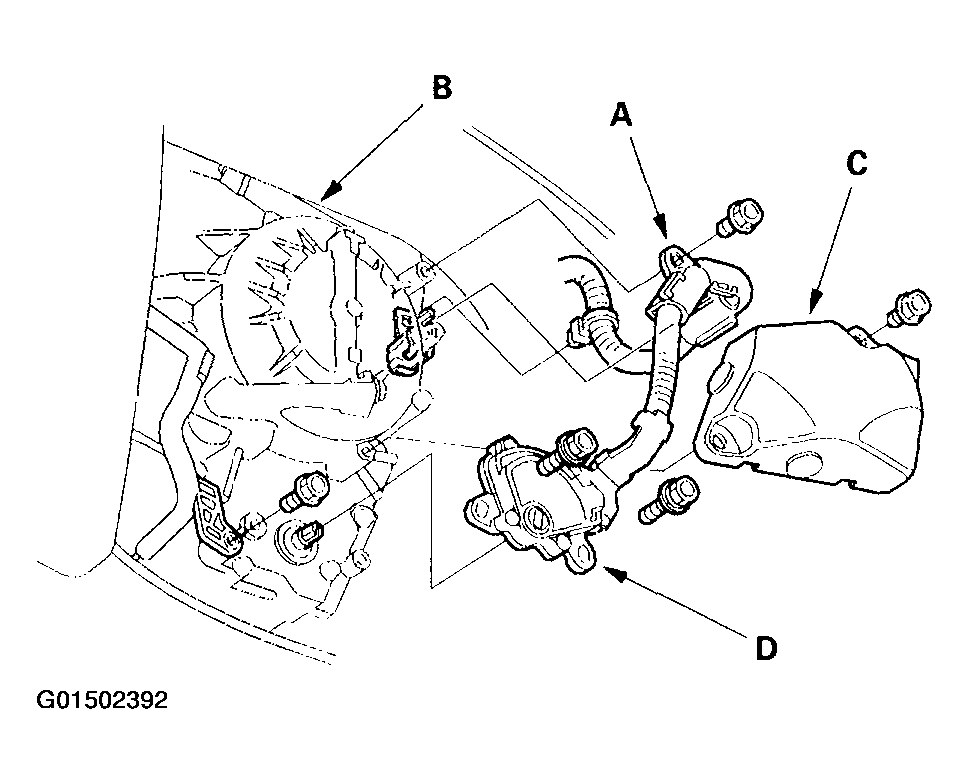

    Fig 2: Identifying Transmission Range Switch Components
    G01502392Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the transmission range switch cover (C), then remove the transmission range switch (D) from the end cover.
  7. Set the new transmission range switch to the N position.
    NOTE: The transmission range switch clicks in the N position.

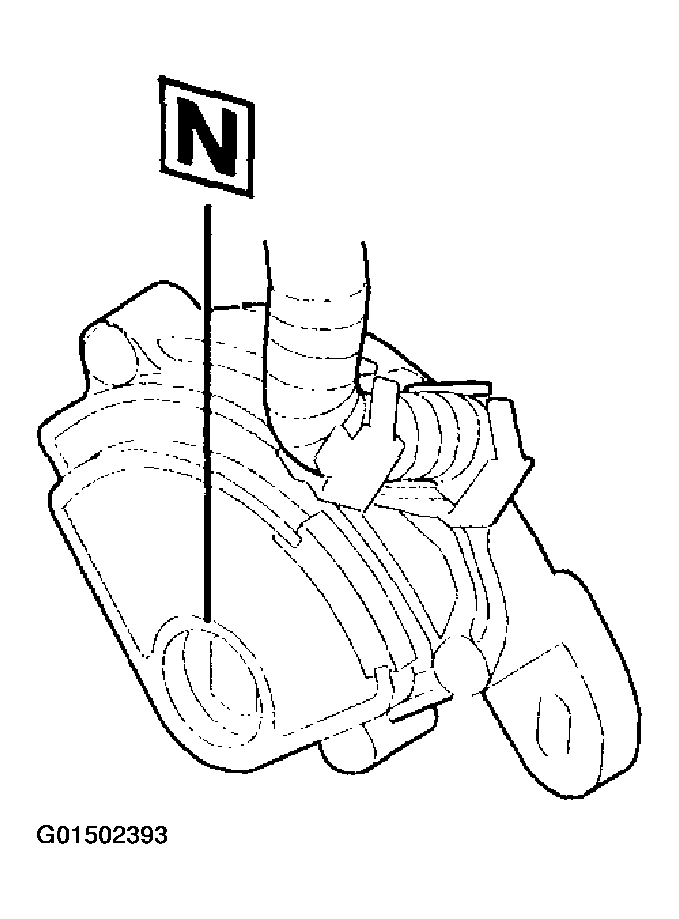

    Fig 3: Locating Transmission Range Switch N Position
    G01502393Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the transmission range switch (A) on the control shaft (B), then secure it with the bolts.
    NOTE: Do not move the transmission range switch when tightening the bolts.

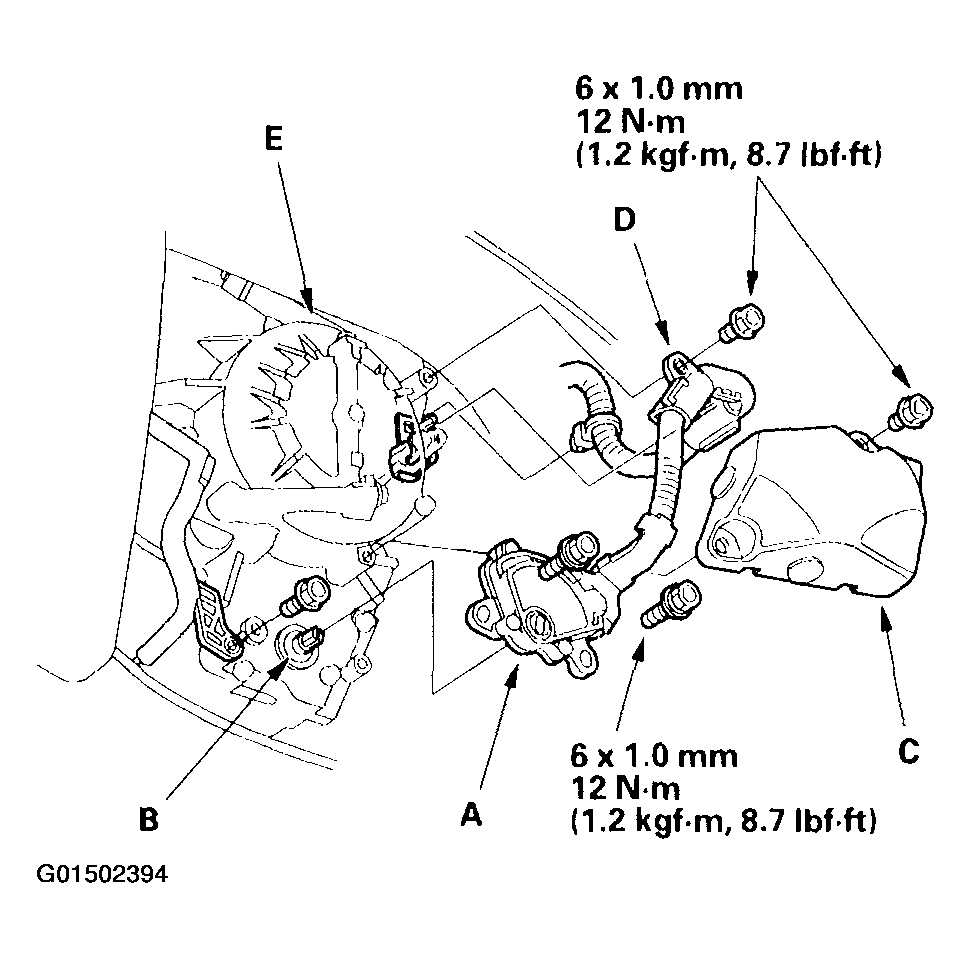

    Fig 4: Installing Transmission Range Switch
    G01502394Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the transmission range switch cover (C), and the harness holder (D) on the end cover (E).
  10. Connect the transmission range switch connector (A), then install it on the connector bracket (B).

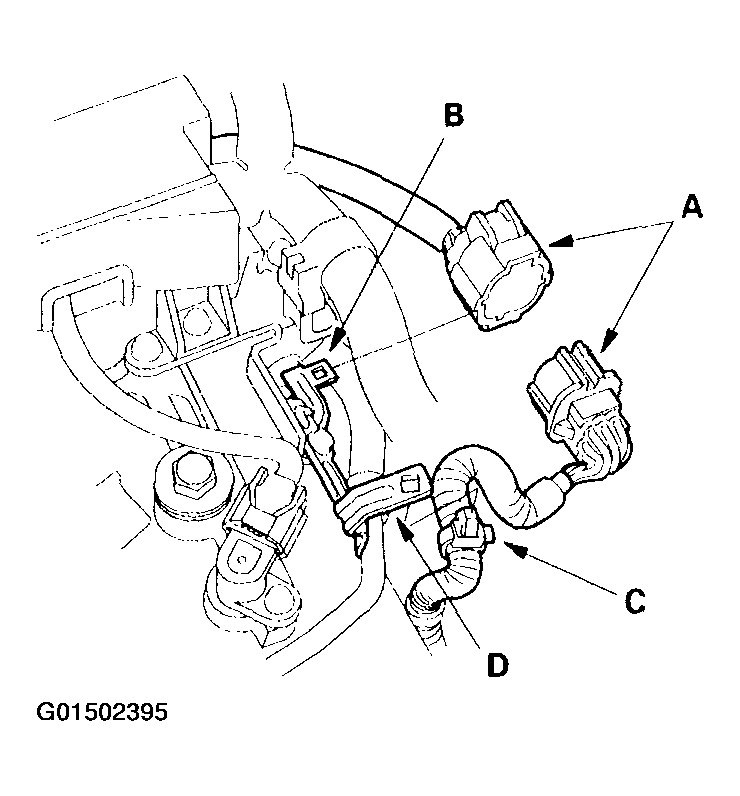

    Fig 5: Connecting Transmission Range Switch Connector
    G01502395Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the harness clamp (C) on its bracket (D).
  12. Turn the ignition switch ON (II). Move the shift lever through all gears, and check the transmission range switch synchronization with the A/T gear position indicator.

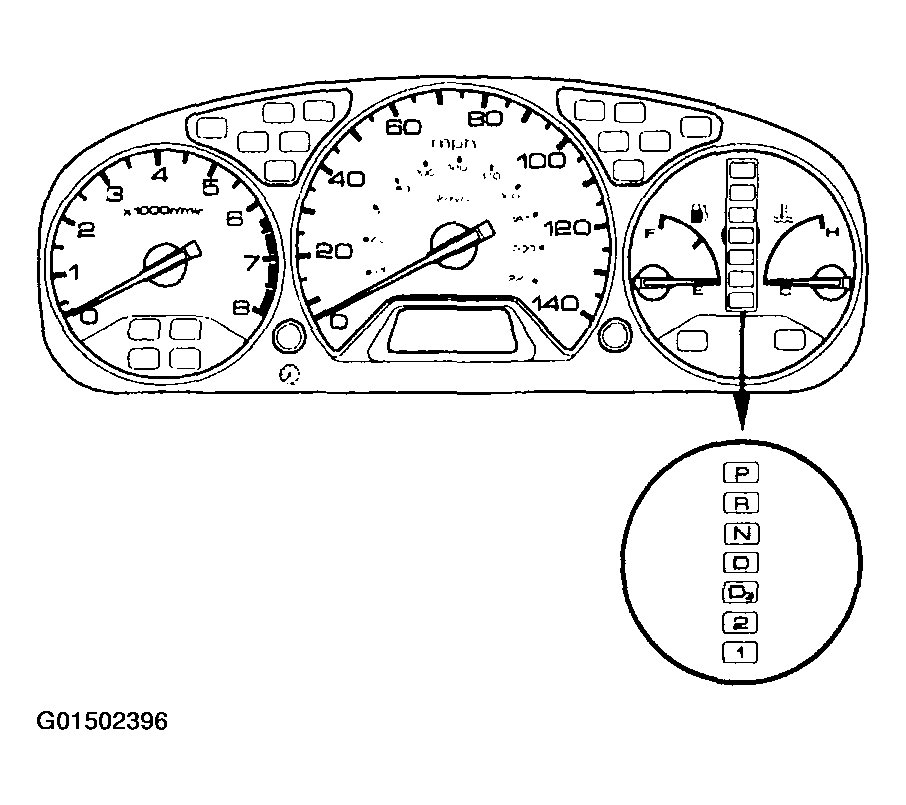

    Fig 6: Location Of A/T Gear Position Indicator
    G01502396Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Allow the wheels to rotate freely, then start the engine.
  14. Move the shift lever through all gears, and verify the following:
    • The engine will not start in any position other than N or P.
    • The back-up lights come on when the shift lever is in the R position.
