Circuit Diagram

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

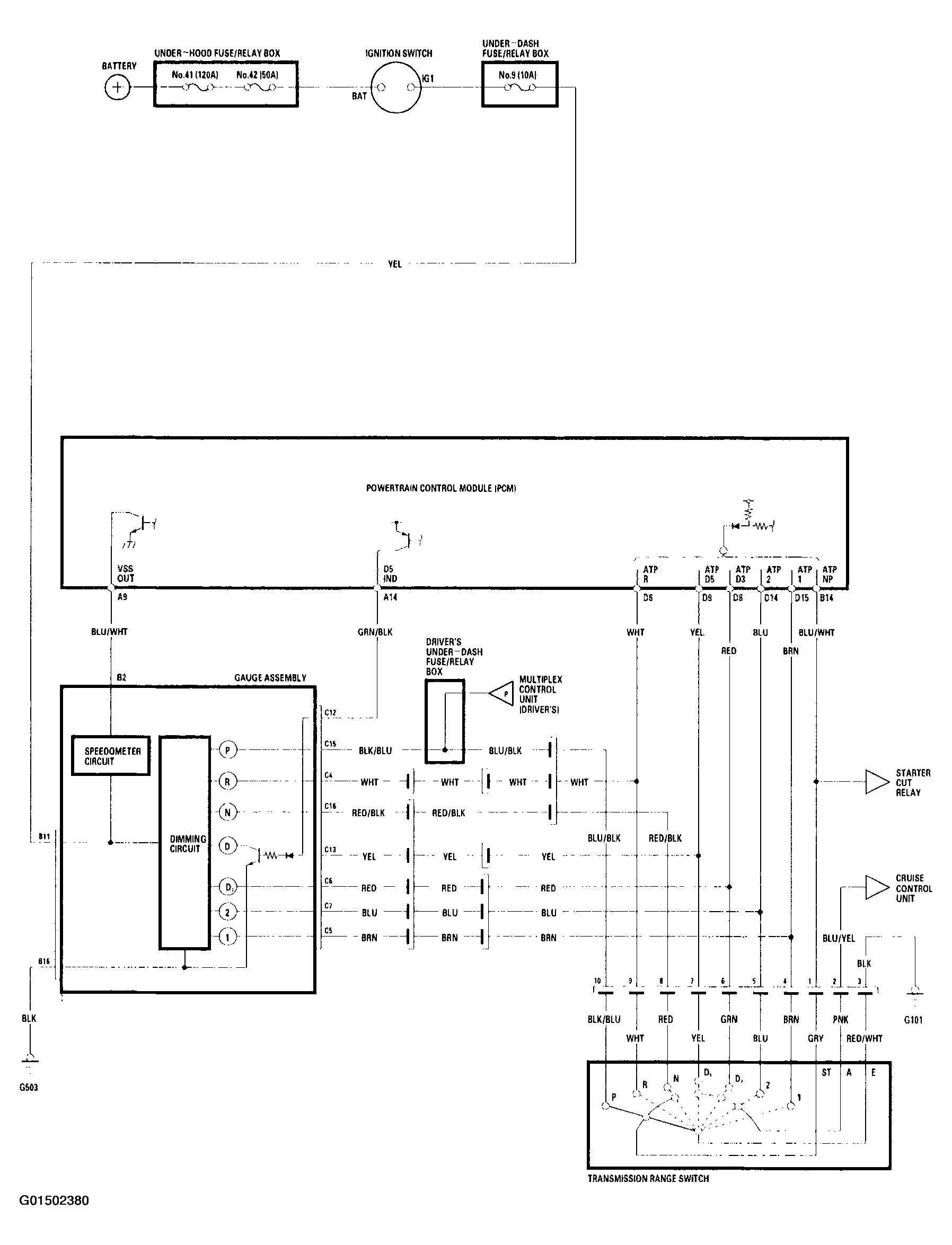

Fig 1: A/T Gear Position Indicator Circuit Diagram
G01502380Courtesy of AMERICAN HONDA MOTOR CO., INC.
