A/T Clutch Pressure Control Solenoid Valve C Replacement

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the connector from A/T clutch pressure control solenoid valve C.
  2. Remove A/T clutch pressure control solenoid valve C (A).

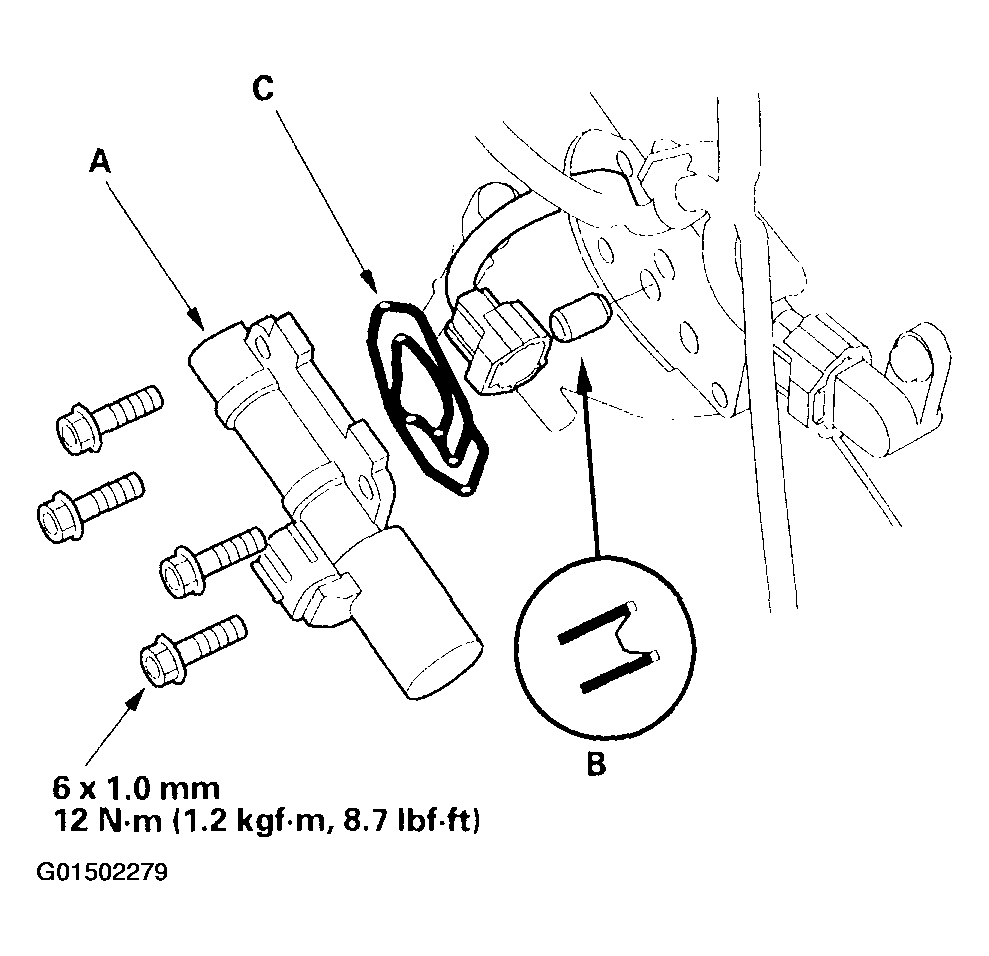

    Fig 1: Removing & Installing A/T Clutch Pressure Control Solenoid Valve C
    G01502279Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Clean the mounting surface and fluid passage of A/T clutch pressure control solenoid valve C and the transmission housing.
  4. Install the 8 x 12 mm ATF feed pipe (B) with its filter side into the transmission housing.
  5. Install the new gasket (C) in the mounting groove of A/T clutch pressure control solenoid valve C body properly, then install them on transmission housing. Do not pinch the gasket.
  6. Check the solenoid connector for rust, dirt, or oil, and connect it securely.
