A/T Clutch Pressure Control Solenoid Valve A and B Replacement

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the harness cover from the transmission hanger.
  2. Remove the mounting bolts and A/T clutch pressure control solenoid valves A and B (A).

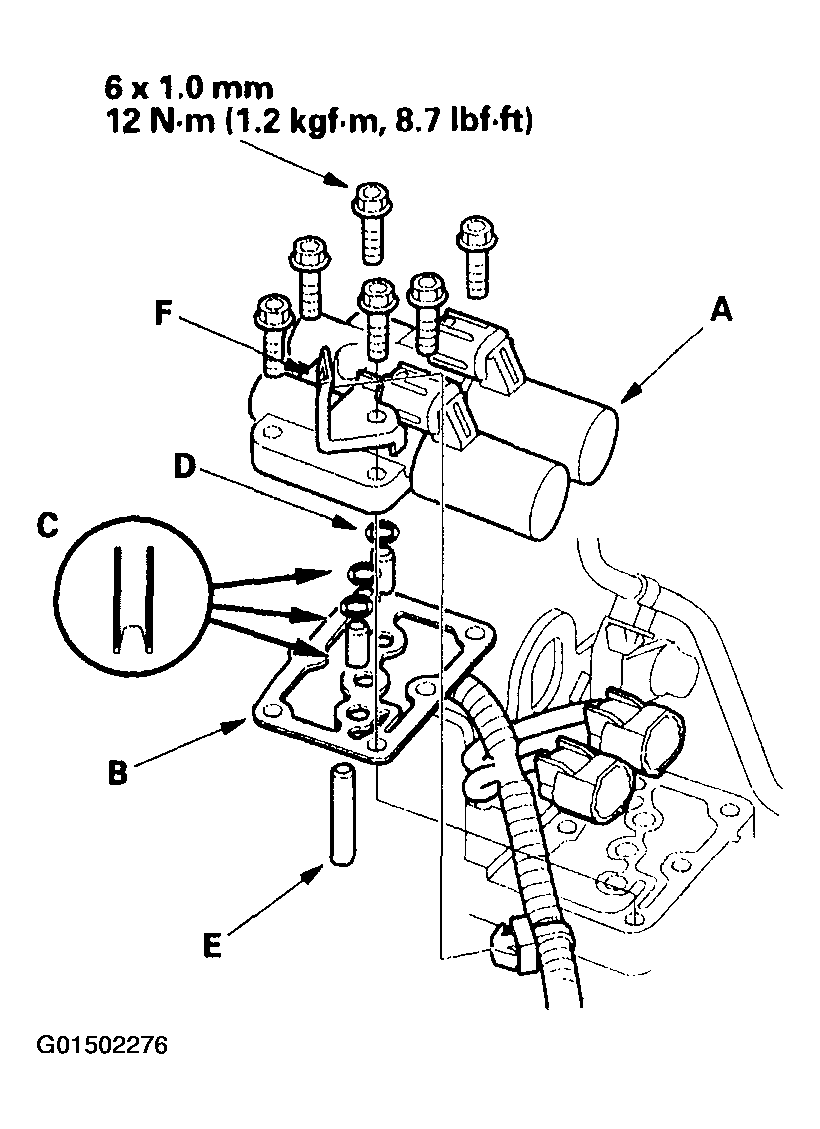

    Fig 1: Removing & Installing A/T Clutch Pressure Control Solenoid Valves A & B
    G01502276Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Clean the mounting surface and fluid passages of A/T clutch pressure control solenoid valves A and B, and the transmission housing.
  4. Place a new gasket (B) on the transmission housing, then install the 8 X 18 mm ATF feed pipes (C) with their filter sides into the transmission housing.
  5. Install new O-rings (D) over the feed pipes, and install the 8 X 40 mm ATF feed pipe (E).
  6. Install new A/T clutch pressure control solenoid valves A and B (A) and harness clamp bracket (F).
  7. Check the A/T clutch pressure control solenoid valve connectors for rust, dirt, or oil, then connect them securely.
  8. Install the harness cover on the transmission hanger.
