Cylinder Head Cover Removal

Remove the engine cover.
Relieve fuel pressure:
- 2000-2003 models (see 2000-2003 MODELS )
- 2004-2005 models (see 2004-2005 MODELS )
- 2006 model (see 2006 MODEL )
2000-2004 models: Remove the positive crankcase ventilation (PCV) valve (A).

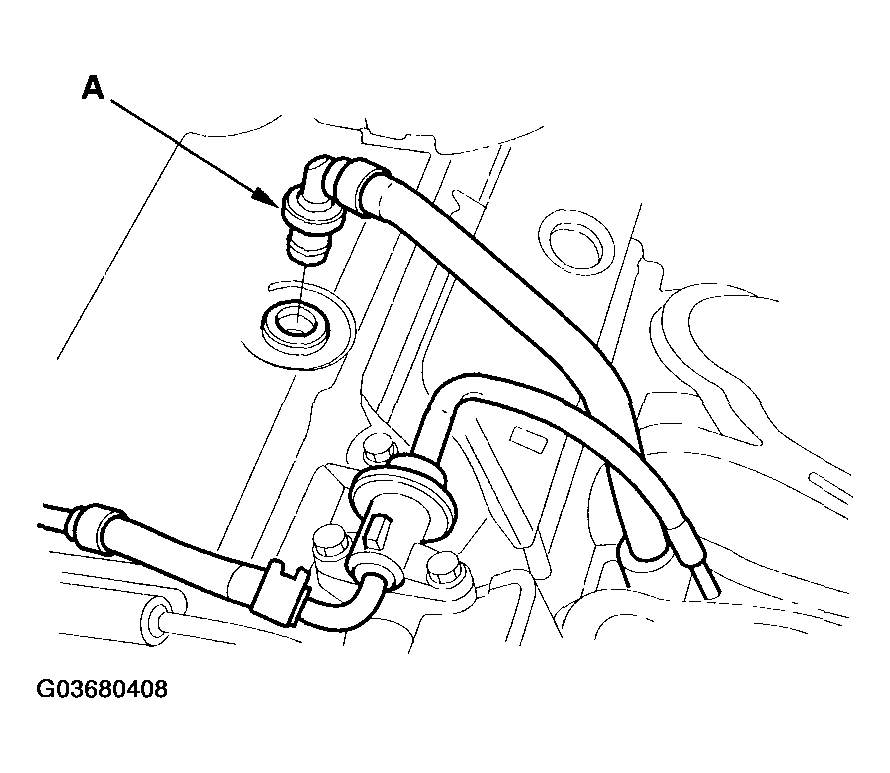

Fig 1: Removing Positive Crankcase Ventilation (PCV) Valve (2000-2004 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
2005-2006 models: Remove the PCV hose (A).

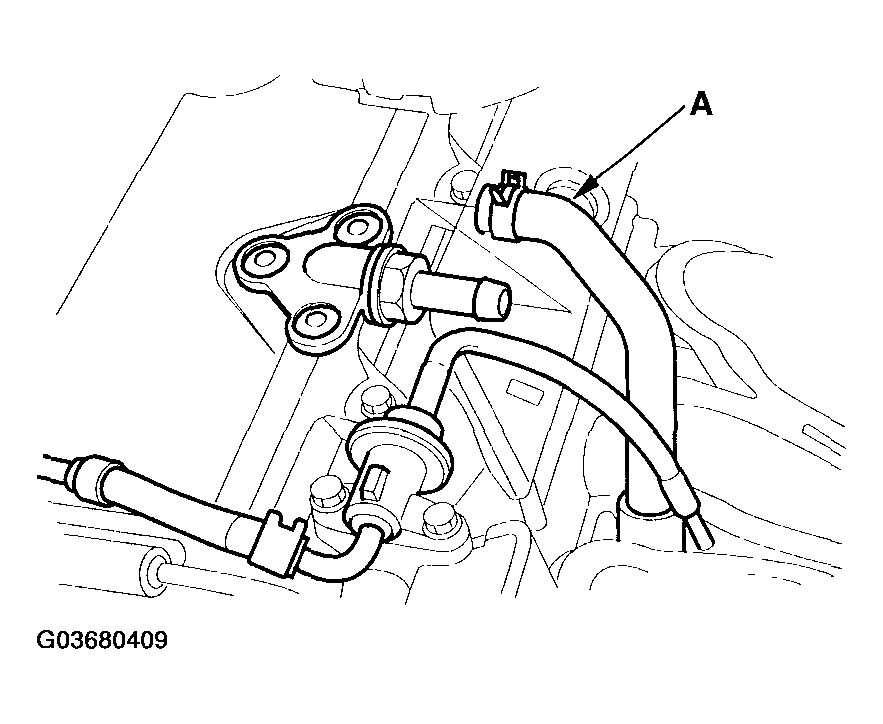

Fig 2: Removing PCV Hose (2005-2006 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
2005-2006 models: Remove the fuel feed hose (A) and the fuel return hose (B). 2006 model: Remove the fuel feed hose (A).
2000-2003 models:

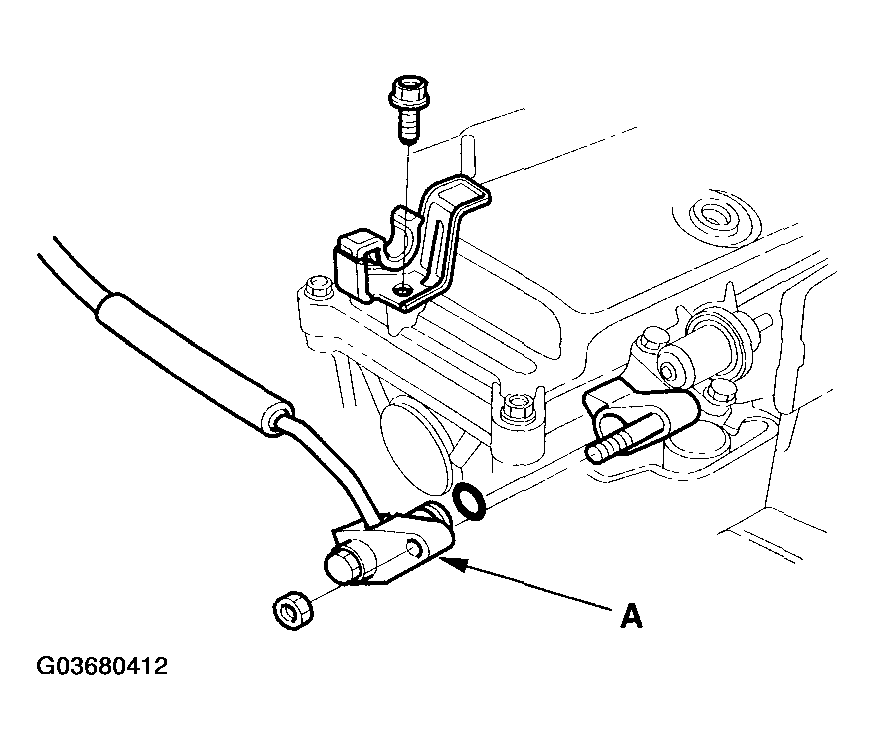

Fig 3: Removing Fuel Feed Hose (2000-2003 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

This illustration shows the M/T model.

2004-2005 models:

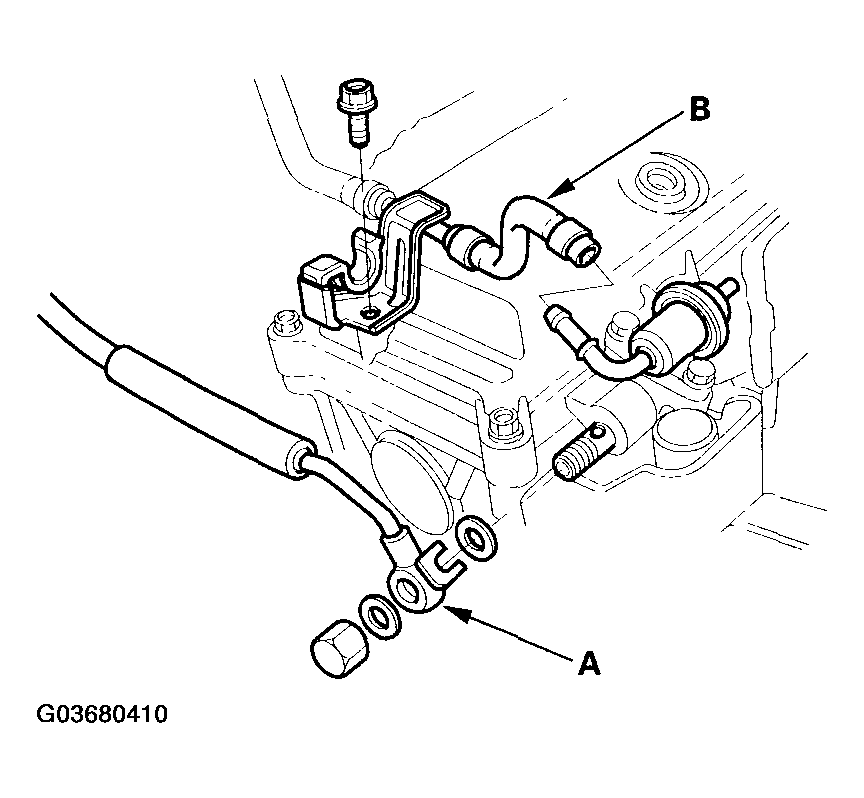

Fig 4: Removing Fuel Feed Hose (2004-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

This illustration shows the M/T model.

2006 model:

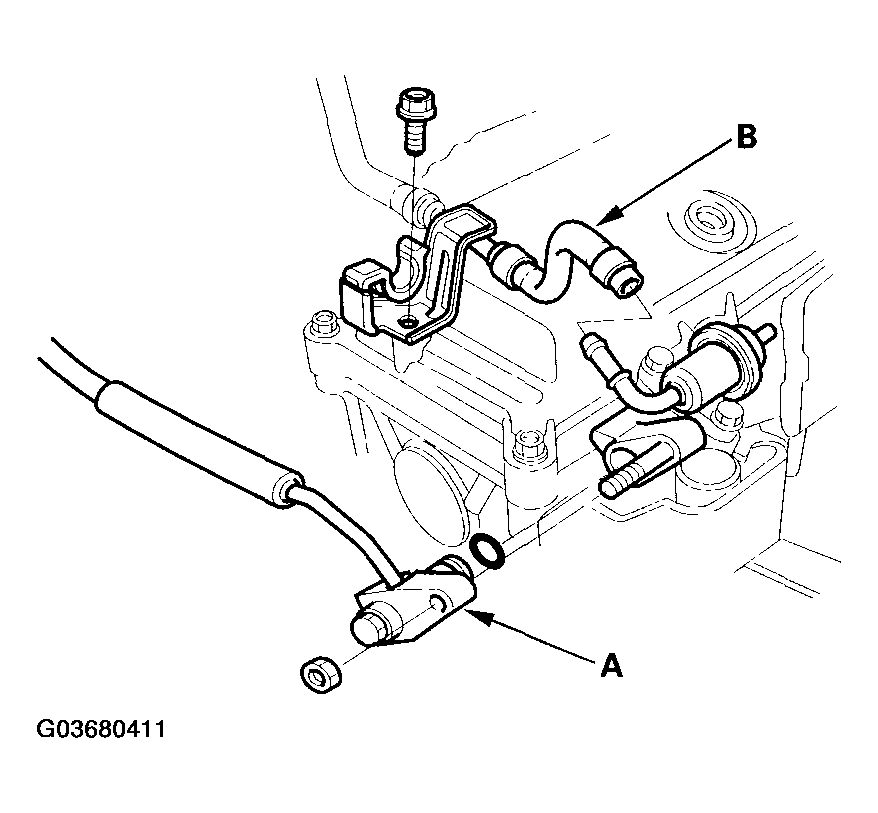

Fig 5: Removing Fuel Feed Hose (2006 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cylinder head cover.

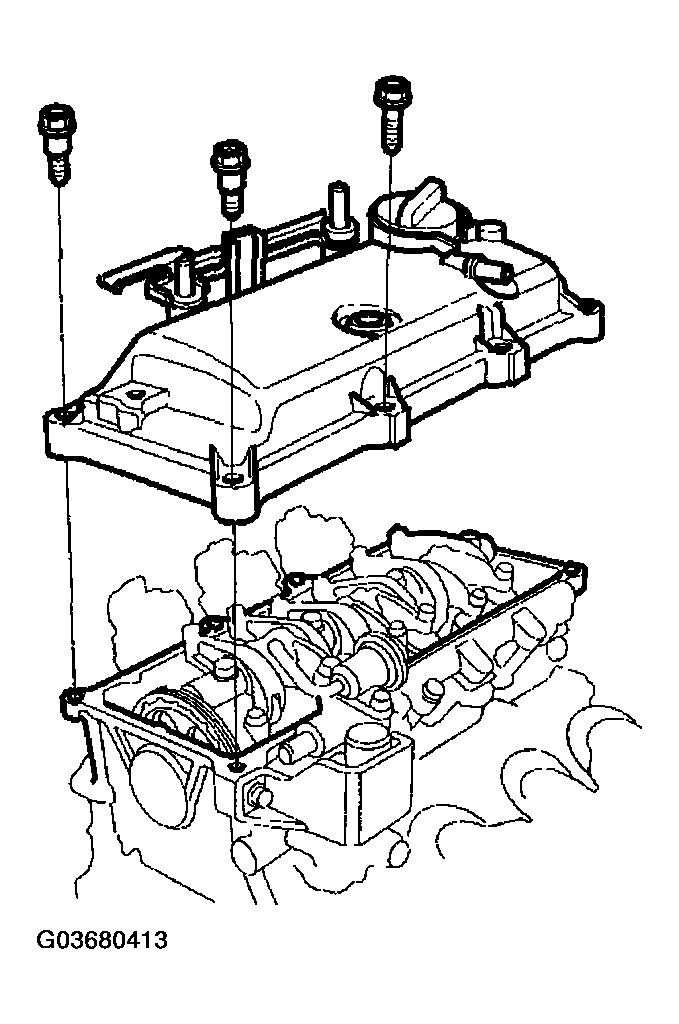

Fig 6: Removing Cylinder Head Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
