Rear Wire Harness

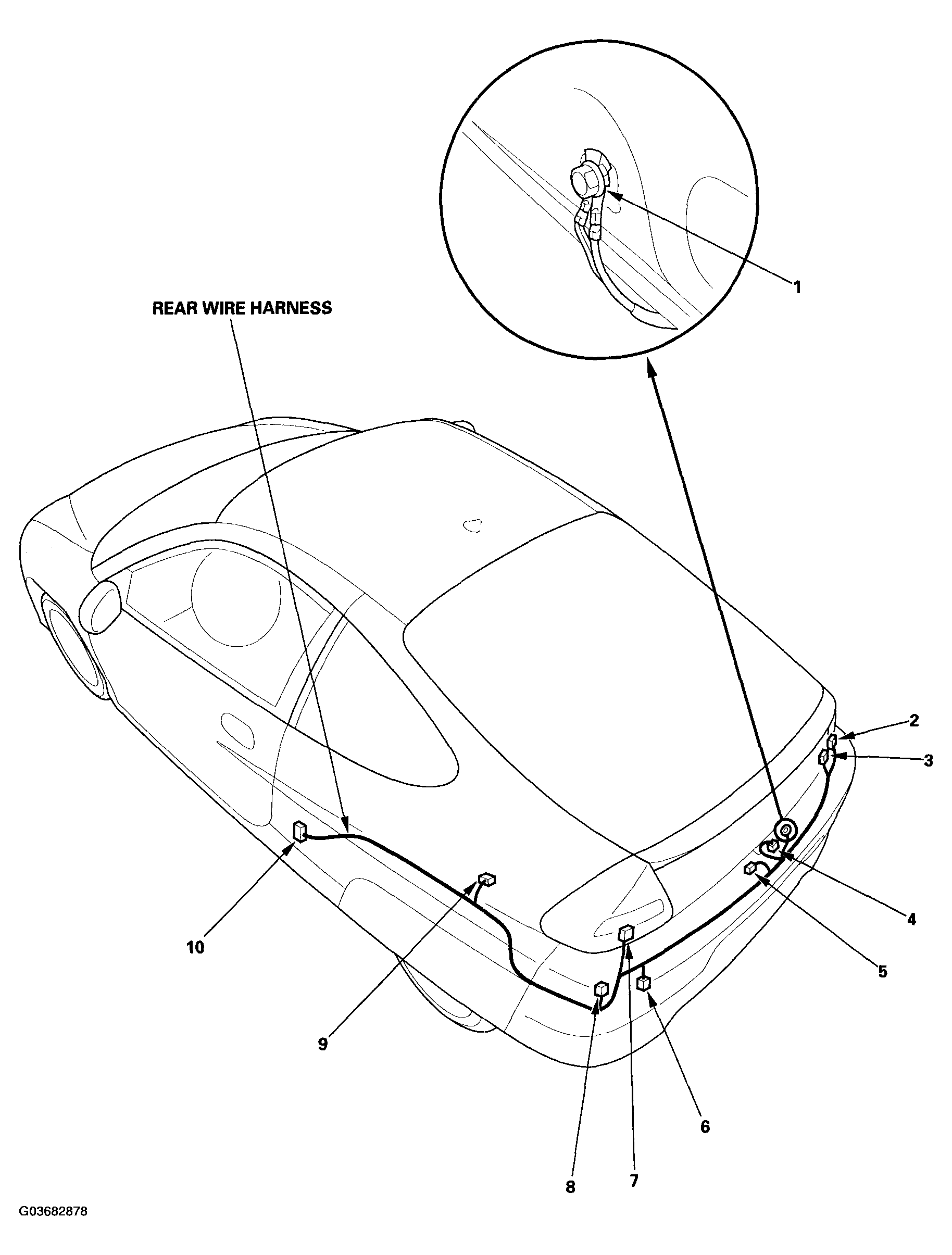

CONNECTOR TO HARNESS INDEX (REAR WIRE HARNESS)
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Cargo area light | 9 | 2 | Left side of cargo area | ||
| Hatch key cylinder switch | 3 | 3 | Right taillight | ||
| Hatch latch (Hatch lock actuator/latch switch/unlock switch) | 4 | 6 | Middle of cargo area | ||
| Hatch opener relay | 8 | 4 | Below left taillight | ||
| Hatch opener actuator | 5 | 2 | Middle of cargo area | ||
| Left taillight | 7 | 5 | Left taillight | ||
| License plate light | 6 | 2 | Below left taillight | ||
| Right taillight | 2 | 5 | Right taillight | ||
| C601 | 10 | 14 | Left side of floor | Floor wire harness (see FLOOR WIRE HARNESS ) | |
| G601 | 1 | Middle of cargo area | Body ground via rear wire harness |
