Rear Brake Shoes: Removal

Remove the brake drum. See REAR BRAKE DRUM .

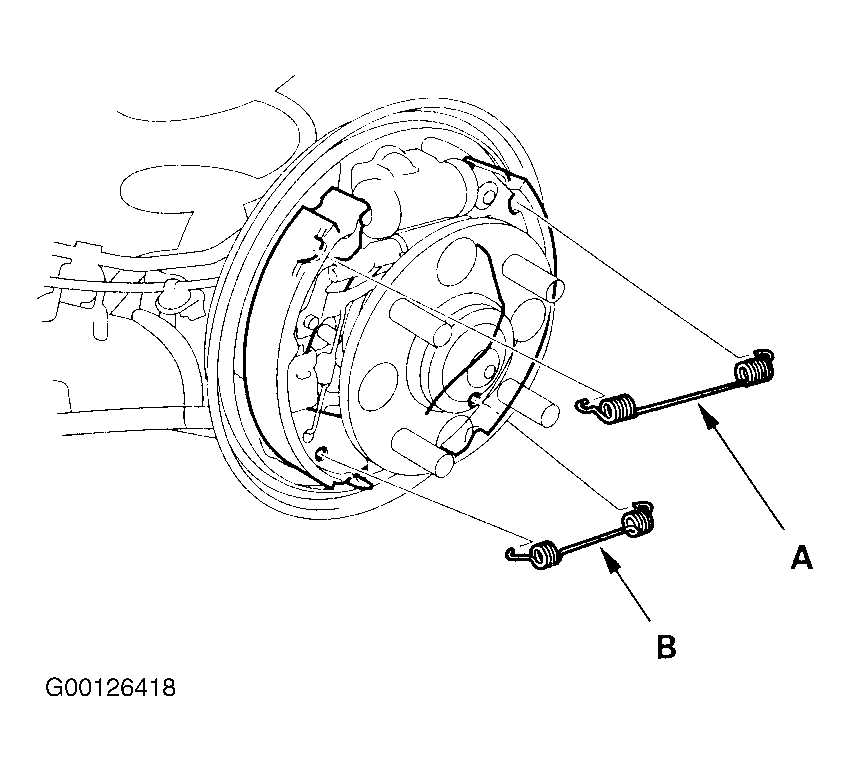

Remove the upper return spring (A) and lower spring (B). See Fig 1 .

Fig 1: Removing Upper & Lower Return Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

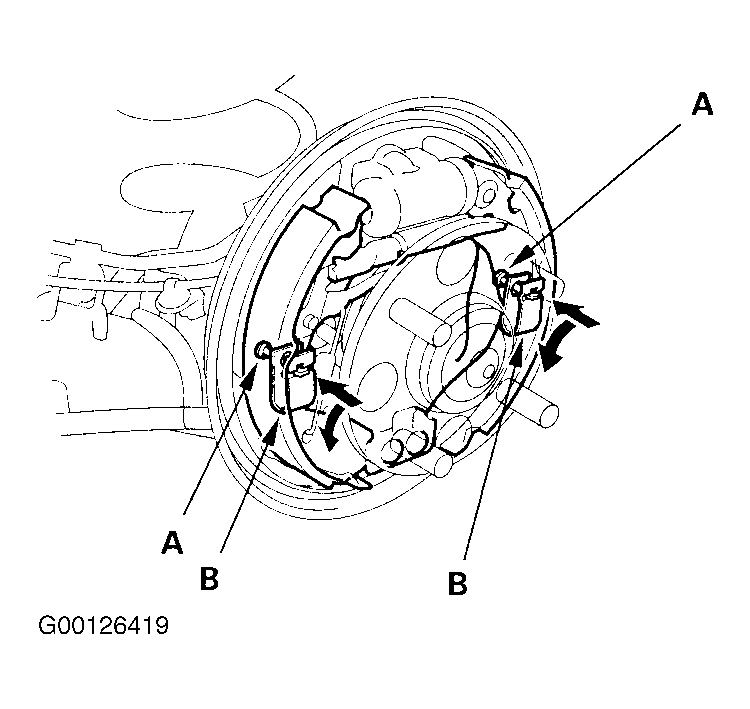

Remove the tension pins (A) by turning them while pushing each retainer spring (B). See Fig 2 .

Fig 2: Removing Tension Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the parking brake cable from the parking brake lever, and remove the brake shoes from the backing plate.

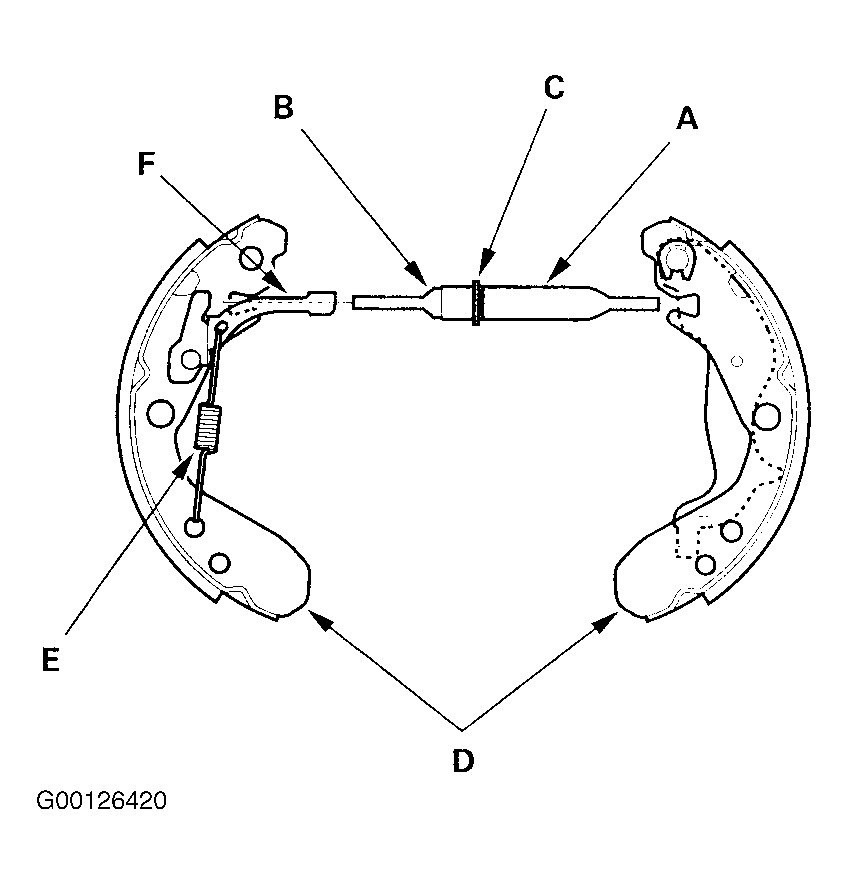

Remove the clevis (A), adjuster bolt (C), and clevis (B), and separate the brake shoes (D). See Fig 3 .
Remove the self-adjuster spring (E) and self-adjuster lever (F). See Fig 3 .

Fig 3: Separating Brake Shoes
Courtesy of AMERICAN HONDA MOTOR CO., INC.

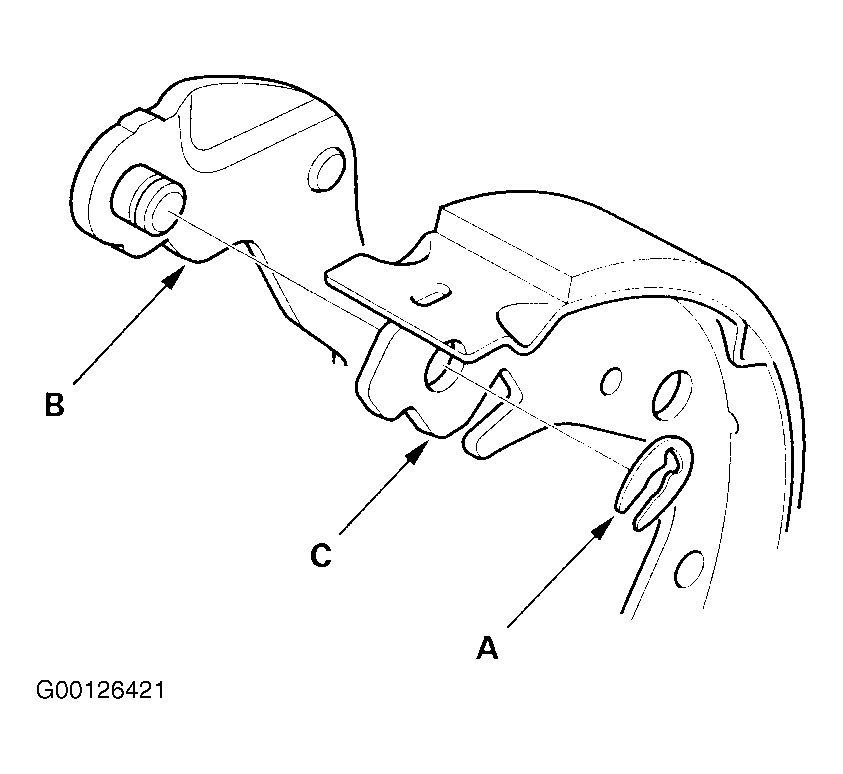

Remove the U-clip (A), and remove the parking brake lever (B) from the rear side shoe (C). See Fig 4 .

Fig 4: Removing U-Clip

Courtesy of AMERICAN HONDA MOTOR CO., INC.
