Rear Brake Drum: Notes

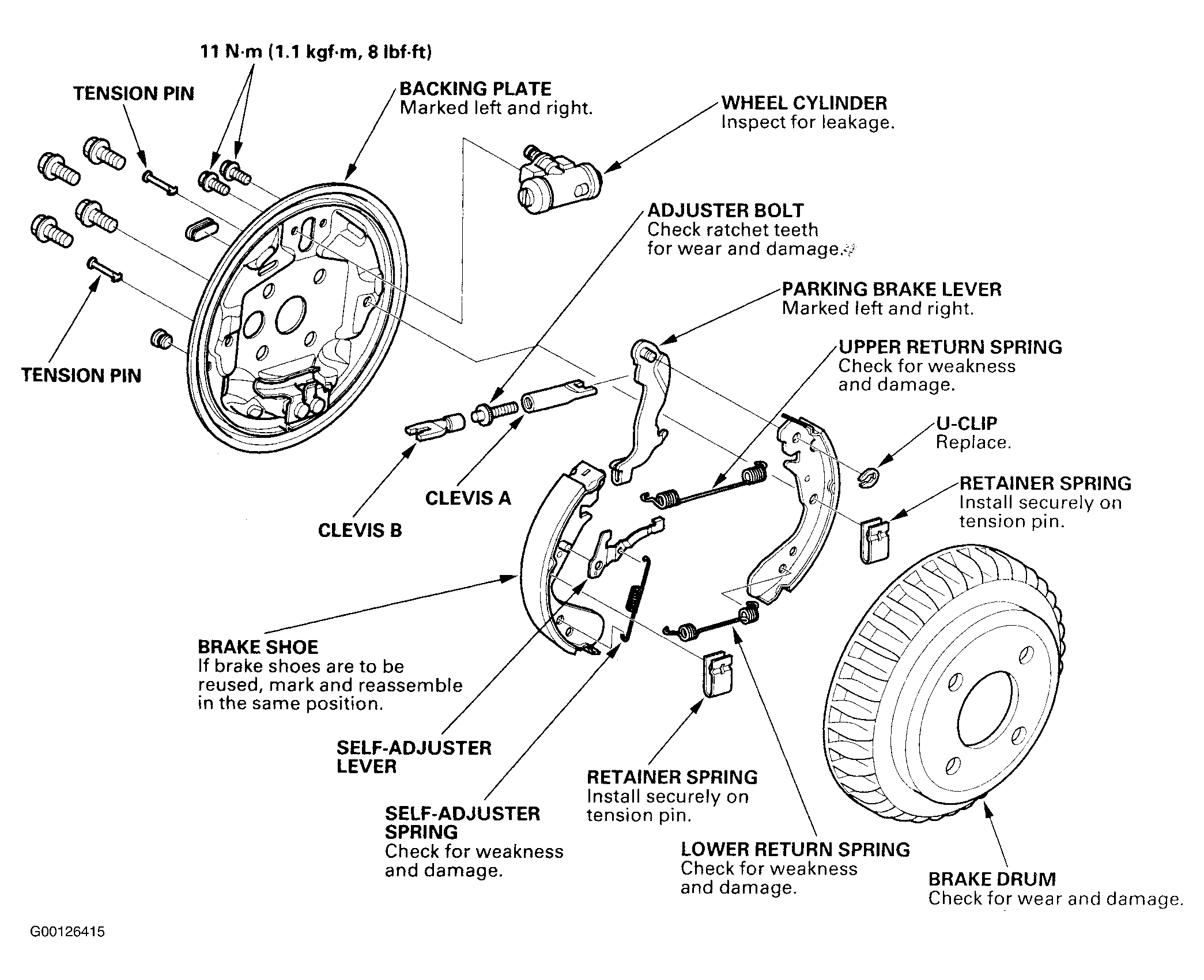

Fig 1: Exploded View Of Rear Brake Components

G00126415

Courtesy of AMERICAN HONDA MOTOR CO., INC.
