Power Brake Booster: Removal

NOTE: Nuts and bolts with the star mark are special corrosion resistant Dacro fasteners. Use the same type if replacement is necessary.

Remove the master cylinder. See MASTER CYLINDER .
Disconnect the battery cables, and remove the battery from the battery box (A). See Fig 1 .

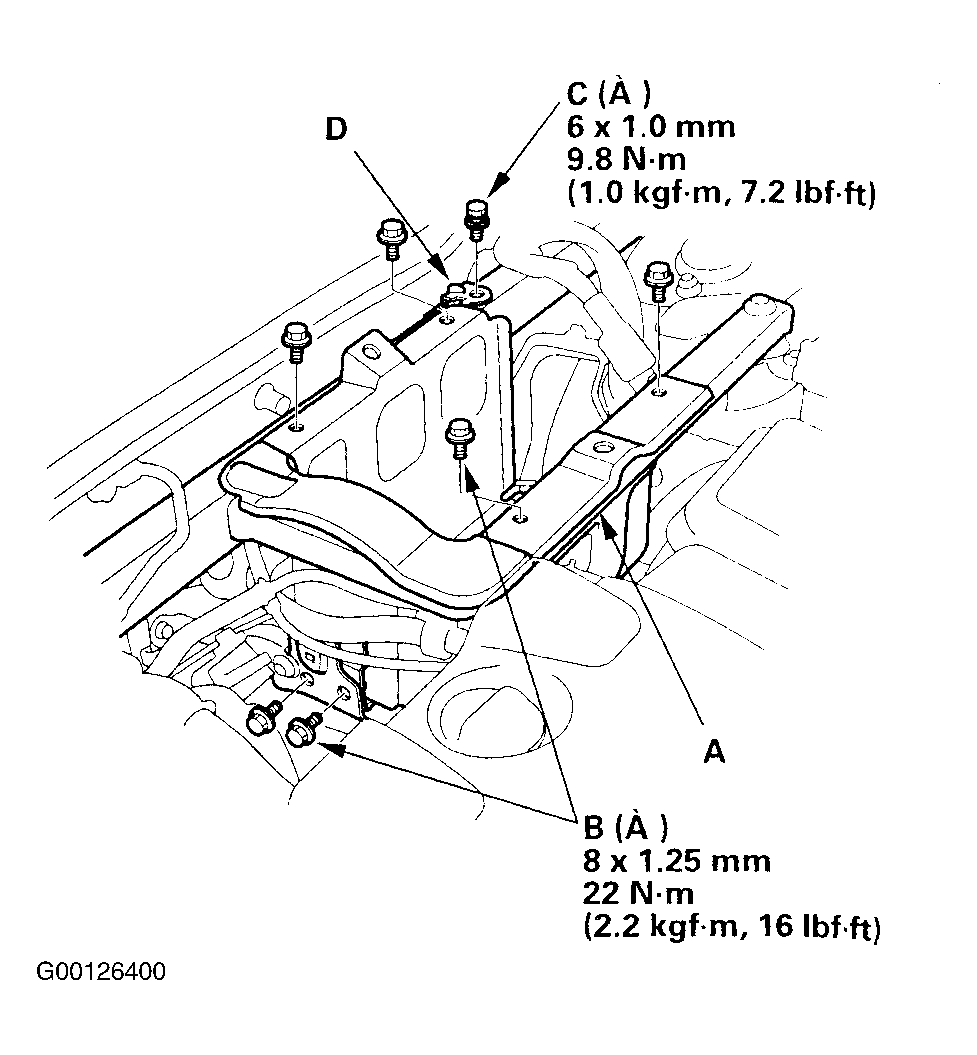

Fig 1: Removing Battery Tray
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the 6 bolts (B) and the battery box. See Fig 1 .
Remove the two 6 mm flange bolts (A), and detach the fuel pipe/hose (B) from the battery box bracket (C). See Fig 2 .

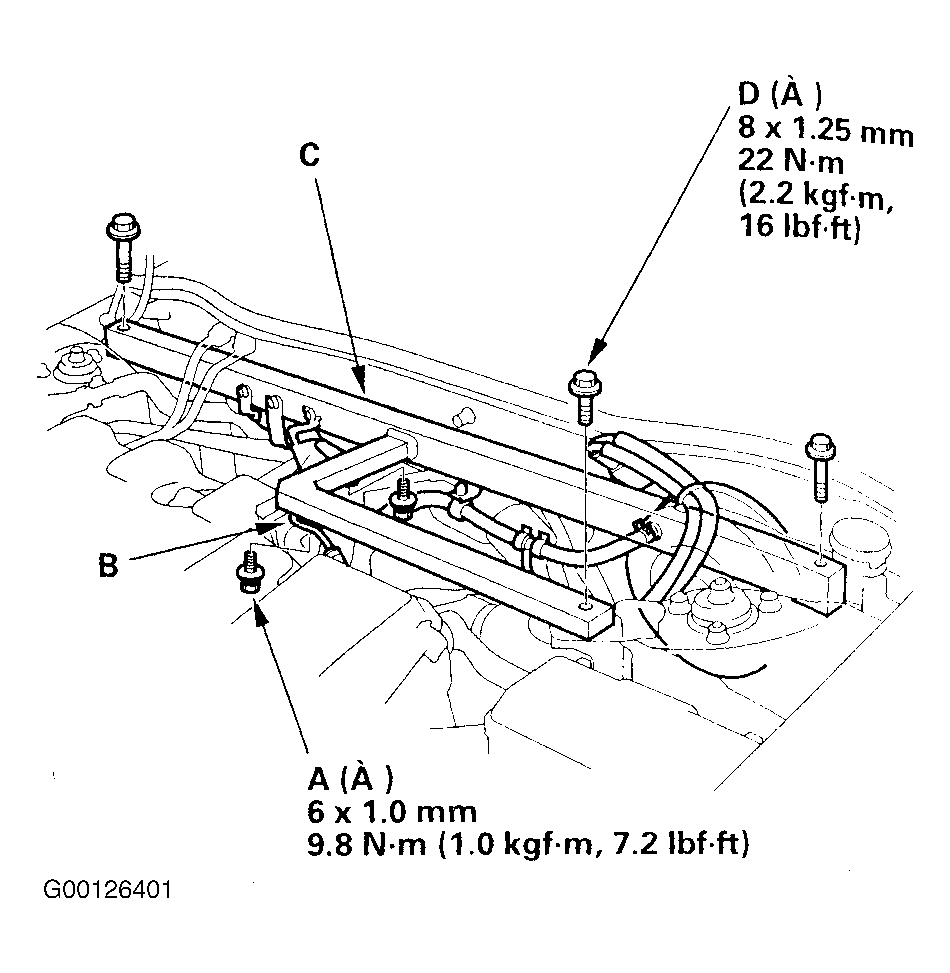

Fig 2: Disconnecting Fuel Pipe Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the flange bolts (D). See Fig 2 .
Remove the clip (A) and the joint pin (B) in the passenger compartment. See Fig 3 .

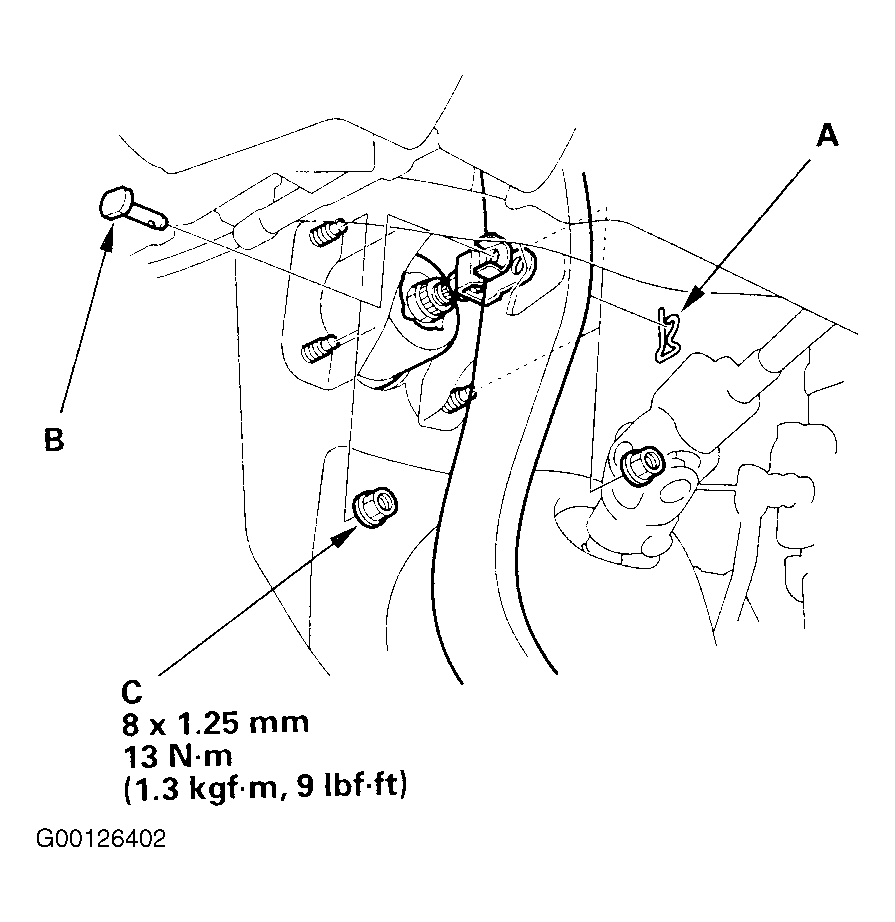

Fig 3: Removing Clip & Joint Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake booster mounting flange nuts (C). See Fig 3 .
Raise the front of the battery box bracket (A), and pull out the brake booster (B) from the engine compartment. See Fig 4 .

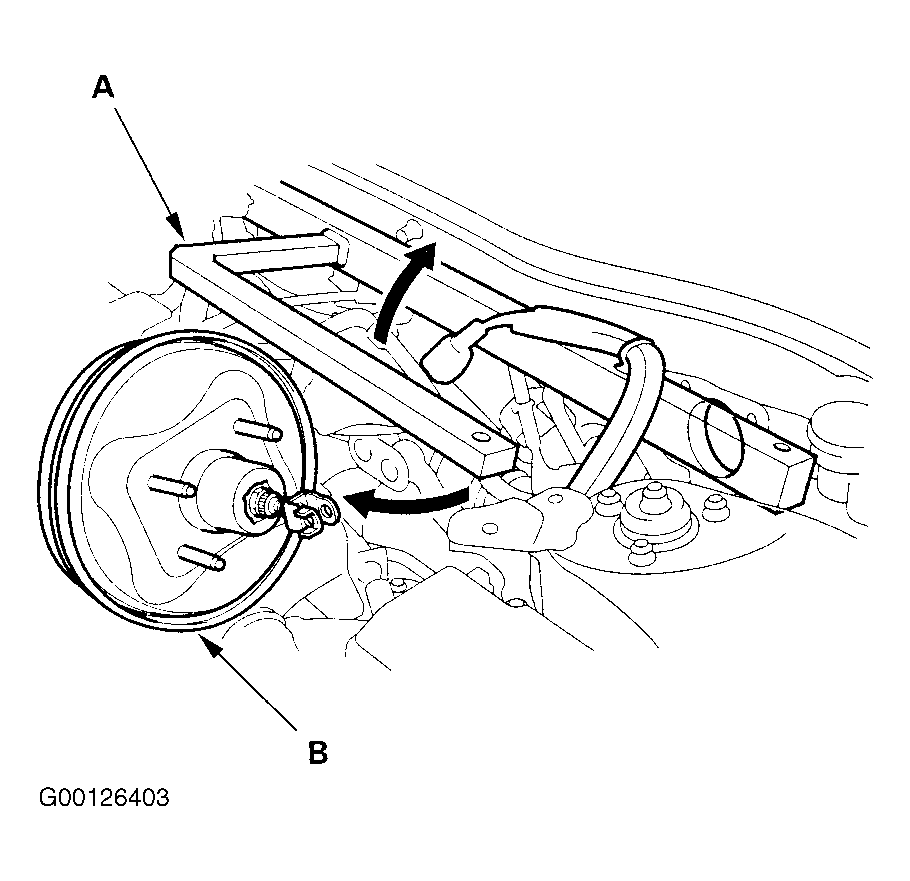

Fig 4: Removing Brake Booster
Courtesy of AMERICAN HONDA MOTOR CO., INC.
