Master Cylinder: Inspection

Before reassembling, check that all parts are free of dust and foreign particles. Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part if necessary. Do not allow dirt or foreign matter to contaminate the brake fluid.

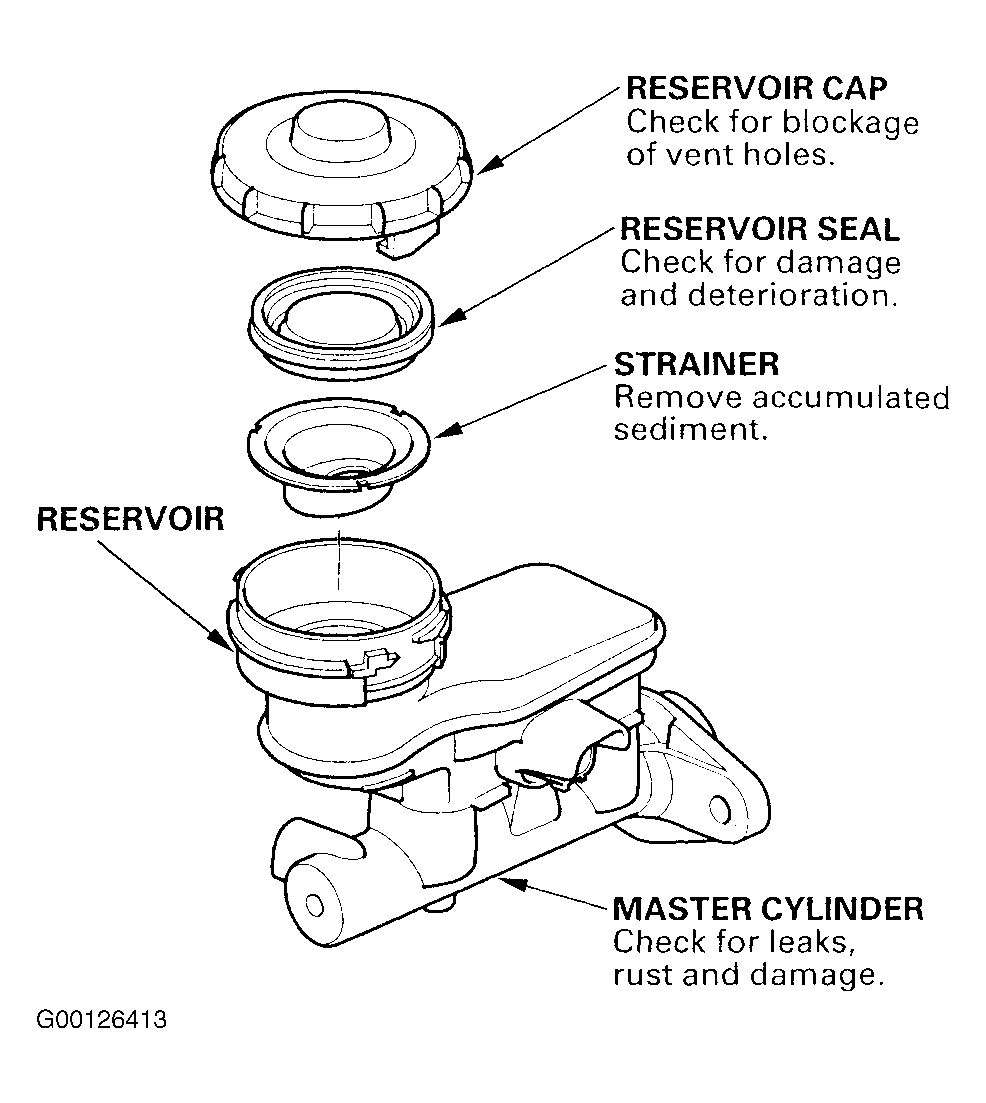

Fig 1: Inspecting Master Cylinder
G00126413Courtesy of AMERICAN HONDA MOTOR CO., INC.
