Front Disc Brake Pads: Removal

Remove the brake hose bracket mounting bolts (A) from the damper. See Fig 1 .

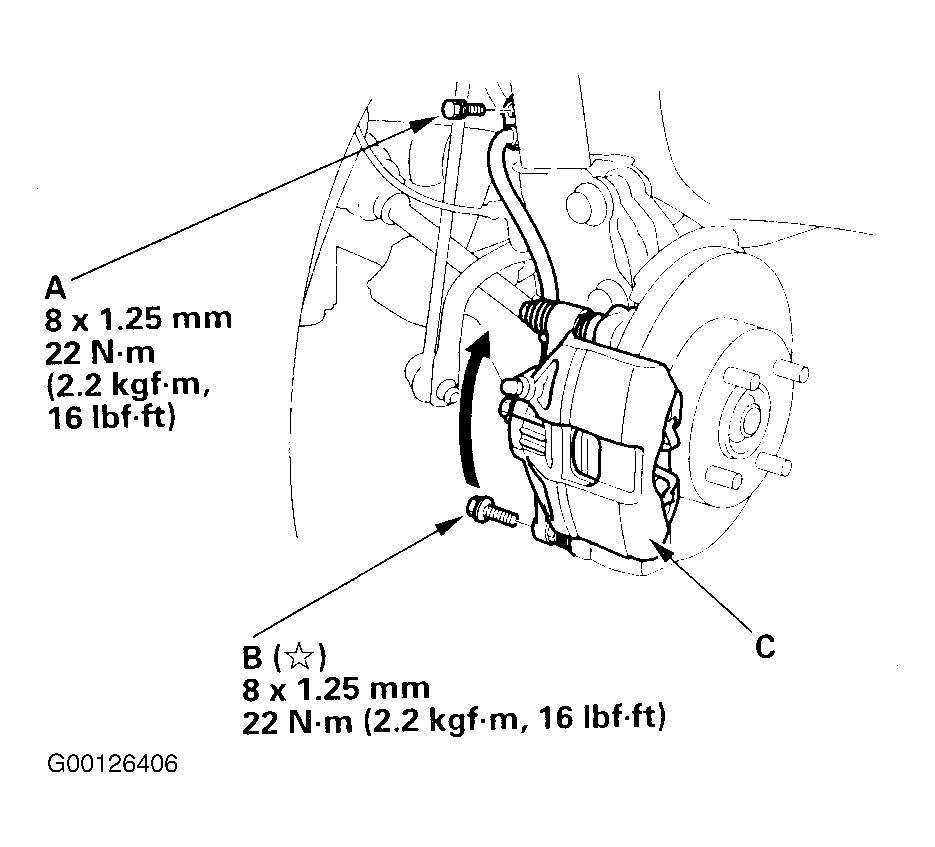

Fig 1: Removing Brake Hose Bracket Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt (B) and pivot the caliper (C) up out of the way. Check the hose, pin boot, and sleeve boots for damage and deterioration. See Fig 1 .

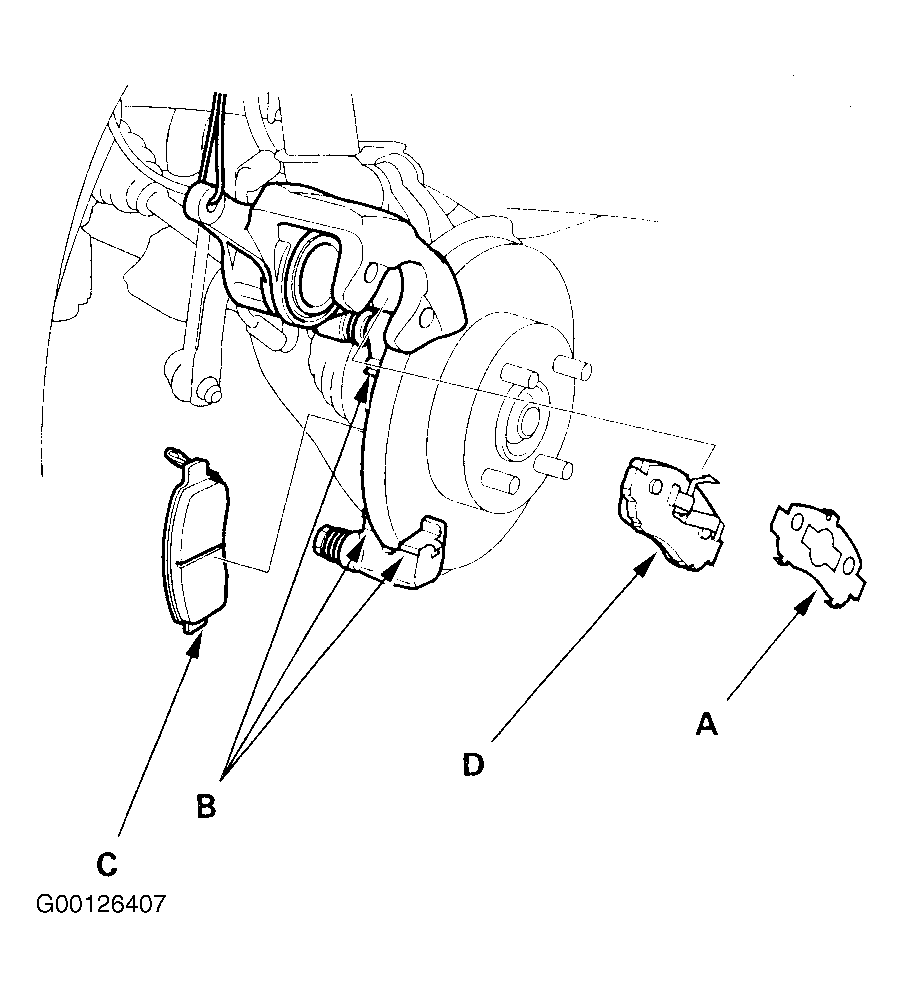

Fig 2: Removing Front Brake Pads
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the pad shim (A), pad retainers (B), and inner (C) and outer (D) pad. See Fig 2 .
Clean the caliper thoroughly; The caliper is aluminum check for cracks.
Check the brake disc for damage and cracks.
