Front Disc Brake Pads: Inspection

NOTE: Nuts and bolts with the star mark are special corrosion resistant Dacro fasteners. Use the same type if replacement is necessary.

Raise the front of the vehicle, and make sure it is securely supported. Remove the front wheels.
Check the thickness of the inner pad (A) and outer pad (B). Do not include the thickness of the backing plate. See Fig 1 .

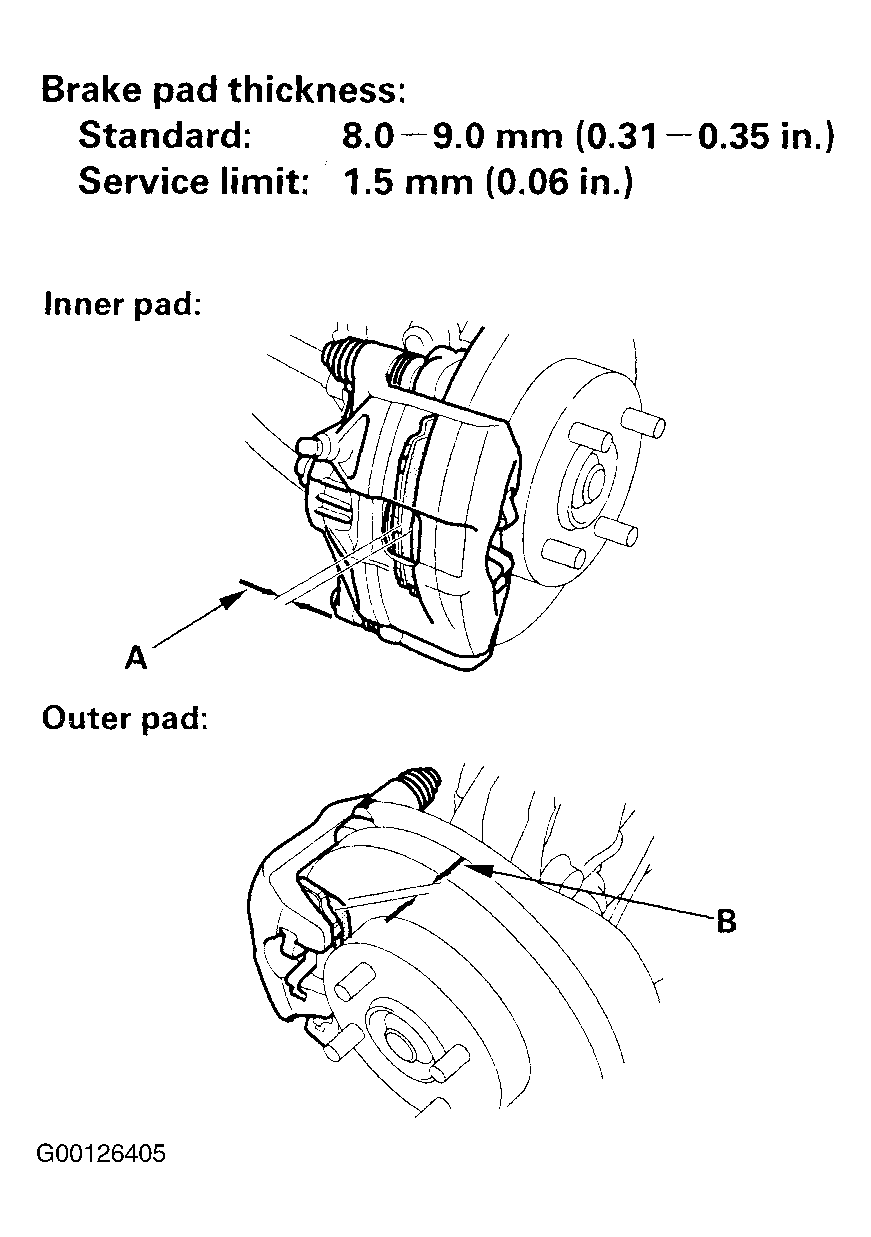

Fig 1: Checking Inner & Outer Pad Thickness
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the brake pad thickness is less than the service limit, replace all the pads as a set. See DISC BRAKE SPECIFICATIONS table.
