Brake Hose: Removal

NOTE: Nuts and bolts with the star mark are special corrosion resistant Dacro fasteners, use the same type if replacement is necessary. Replace parts with new ones whenever specified. Do not spill brake fluid on the vehicle, it may damage the paint. If brake fluid does get on the vehicle wash it immediately with water.

Replace the brake hose (A) if the hose is twisted, cracked, or if it leaks. See Fig 1 .
Disconnect the brake hose from the brake line (B) using a 10 mm flare nut wrench (C). See Fig 1 .

Fig 1: Removing Brake Hose & Brake Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the 6 mm flange bolts (A) and 8 mm flange bolt (B), and remove the brake hose brackets from the body and damper. See Fig 2 .
Remove the banjo bolt (C), and remove the brake hose from the caliper. See Fig 2 .

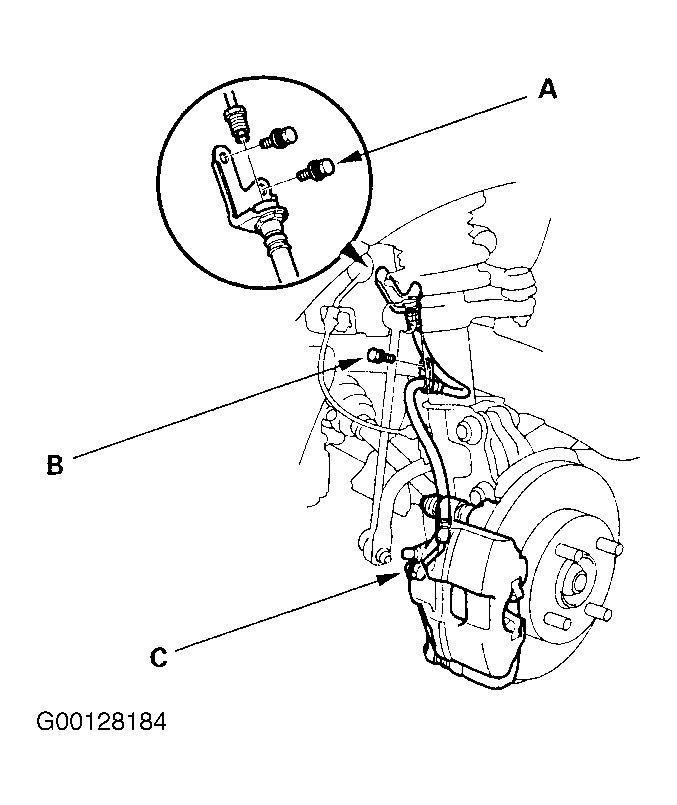

Fig 2: Removing Brake Hose Brackets & Banjo Bolt

Courtesy of AMERICAN HONDA MOTOR CO., INC.
