Brake Hose: Installation

NOTE: Before reassembling, check that all parts are free of dust and other foreign particles.

Install the brake hose bracket (A) on the damper with the 8 mm flange bolt (B) first, then connect the brake hose to the caliper with the banjo bolt (C) and new sealing washers (D). See Fig 1 .

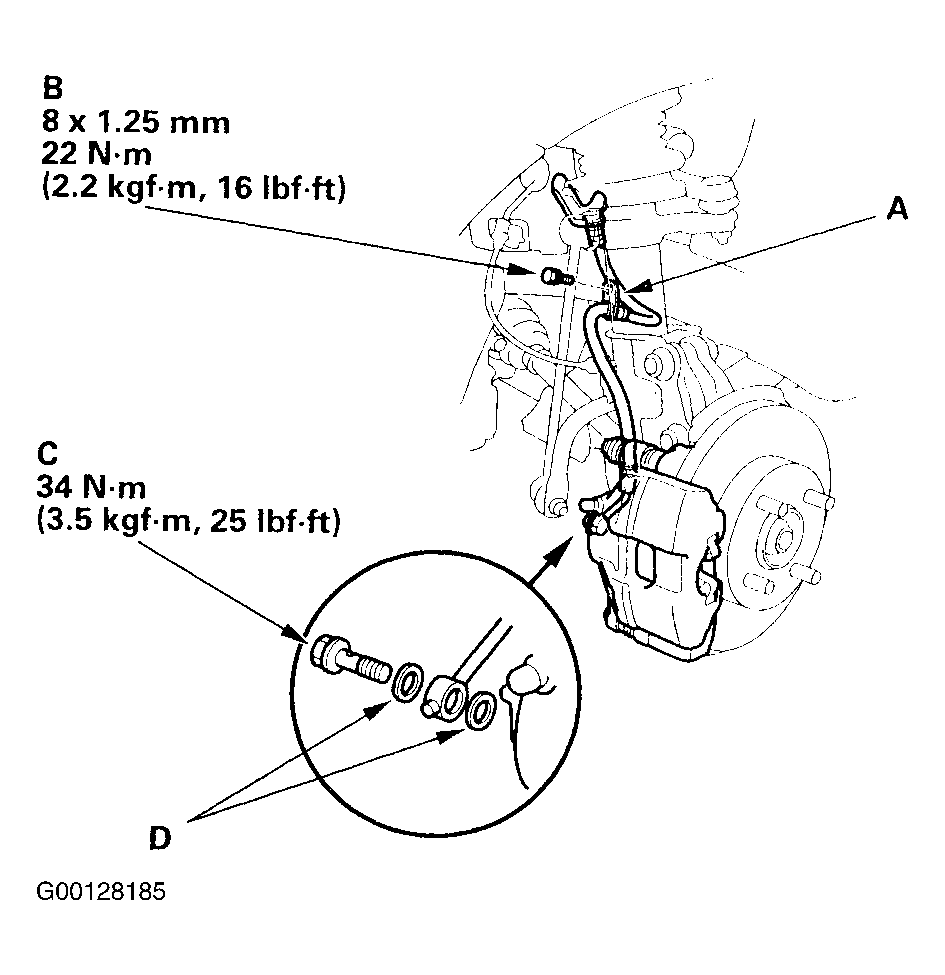

Fig 1: Installing Brake Hose Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the upper brake hose bracket (A) with the 6 mm flange bolts (B). See Fig 2 .

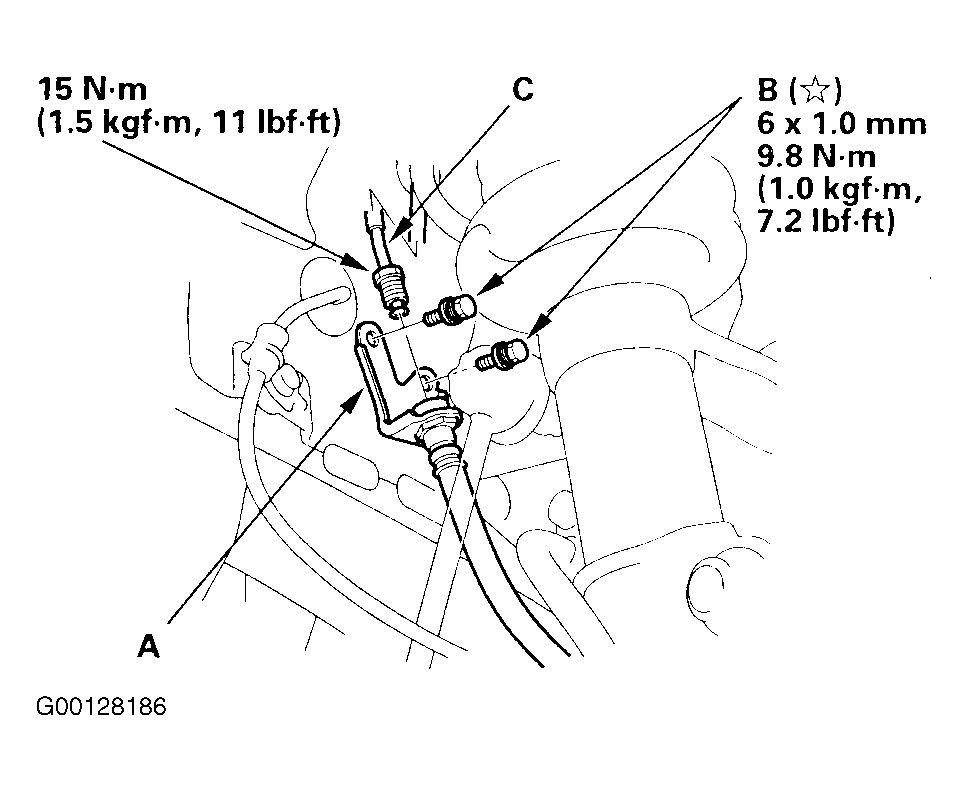

Fig 2: Connecting Brake Line & Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the brake line (C) to the brake hose. See Fig 2 .
Bleed the brake system. See BLEEDING .
Check the brake hose and line joint for leaks and tighten if necessary. Make sure the brake hose has no interference and no twisting.
