Brake Hose: Inspection

  1. Inspect the brake hose, for damage, deterioration, leaks, interference, and twisting.
  2. Check the brake lines for damage, rusting, leakage, and being bent.
  3. Check for leaks at hose and line joints or connections, retighten if necessary.
  4. Check the master cylinder for damage and leaks. See MASTER CYLINDER  .

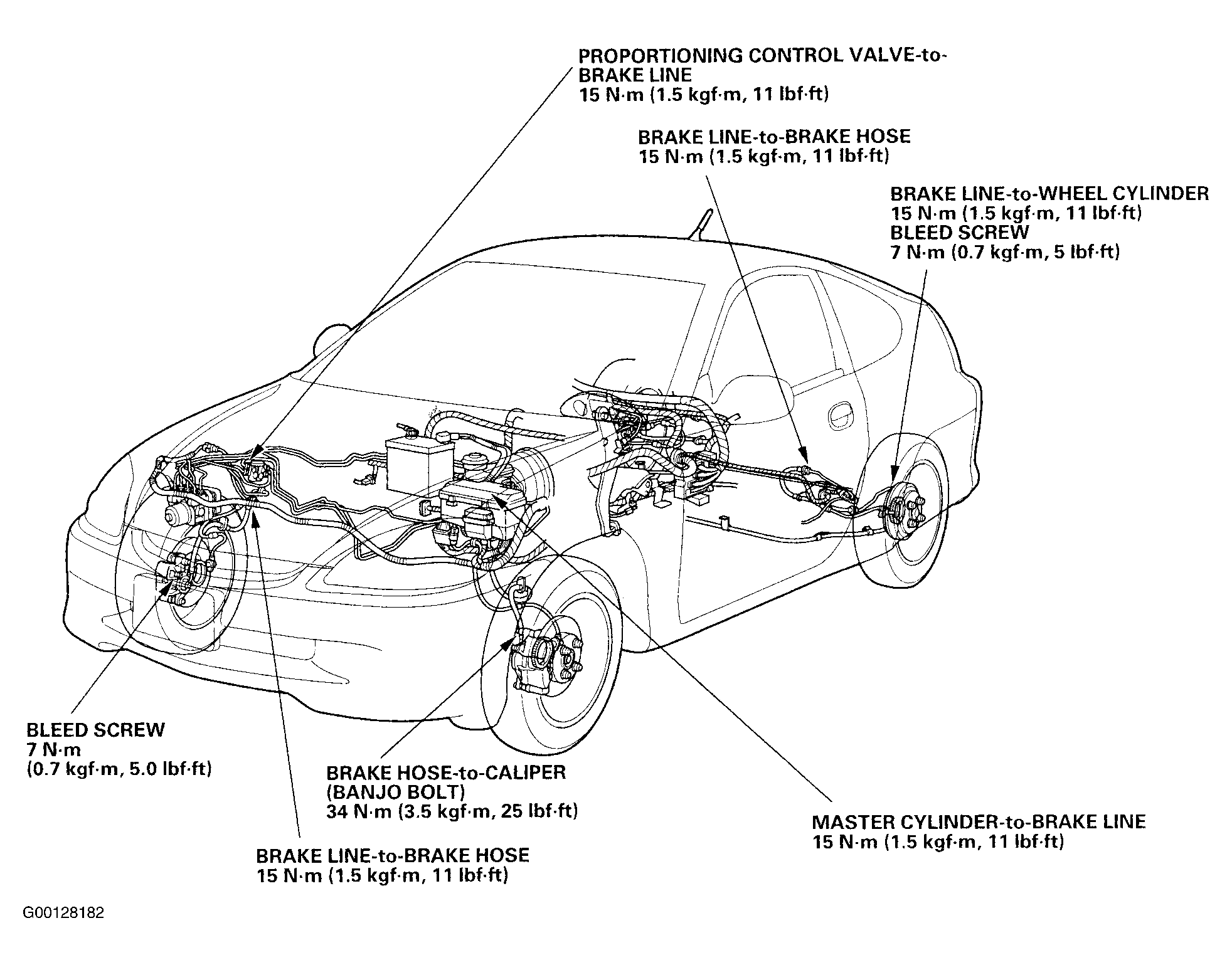

Fig 1: Identifying Brake Hose & Line Component Location Diagram
G00128182Courtesy of AMERICAN HONDA MOTOR CO., INC.
