Brake Booster Check Valve

  1. Disconnect the brake booster vacuum hose (check valve built in) (A) at the booster (B) side. See Fig 1 .
  2. Start the engine, and let it idle. There should be vacuum available. If no vacuum is available, the check valve is not working properly. Replace the brake booster vacuum hose and check valve, and retest.

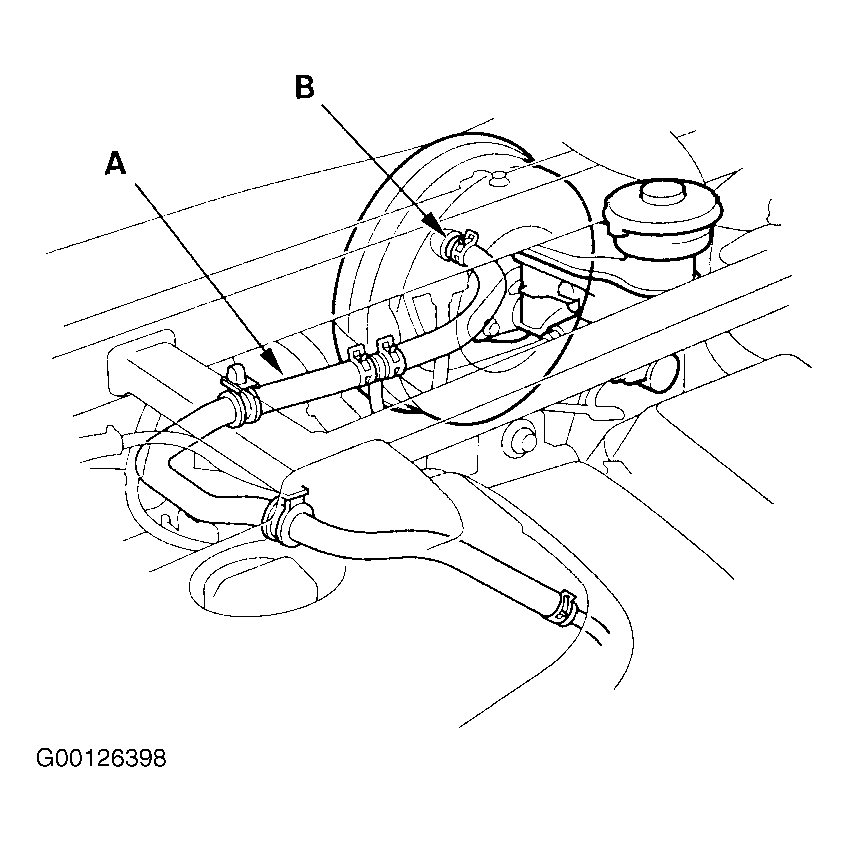

Fig 1: Disconnecting Booster Check Valve
G00126398Courtesy of AMERICAN HONDA MOTOR CO., INC.
