Brake Pedal Free Play

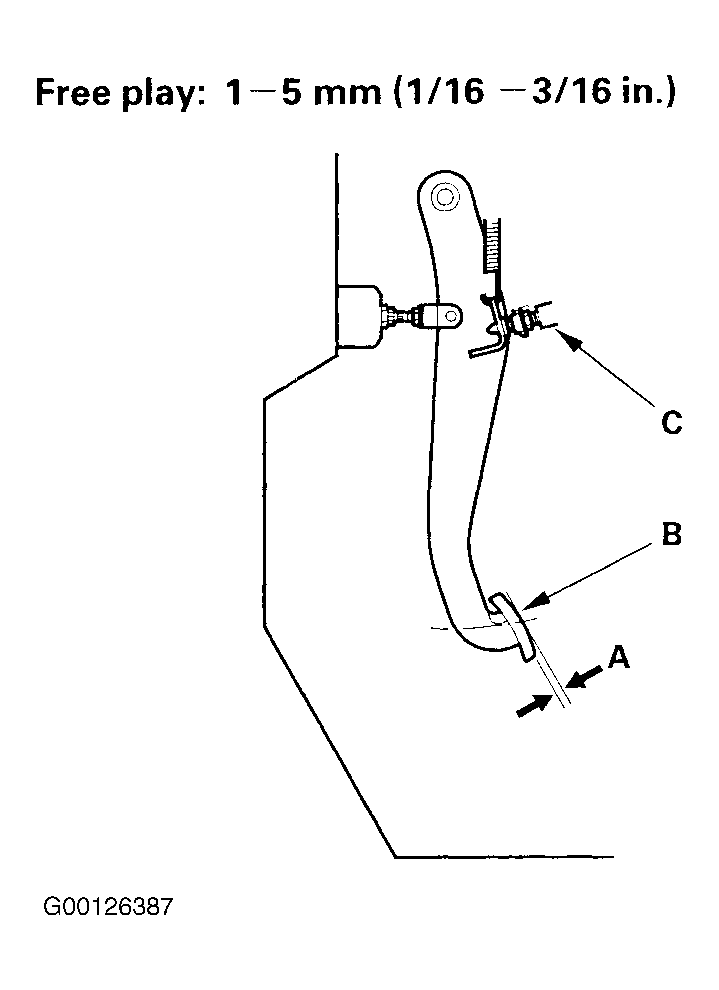

- With the engine off, inspect the play (A) on the pedal pad (B) by pushing the pedal by hand. See Fig 1
.
- Free play: 1-5 mm (1/16- 3/16 in.).
- If the pedal is out of specification, adjust the brake switch (C). If the pedal free play is insufficient, it may result in brake drag. See Fig 1
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
