VSS Replacement

  1. Disconnect the 3P connector (A) from the VSS (vehicle speed sensor) (B).

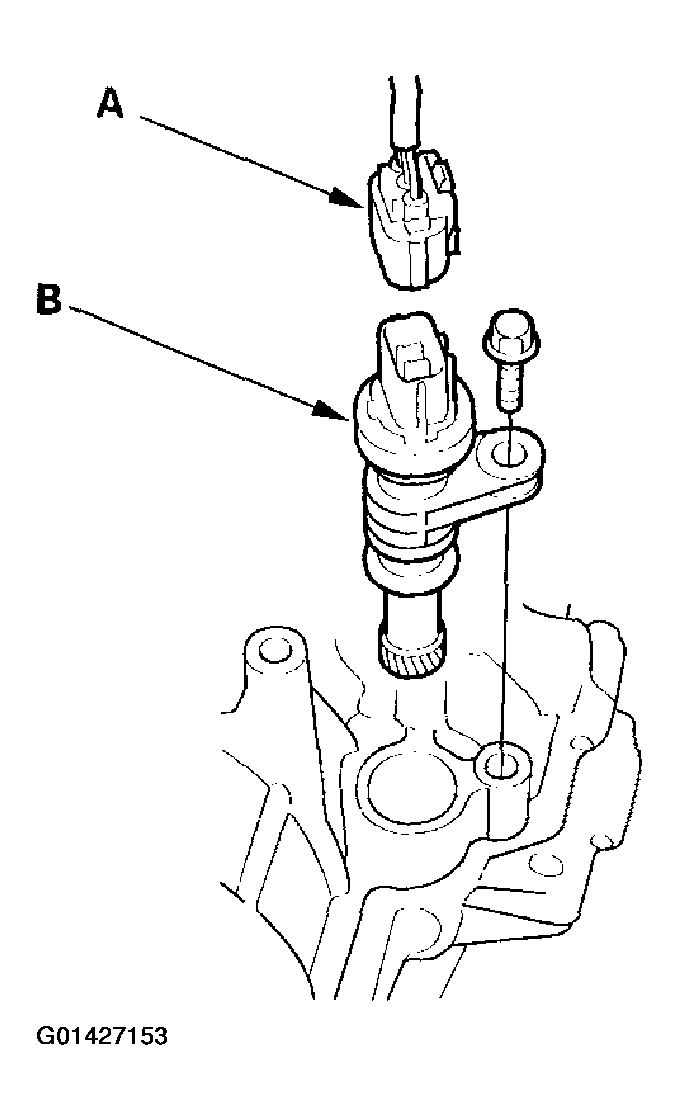

    Fig 1: Disconnecting 3-Pin Connector From Vehicle Speed Sensor
    G01427153Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the mounting bolt, then remove the VSS.
  3. Install in the reverse order of removal.
