Light-on, Key-in & Seat Belt Reminder System
>>
Circuit Diagram
Circuit Diagram

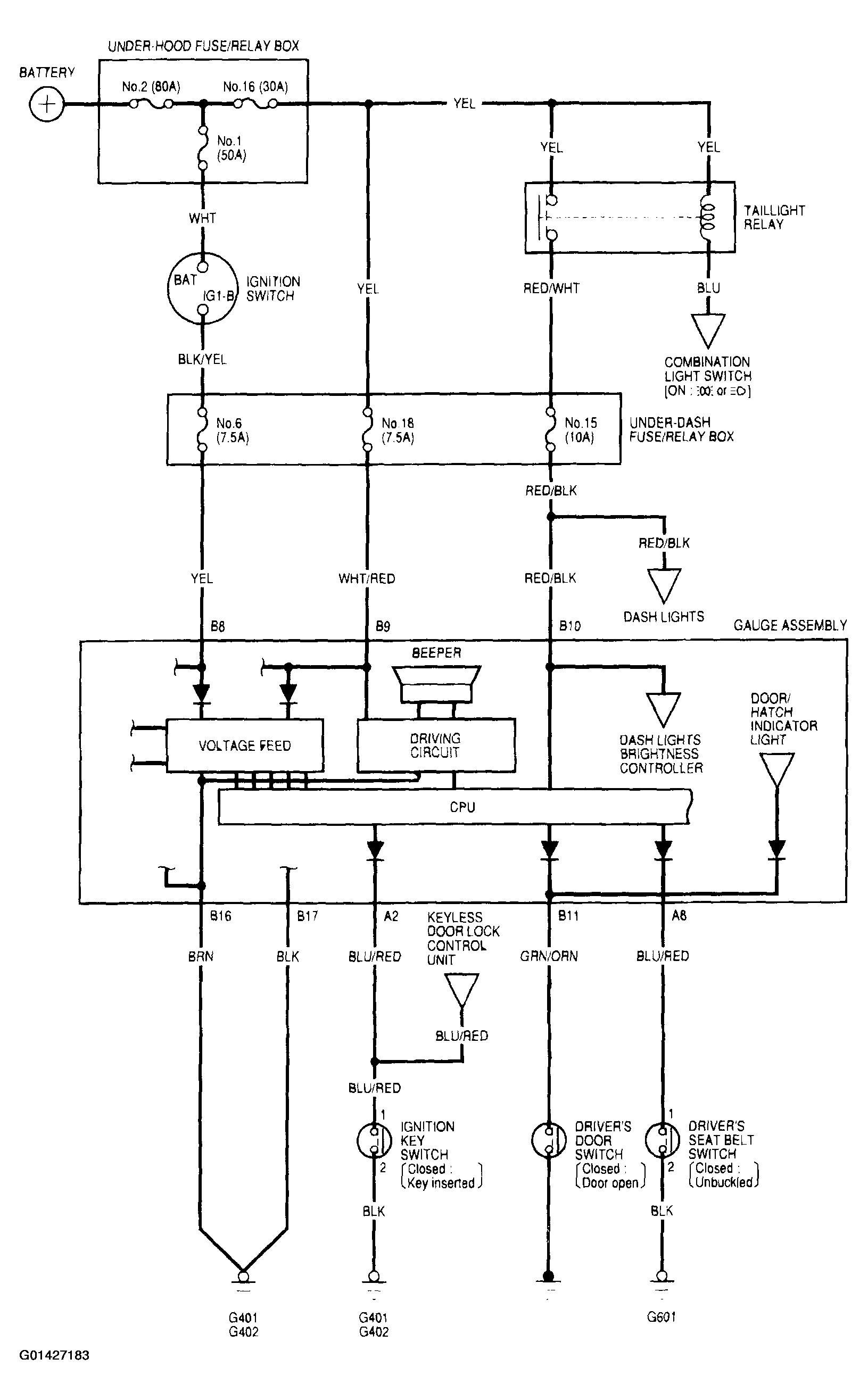

Fig 1: Light-On, Key-In & Seat Belt Reminder Systems Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
