Gauge Assembly Replacement

The IMA battery level gauge will go off in the following cases:

• When the battery is removed
• When the gauge assembly is removed
• When the No. 16 (30 A) or No. 18 (7.5 A) fuse in the under-hood fuse/relay box is removed

After about 30 minutes driving, the IMA battery level gauge will come on.

1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
2. Remove the screws from the gauge assembly (A), and spread a protective cloth (B) on the upper column cover.

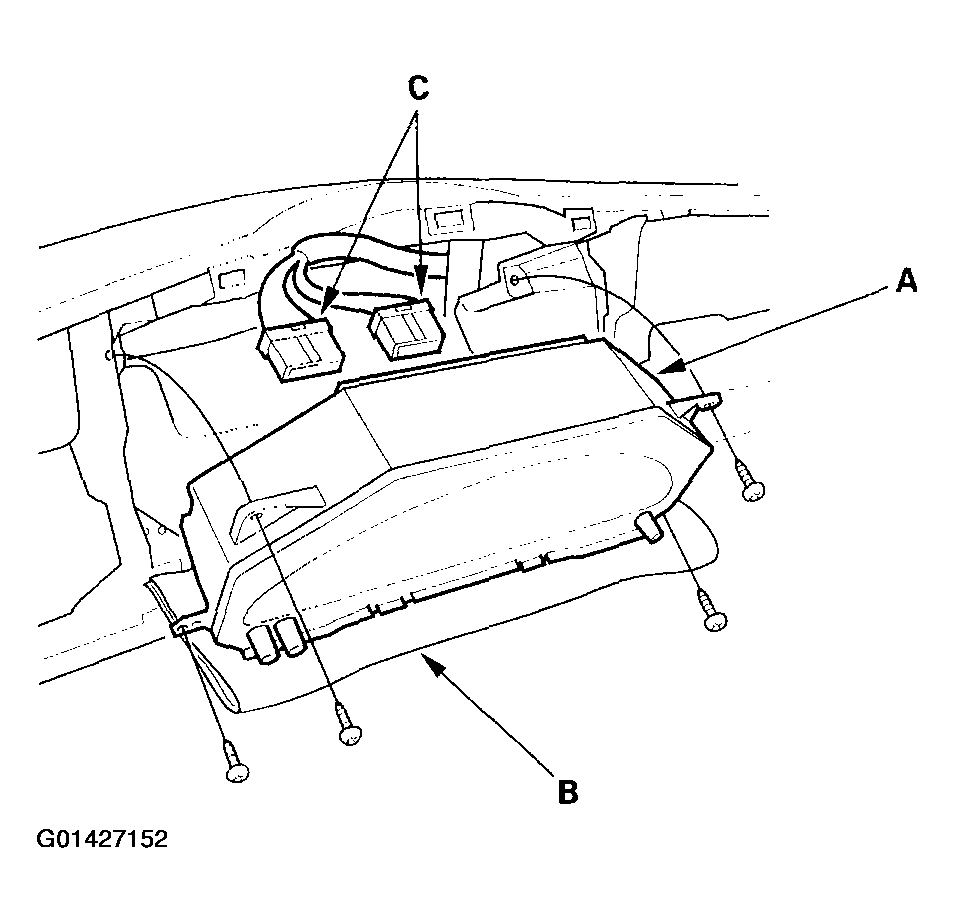

   Fig 1: Removing Screws From Gauge Assembly

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Disconnect the connectors (C), and remove the gauge assembly.
4. Install in the reverse order of removal.
