Fuel Consumption Display Select Switch Test/Replacement

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A) from the switch (B).

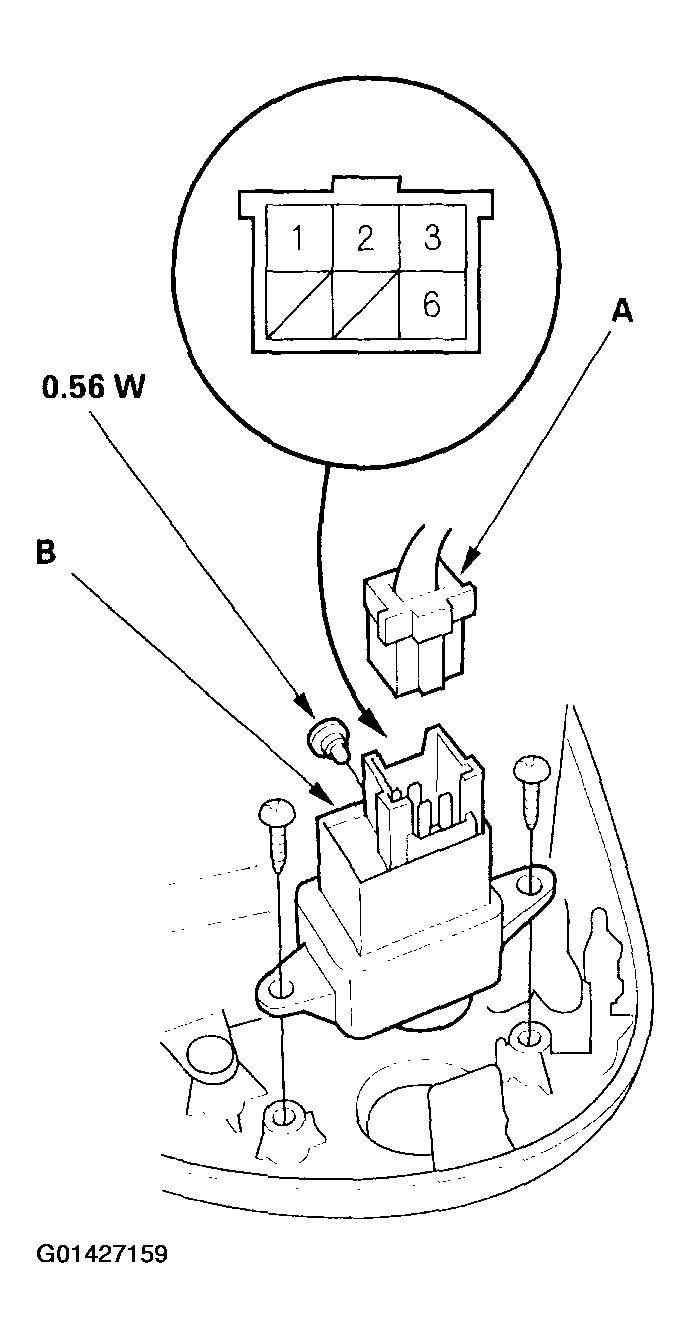

Fig 1: Disconnecting 6-Pin Connector From Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and the switch.
Check for continuity between the No. 6 and No. 1 terminals when the switch is pushed.
There should be continuity.
If the continuity check is not as specified, replace the switch.
