Component Location Index

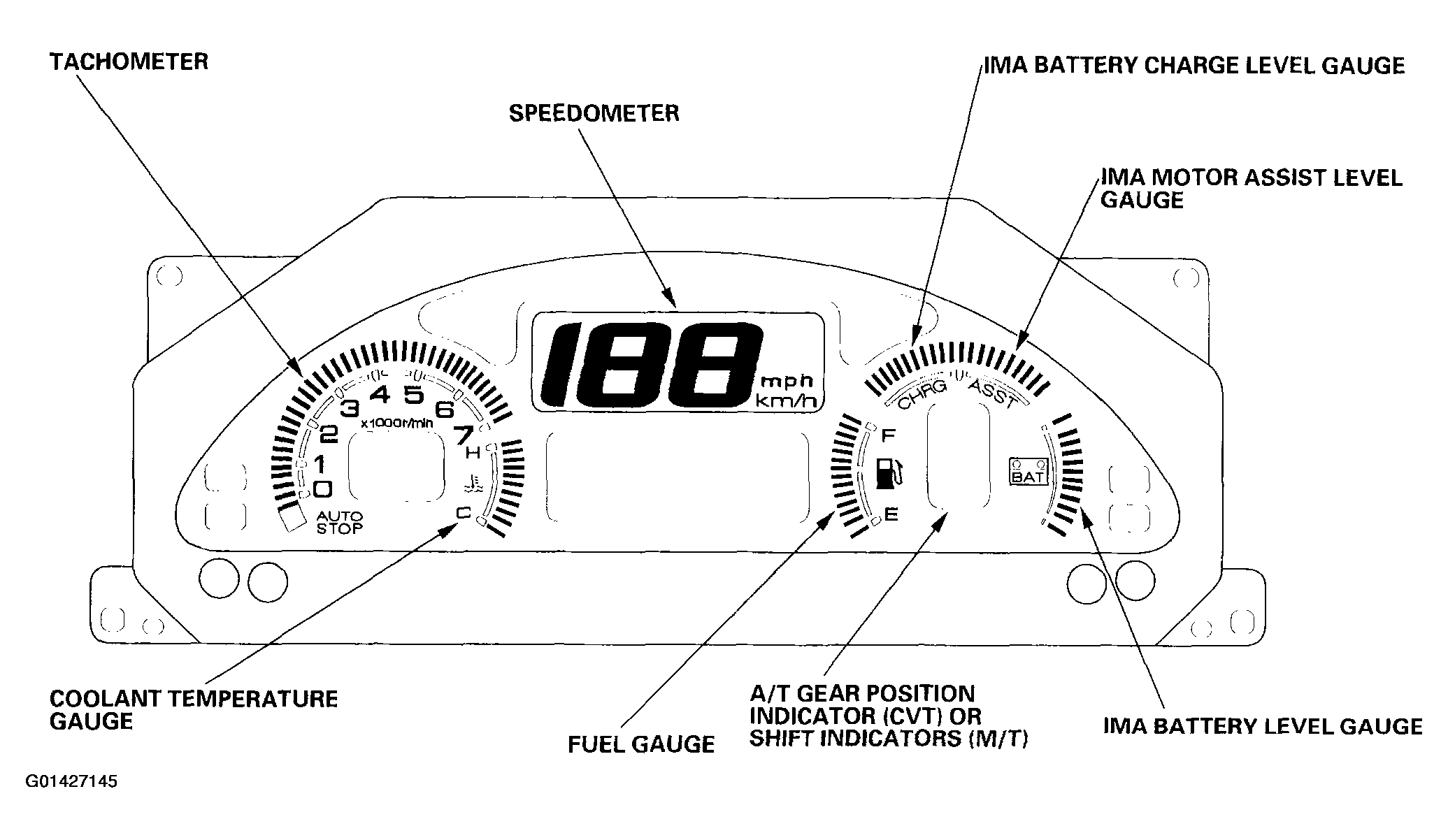

Fig 1: Identifying Gauges Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

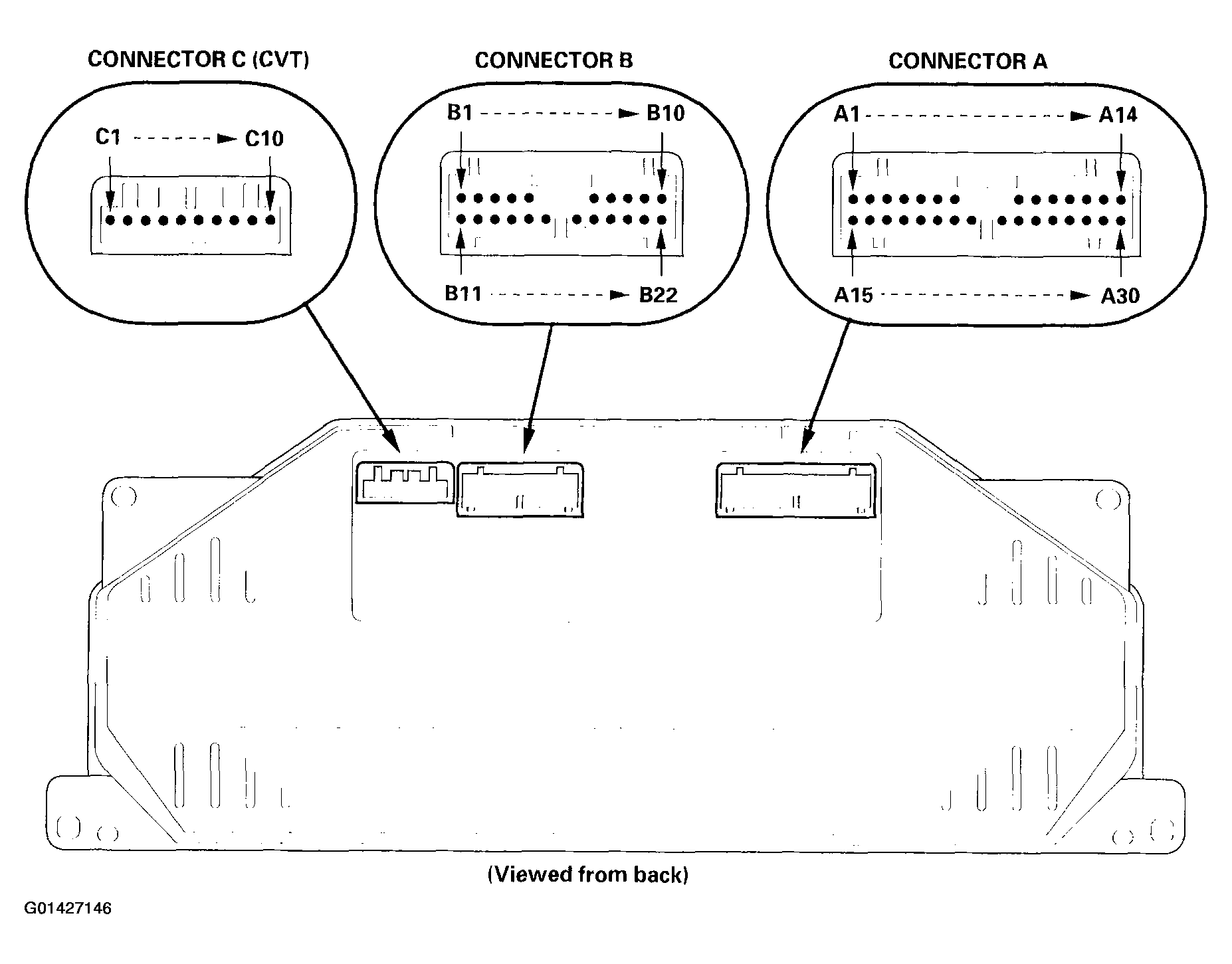

Fig 2: Identifying Gauge/Terminal Locations Index (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

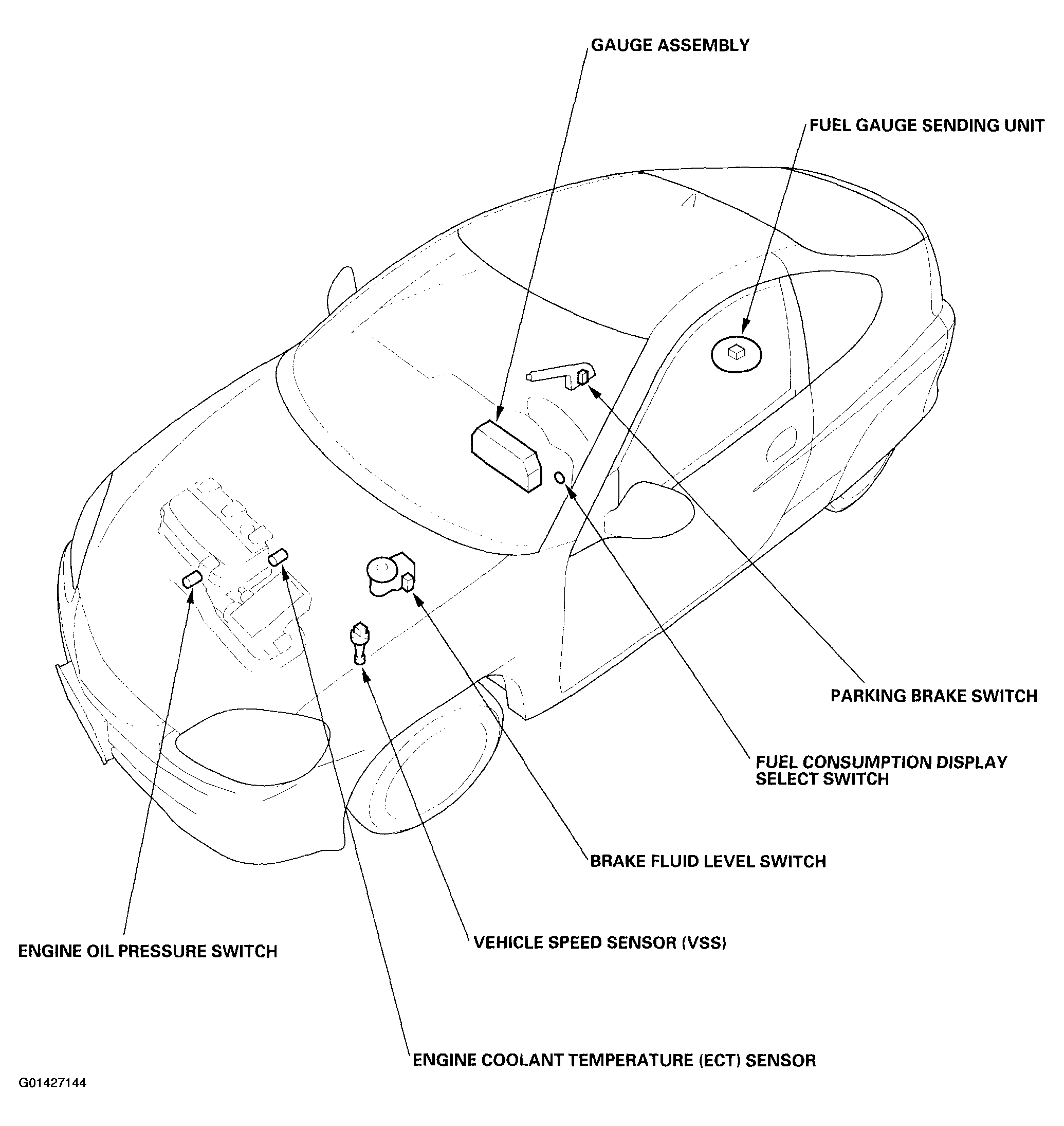

Fig 3: Identifying Gauge/Terminal Locations Index (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
