Hazard Warning Switch Test

Remove center panel. See CENTER PANEL  under REMOVAL & INSTALLATION. Remove 2 screws and remove hazard warning switch from center panel. With hazard switch in specified position, check continuity between indicated switch terminals. See Fig 1 . If continuity is not as specified, replace hazard warning switch.

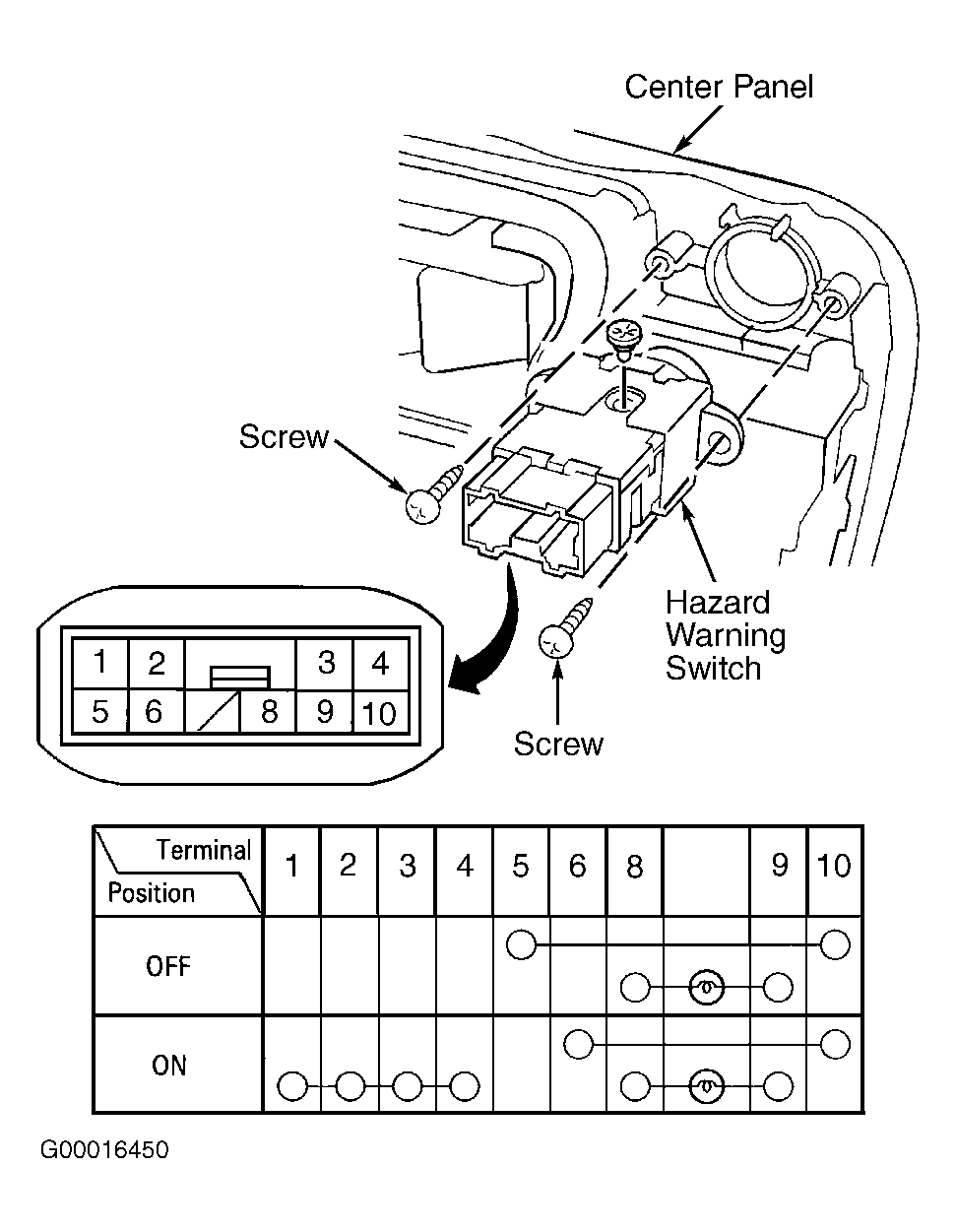

Fig 1: Testing Hazard Warning Switch
G00016450Courtesy of AMERICAN HONDA MOTOR CO., INC.
