Installation (Odyssey)

Install spring, spring upper and lower seats. Loosely install flange nuts on top of shock absorber.
Position hydraulic jack under connecting point of lower arm "B" and knuckle. Align bolt holes in lower arm "B" and knuckle by raising hydraulic jack gradually, then loosely install flange bolt.
Loosely install flange bolt through bottom of shock absorber. Raise rear suspension with floor jack until vehicle just lifts off safety stand. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . Install rear wheels.

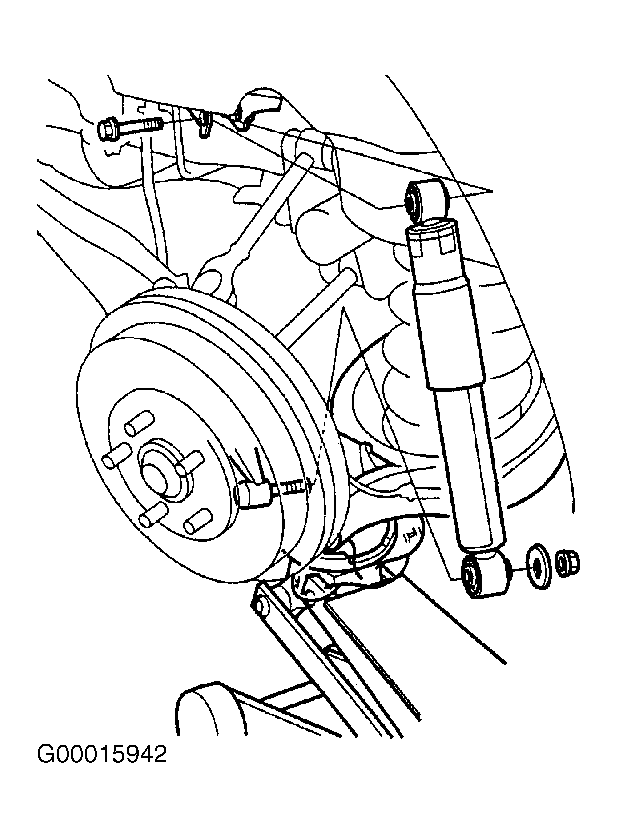

Fig 1: View Of Rear Shock Assembly (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
