Installation (All Models)

Install backing plate/hub bearing unit onto trailing arm. To complete installation, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Use NEW spindle nut, and stake after tightening to specification.

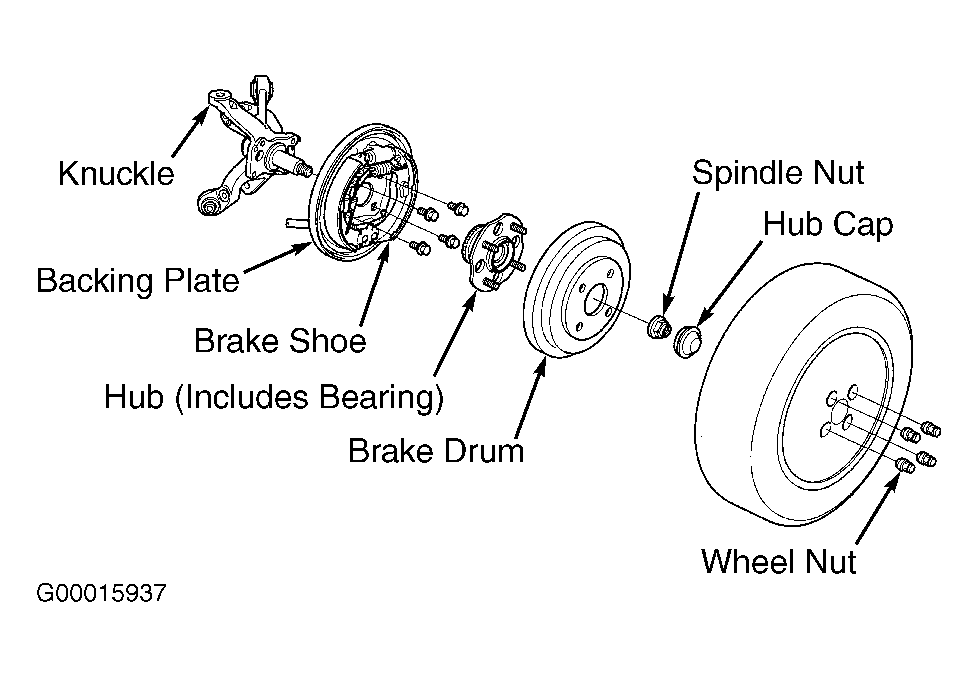

Fig 1: Exploded View Of Hub Assembly (Accord W/Disc Brake)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

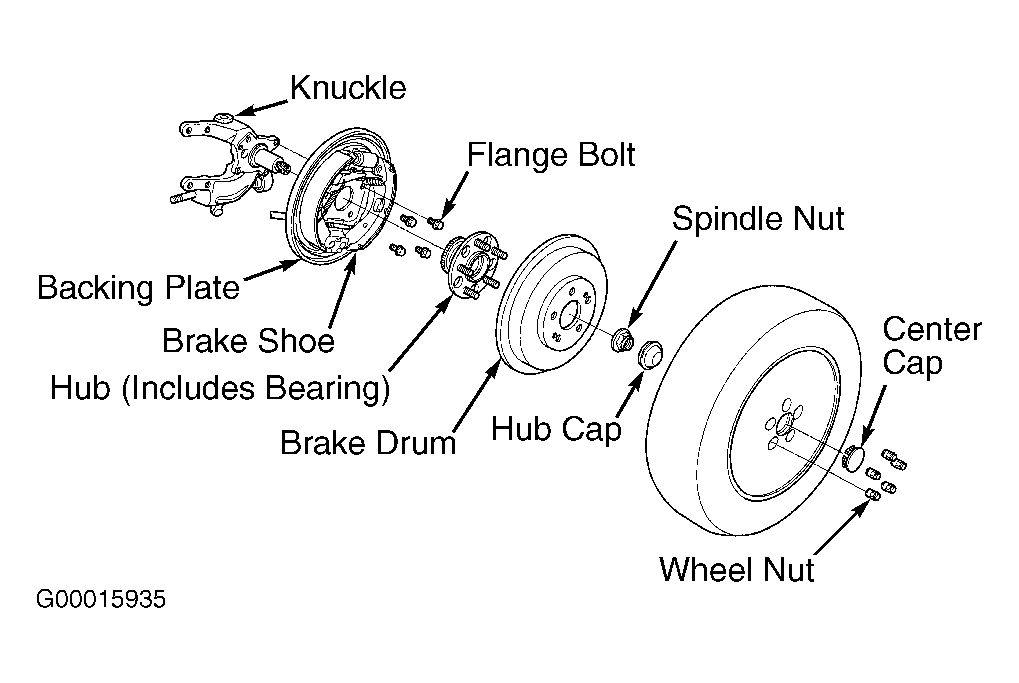

Fig 2: Exploded View Of Hub Assembly (Accord W/Drum Brake)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

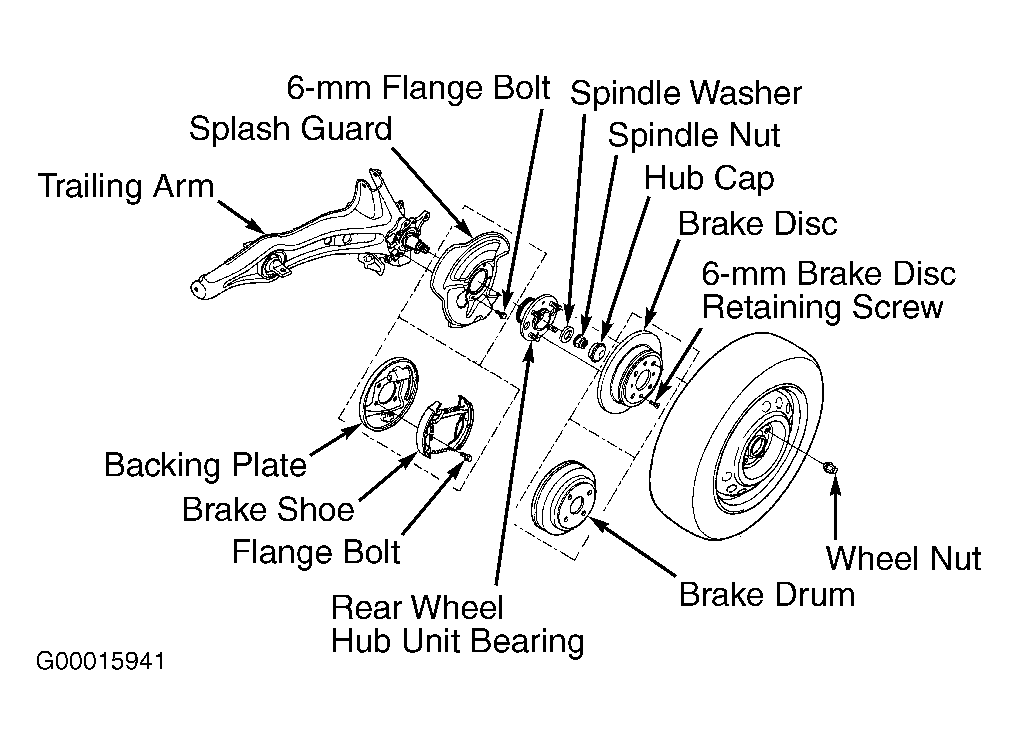

Fig 3: Exploded View Of Hub Assembly (Civic)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

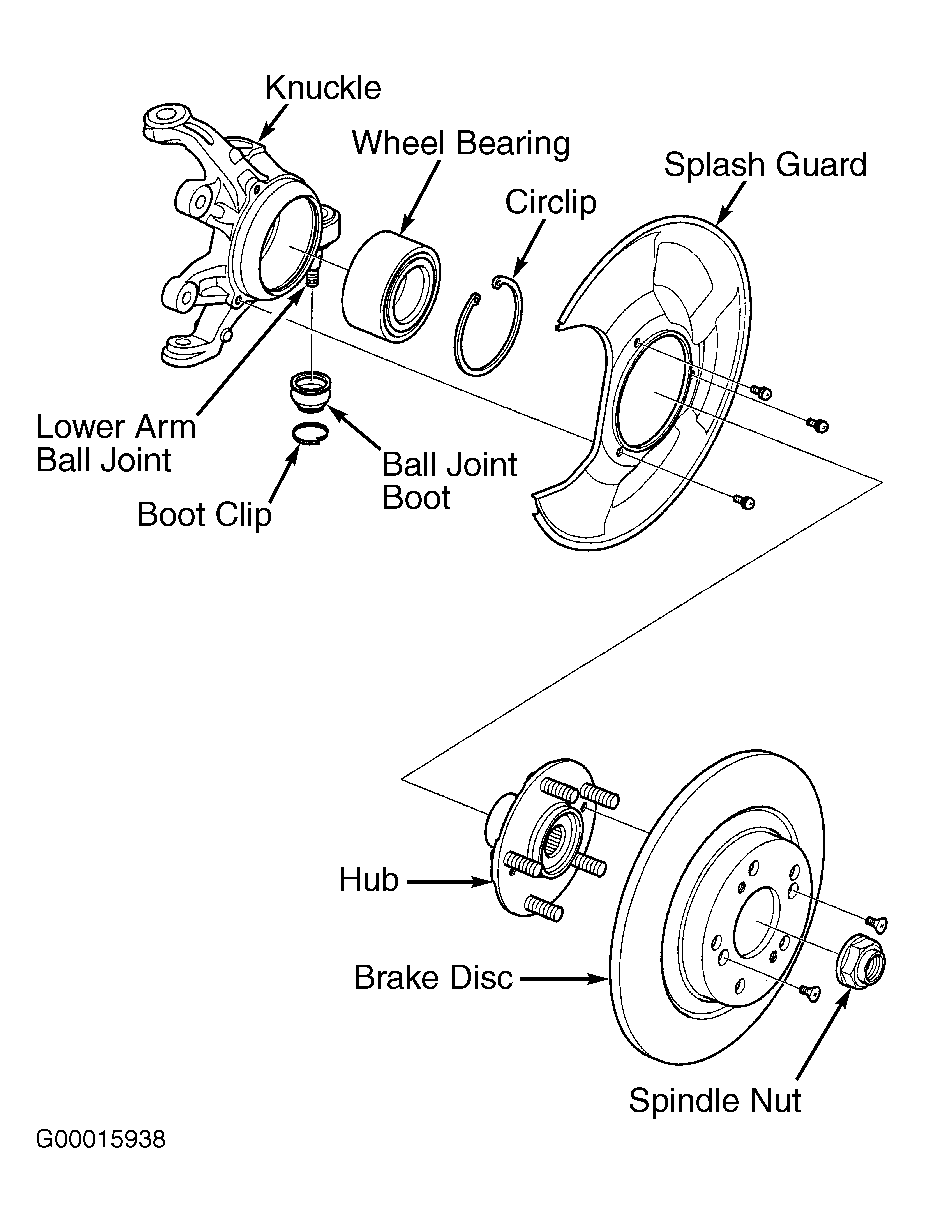

Fig 4: Exploded View Of Hub Assembly (CR-V)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

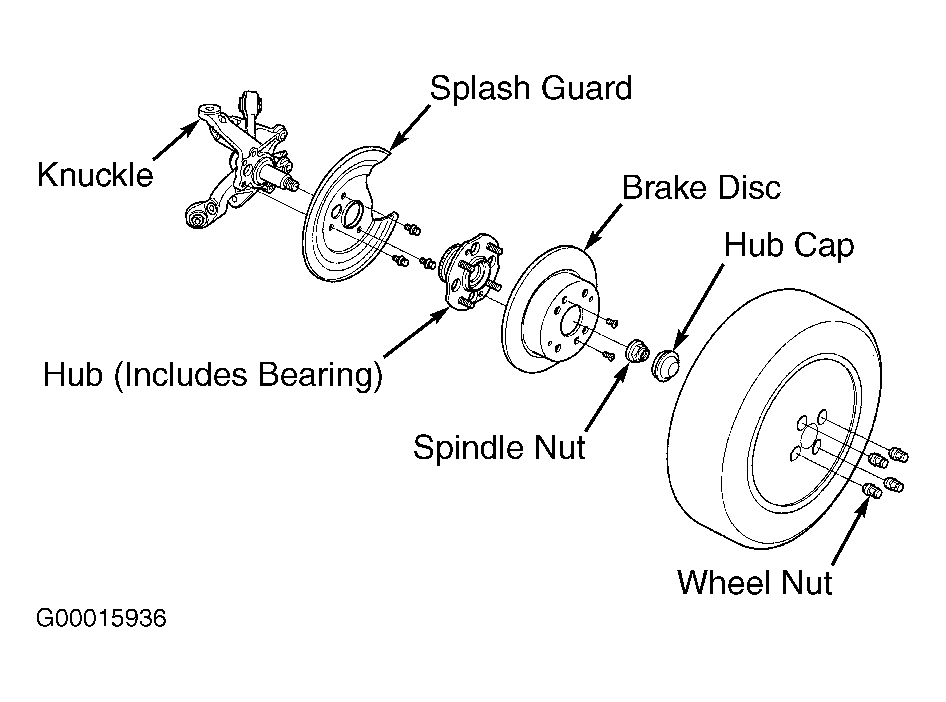

Fig 5: Exploded View Of Hub Assembly (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

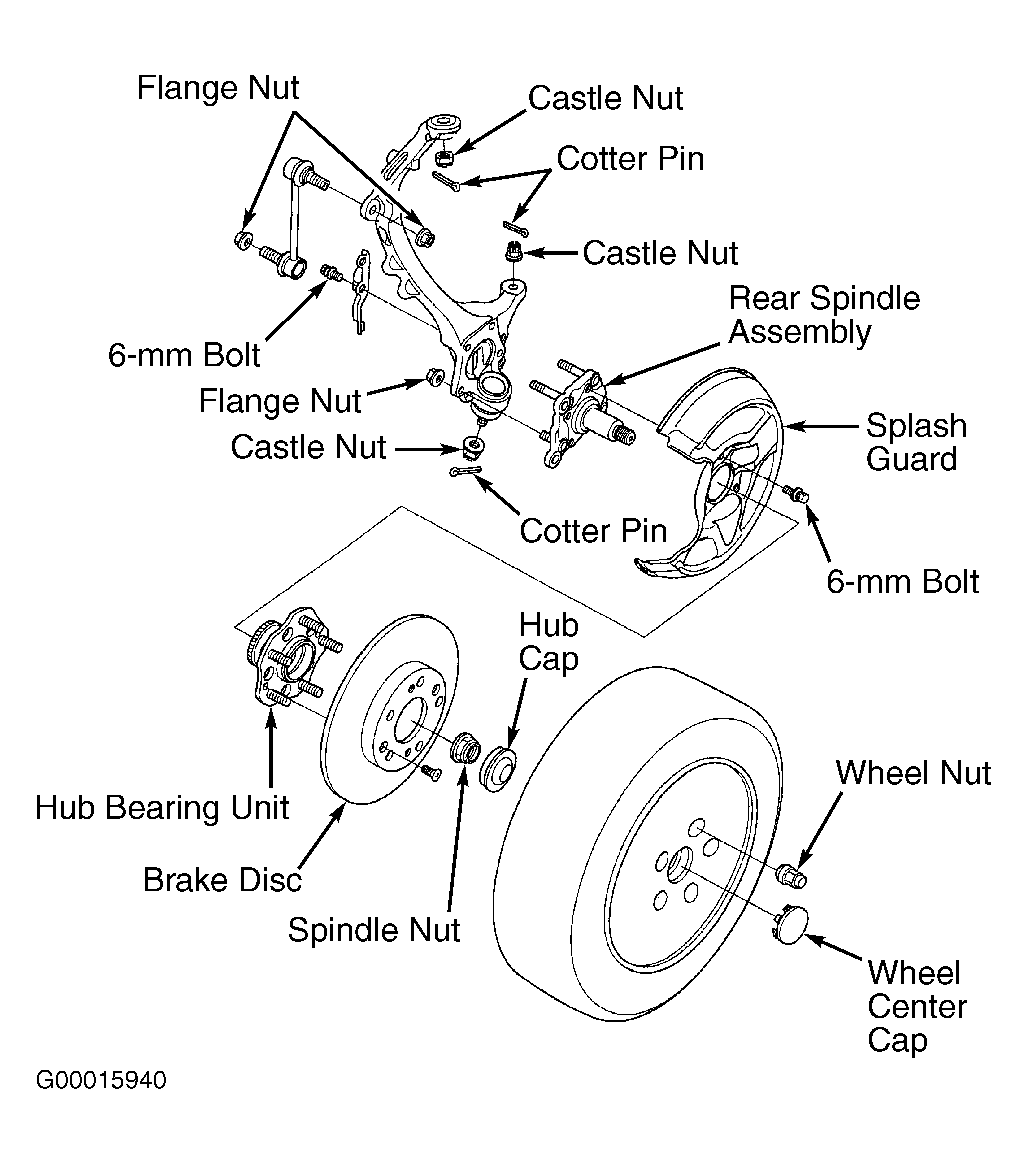

Fig 6: Exploded View Of Hub Assembly (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

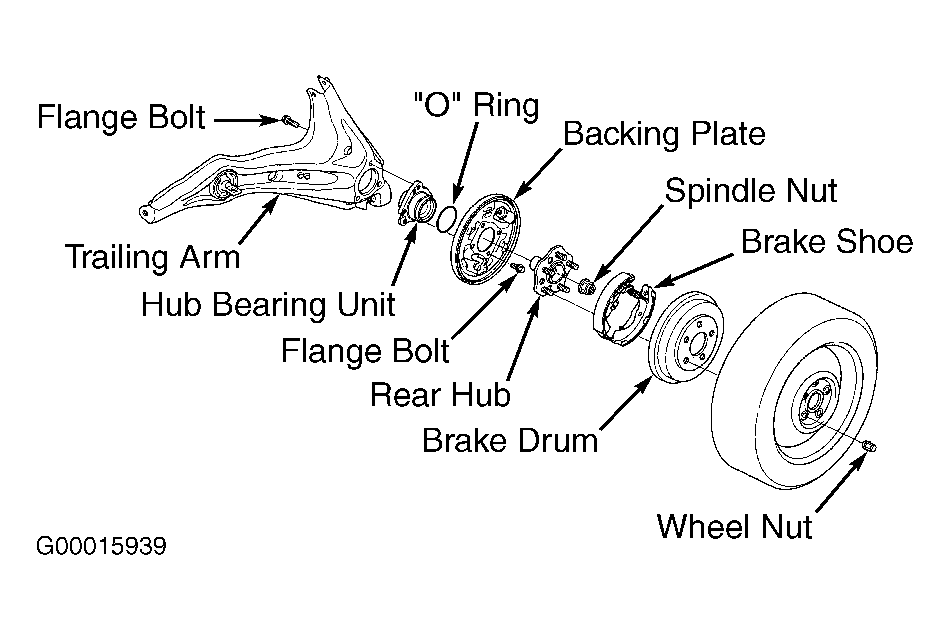

Fig 7: Exploded View Of Hub Assembly (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
