Rear Suspension System: Description

Accord, Civic, CR-V, Prelude and S2000 use an independent strut type suspension. Main components of rear suspension are a vertically-mounted strut, trailing arm, upper and lower control arms, knuckle, stabilizer bar and hub assembly. See Fig 1 and Fig 3 .

Odyssey main rear suspension components are a shock absorber, coil spring, trailing arm, upper and lower control arms, knuckle, stabilizer bar and hub assembly. See Fig 2.

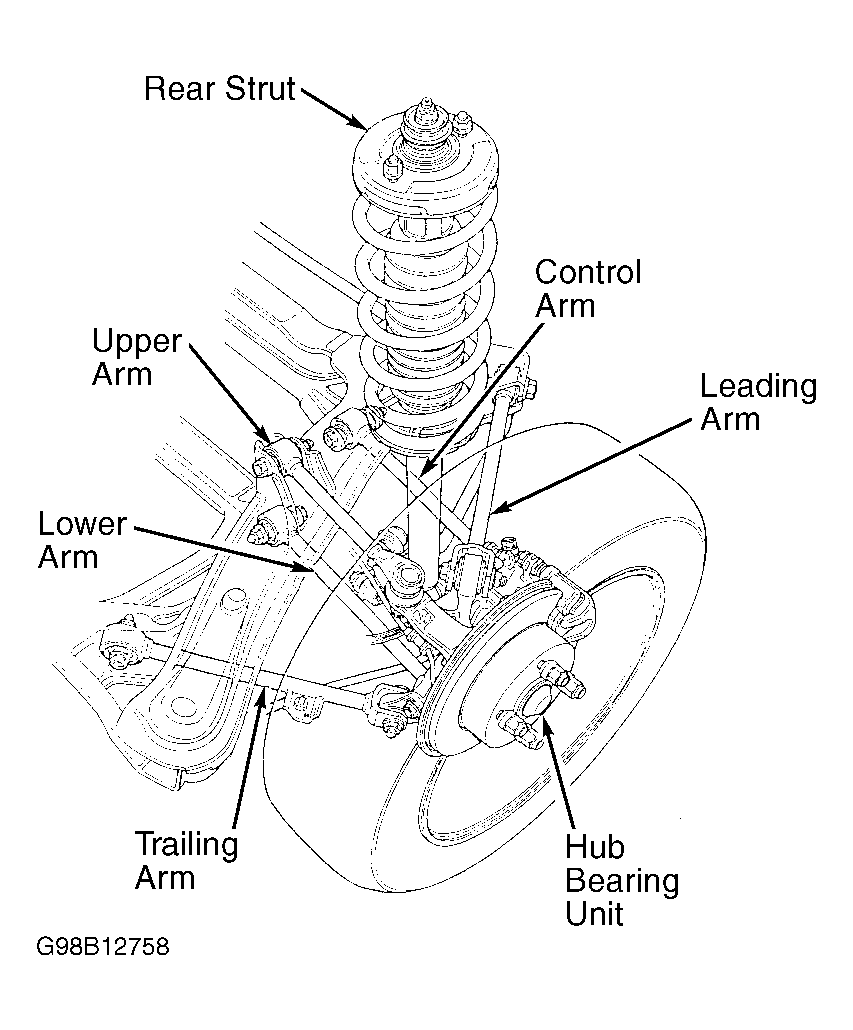

Fig 1: Identifying Rear Suspension Components (Accord Shown; Civic, CR-V & Prelude Are Similar)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

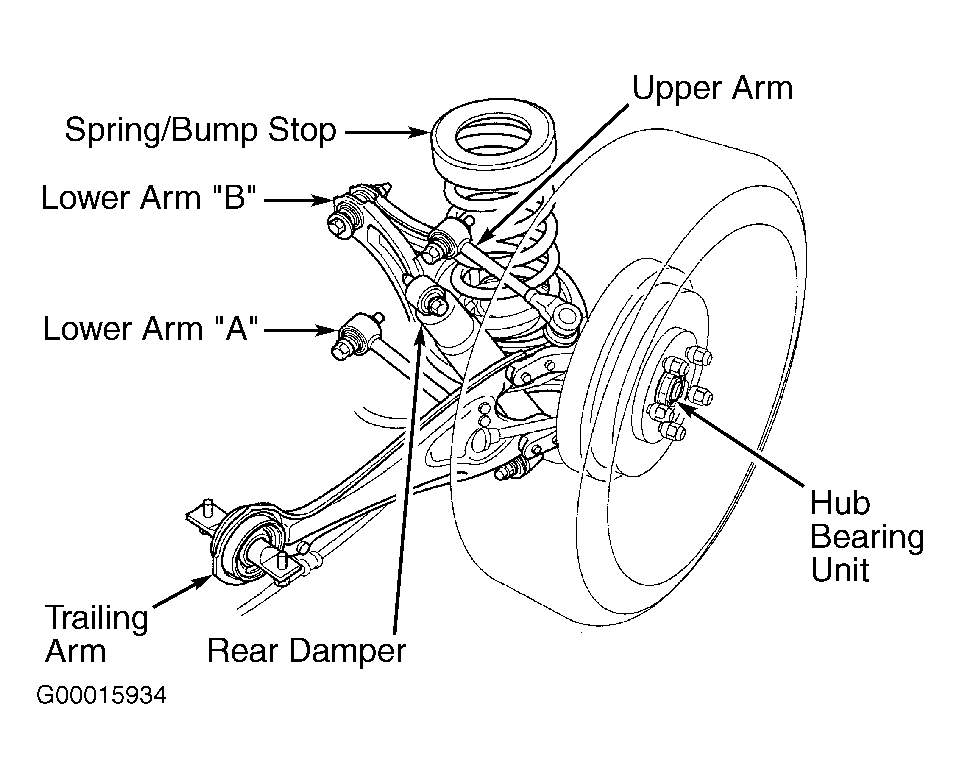

Fig 2: Identifying Rear Suspension Components (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Rear Suspension Components (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
