Hub & Knuckle Assembly: Installation

To install hub/knuckle, reverse removal procedure. Tighten bolts and nuts to specification. Use NEW spindle nut, and stake after tightening. See TORQUE SPECIFICATIONS .

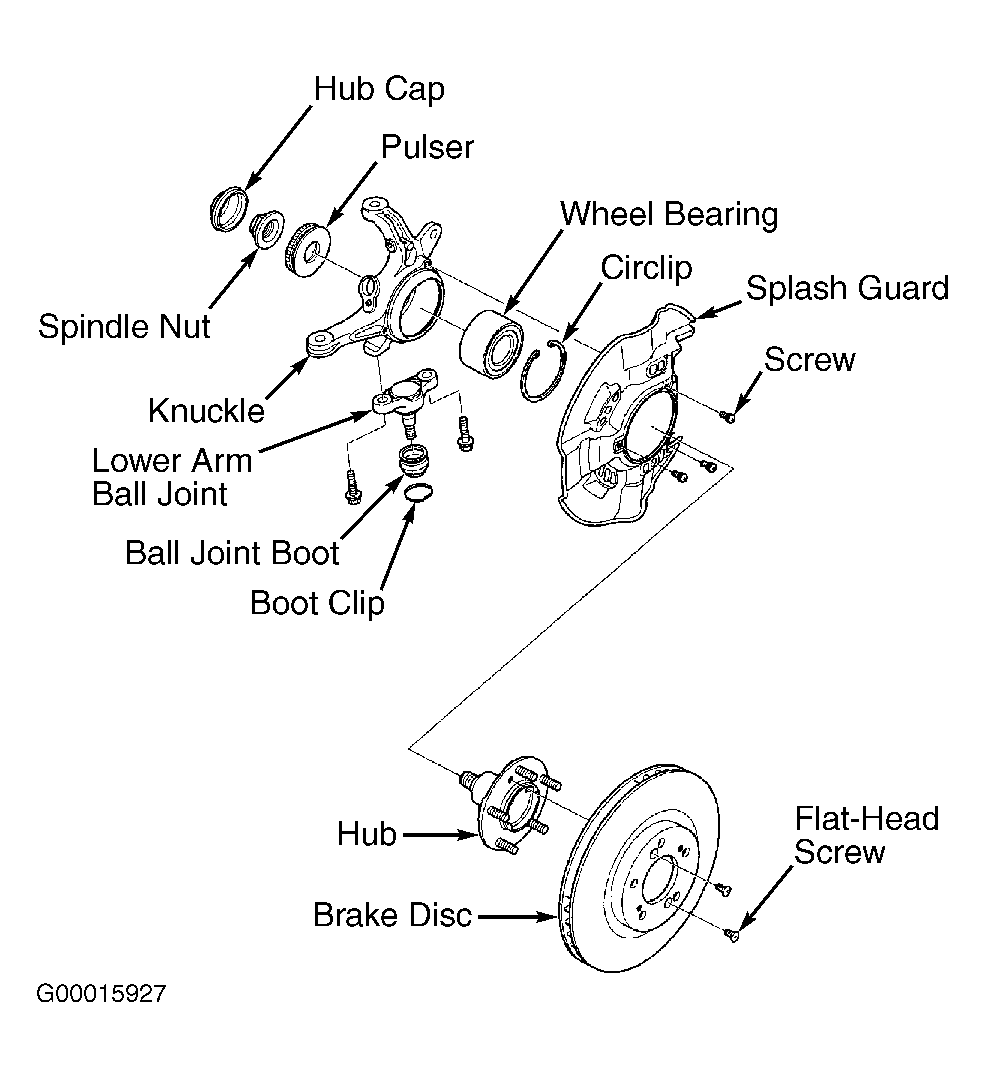

Fig 1: Exploded View Of Steering Knuckle (Accord)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Exploded View Of Steering Knuckle (Civic & CR-V)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Exploded View Of Steering Knuckle (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Exploded View Of Steering Knuckle (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Exploded View Of Steering Knuckle (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
