Component Locations

Refer to illustration to locate SRS components. See Fig 1 .

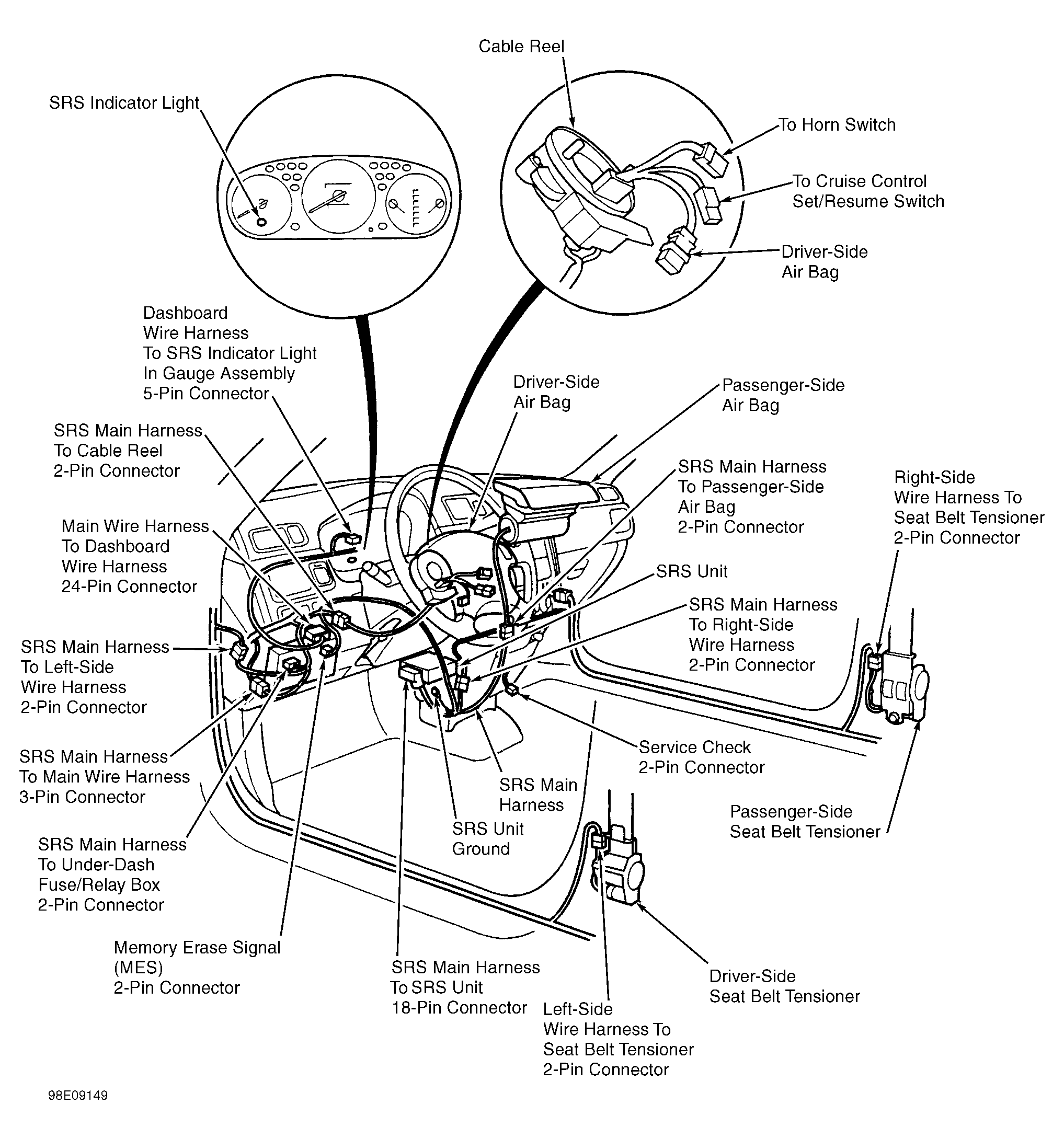

Fig 1: Locating SRS Components & Wiring Connectors
G98E09149Courtesy of HONDA
