Special Tools

For better serviceability, memory will store cause of a malfunction, and data link circuit passes on information from memory to Data Link Connector (DLC). This information can be read with Honda PGM Tester connected to DLC. To avoid accidental air bag deployment when testing or working around SRS, use recommended tools. See RECOMMENDED TOOLS table.

RECOMMENDED TOOLS⁽¹⁾

Tool Name

Tool Number

Backprobe adapter, 17 mm⁽²⁾

07TAZ-001020A

Deployment tool⁽³⁾

07HAZ-SG00500

SCS service connector⁽³⁾

07PAZ-0010100

SRS inflator simulator

07SAZ-TB4011A

SRS simulator lead "C"

07TAZ-SZ5011A

⁽¹⁾	See Fig 1 .

⁽²⁾	Use with stacking patch cords from Backprobe Set (07SAZ-001000A).

⁽³⁾	Included in SRS Tool Set (07MAZ-SM5000B).

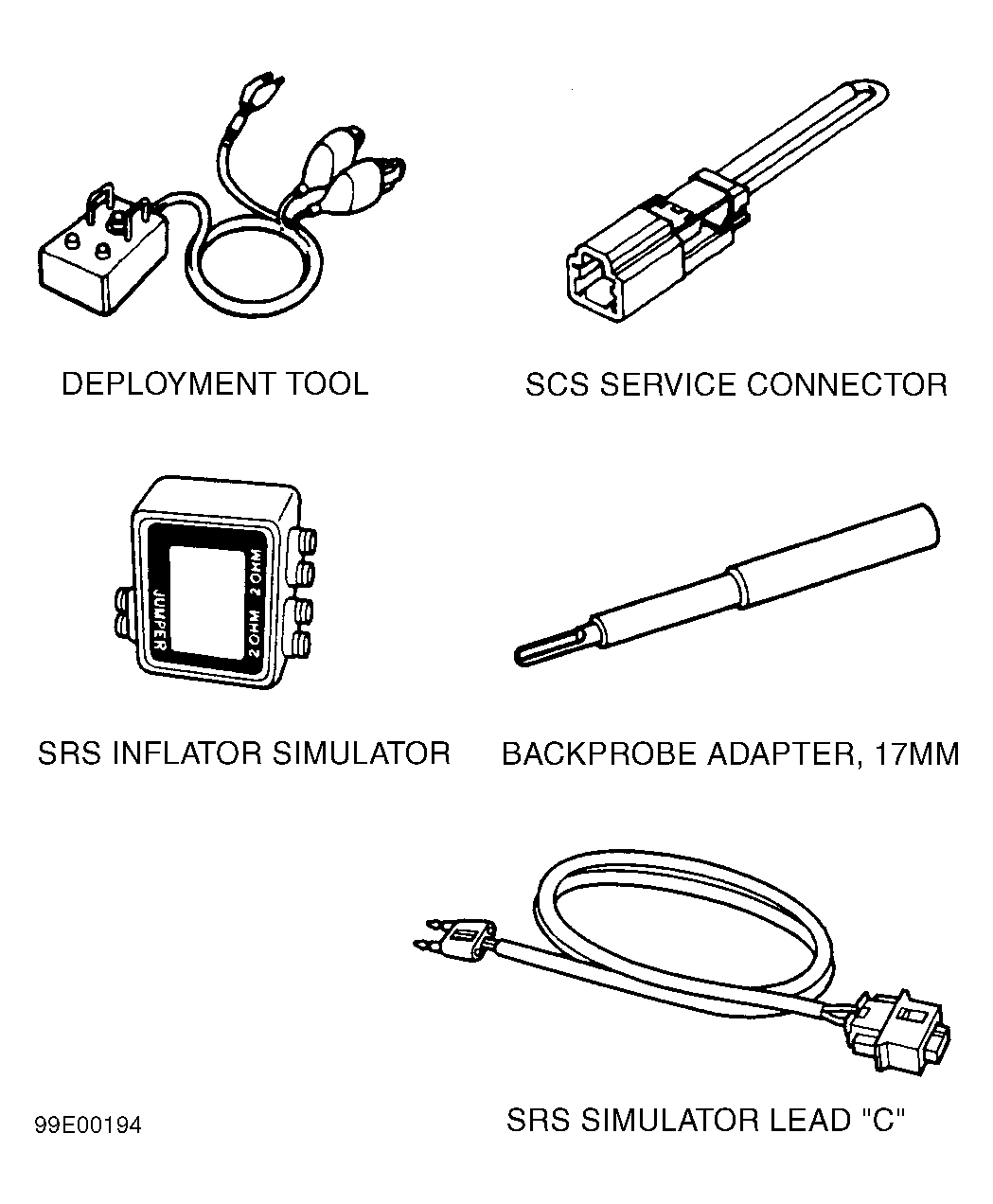

Fig 1: Identifying Special Tools

Courtesy of HONDA
