A/T Gear Position Indicator

WARNING: This page is about a different variant/trim than selected.

NOTE: If necessary, refer to wiring schematic when checking component wiring. See WIRING DIAGRAMS .

Remove instrument panel gauge assembly from instrument panel. Disconnect harness connector from rear of instrument panel gauge assembly.
Check for voltage or continuity at harness connectors as specified. See Fig 1. See WIRING DIAGRAMS . Check ground connections. Check fuse No. 25 (7.5-amp) in underdash fuse/relay box.

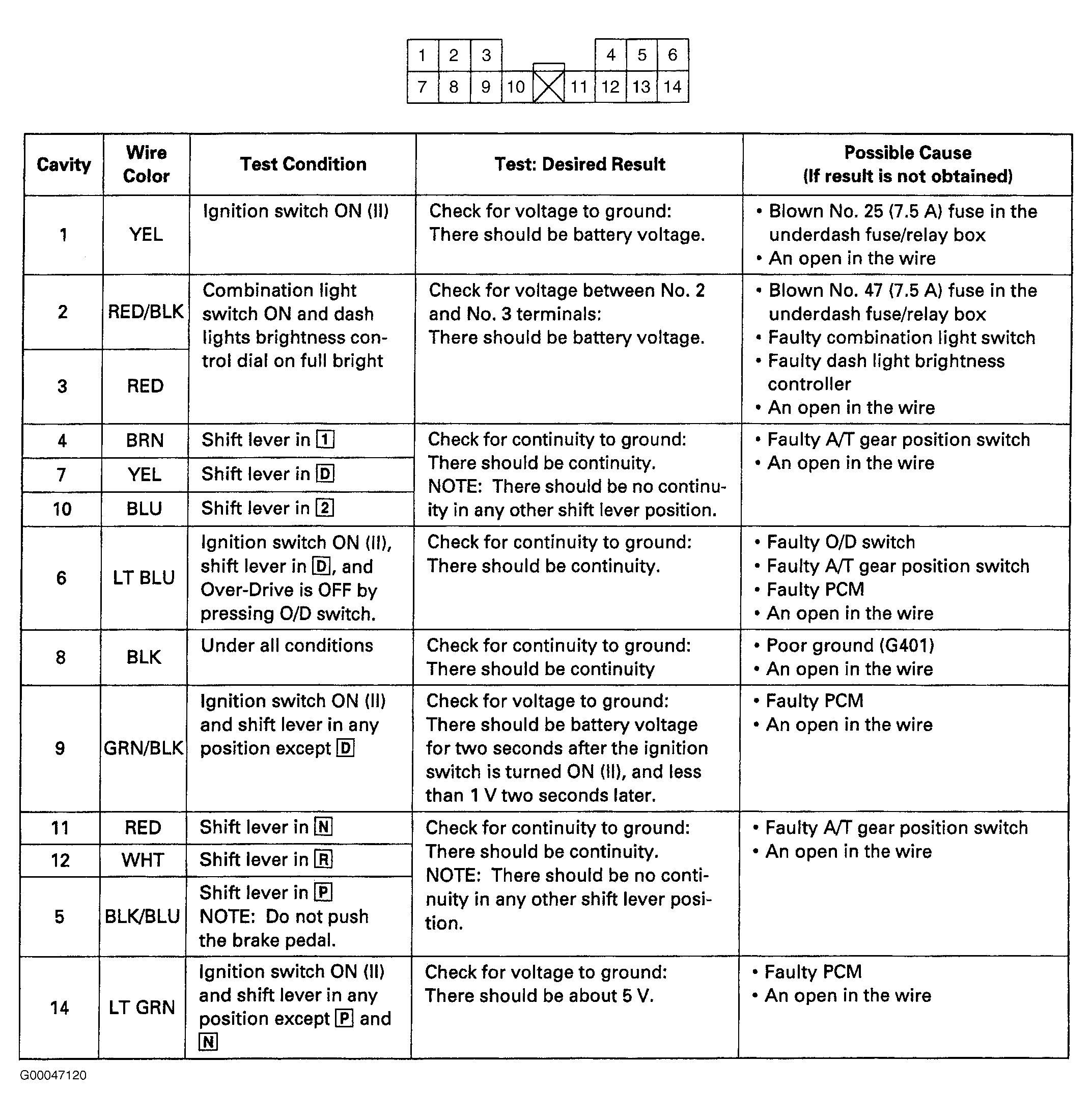

Fig 1: A/T Gear Position Indicator Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
