Od Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove instrument panel lower cover. Remove upper and lower steering column covers.

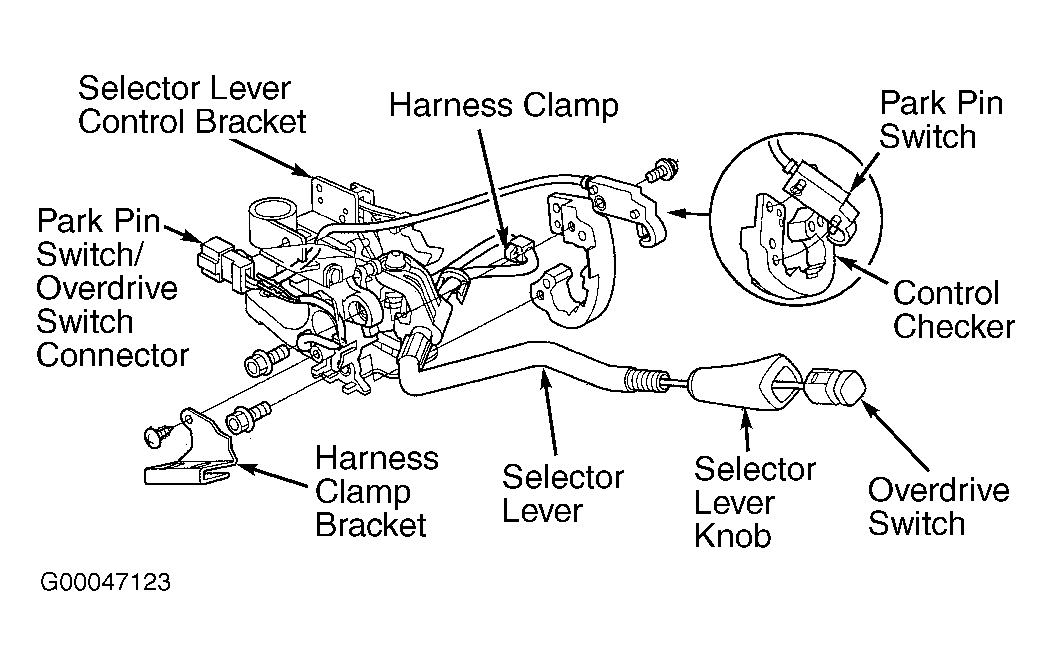

  2. Remove steering column flange nuts, then lower steering column. Disconnect shift lock solenoid, park pin switch and OD switch. Remove harness clamp bracket. See Figure.
  3. Remove bolts and selector lever assembly. Remove shift lock solenoid. Cut OD switch wires (Red wire and Black wire). Remove harness connector from selector lever control bracket. Remove control checker from selector lever control bracket.
  4. Remove park pin switch from control checker. Remove selector lever knob, then remove overdrive switch from selector knob.
