Od Switch: Installation

WARNING: This page is about a different variant/trim than selected.

Route NEW OD switch wires through selector lever knob, selector lever and selector lever control bracket. Install knob onto selector lever and switch into knob. Install NEW park pin switch onto control checker, then install control checker onto selector lever control bracket.
Install OD switch wire terminals into connector cavities No. 1 and 2. See Figure. Install shift lock solenoid by aligning joint of shift lock solenoid plunger with tip of shift lock extension. Install shift lock solenoid screws.
Place selector lever in Neutral. Adjust OD switch wire clearance at selector lever control bracket. Wire clearance should be .5" (13 mm). See Fig 2.
To install remaining components, reverse removal procedure. Check selector lever and shift lock operation.

Fig 1: Exploded View Of Selector Lever Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

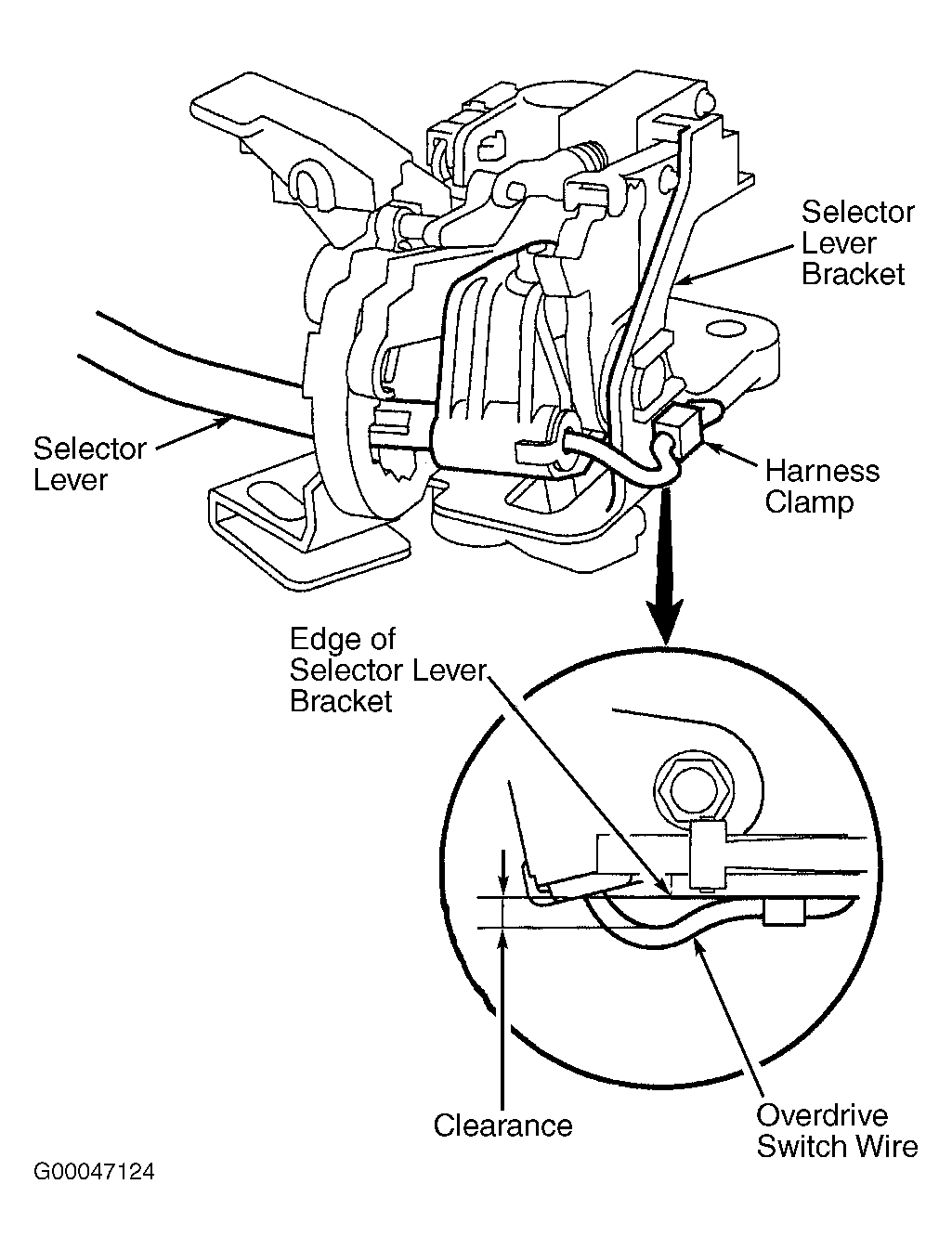

Fig 2: OD Switch Wire Adjustment

Courtesy of AMERICAN HONDA MOTOR CO., INC.
