Pin Voltage Tests

WARNING: This page is about a different variant/trim than selected.

NOTE: For pin voltage tests, refer to illustrations. See Fig 1-Fig 2

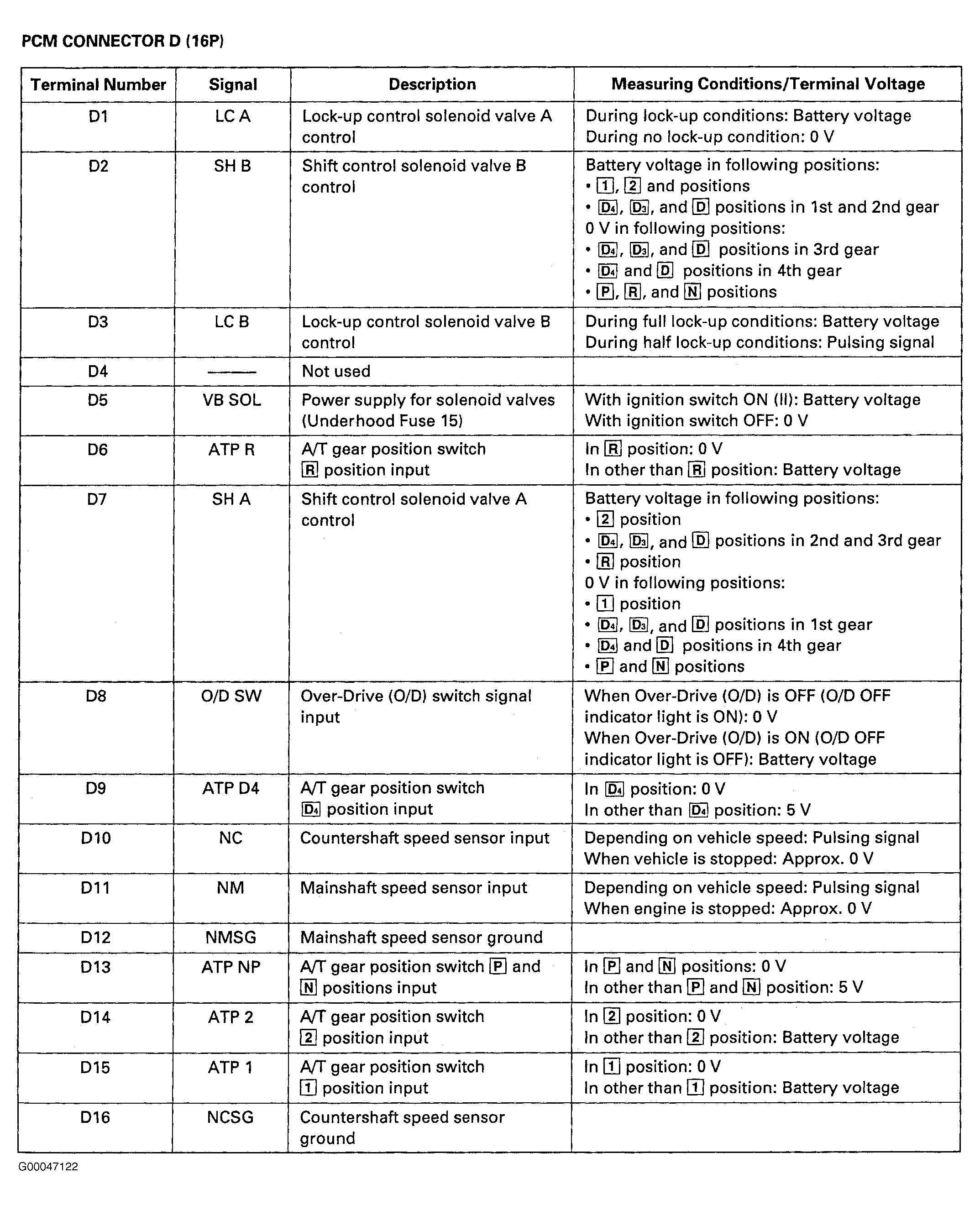

Fig 1: Pin Voltage Chart & Terminal Identification (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

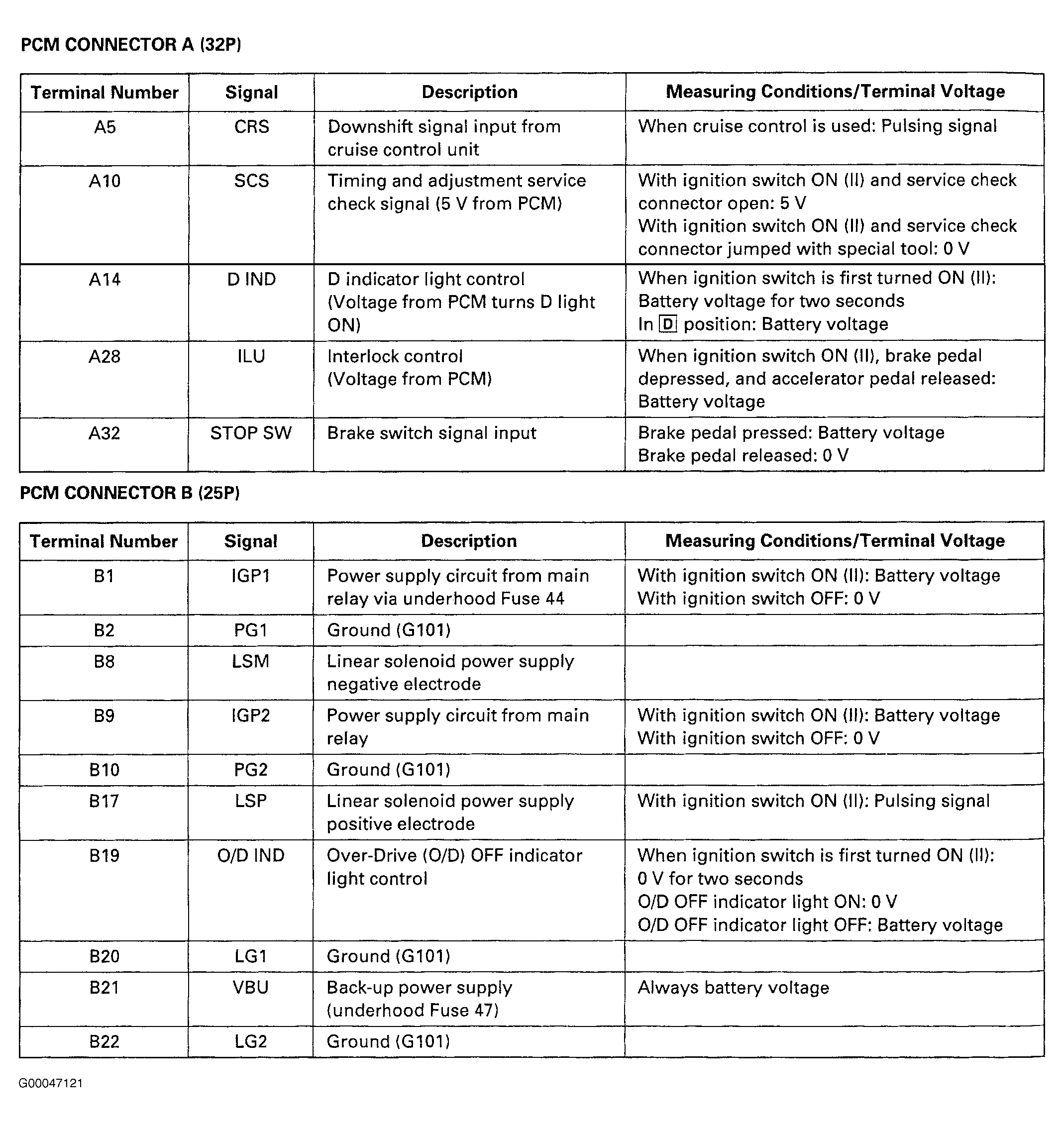

Fig 2: Pin Voltage Chart & Terminal Identification (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
