Powertrain Control Module

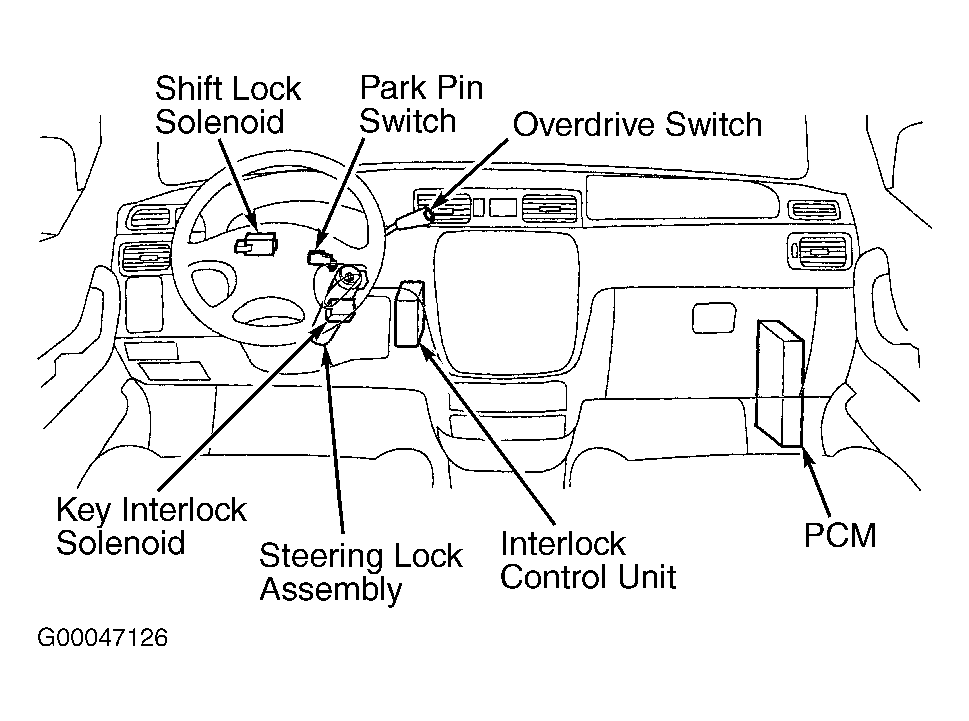

The Powertrain Control Module (PCM) receives information from various input devices and uses this information to control shift and lock-up control solenoid valves. The PCM contains self-diagnostic system which stores fault codes if failure or problem exists in transaxle electronic control system. Fault codes may also be referred to as Diagnostic Trouble Codes (DTCs) or flash codes. DTC or flash code may be retrieved to determine transaxle problem area. See DIAGNOSIS & TESTING . The PCM is located behind right kick panel. See Figure.
