A/T Gear Position Indicator
WARNING: This page is about a different variant/trim than selected.

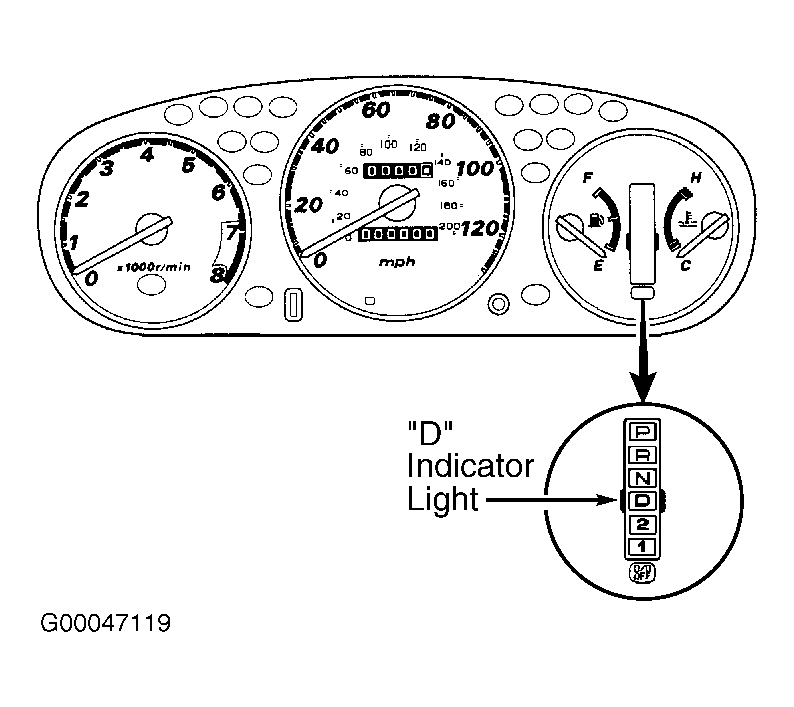

With ignition switch in RUN or START position, voltage is supplied to A/T gear position indicator located on instrument panel. See Fig 1. When selector lever is moved to designated gear position, A/T gear position switch completes the ground circuit for A/T gear position indicator on instrument panel. The light on A/T gear position indicator will be illuminated to indicate the selected gear.
