Connector Identification

WARNING: This page is about a different variant/trim than selected.

NOTE: For connector identification, refer to illustrations. See Fig 1-Fig 3 .

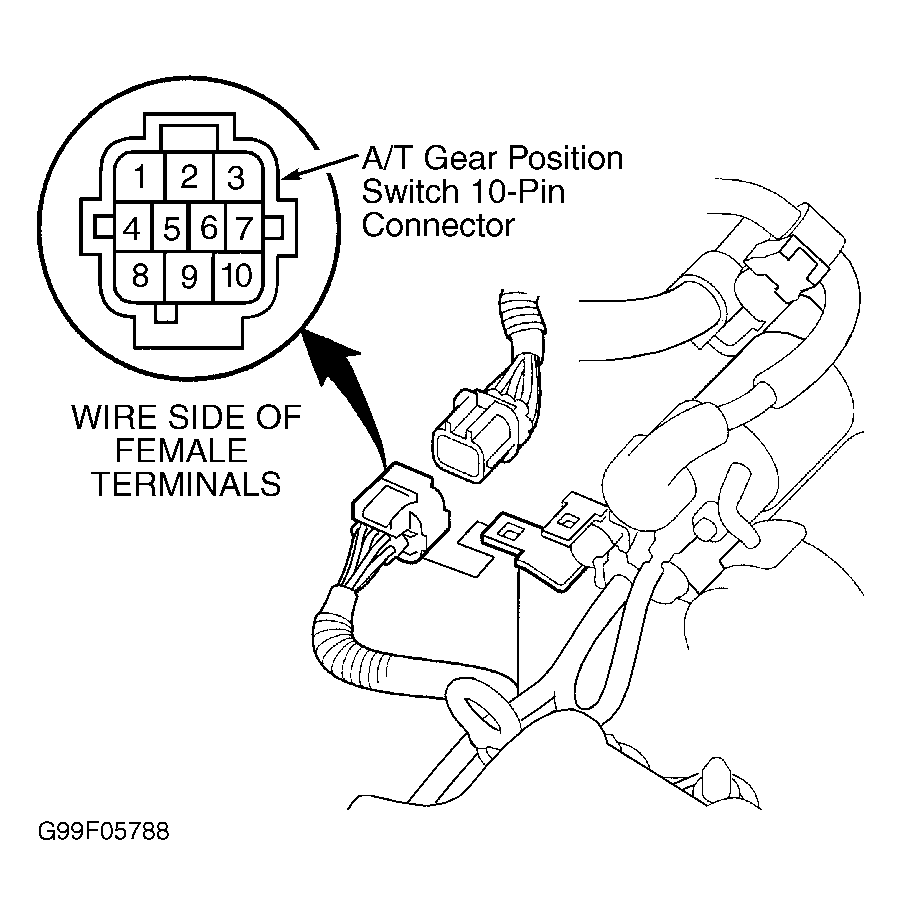

Fig 1: Identifying A/T Gear Position Switch Harness Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

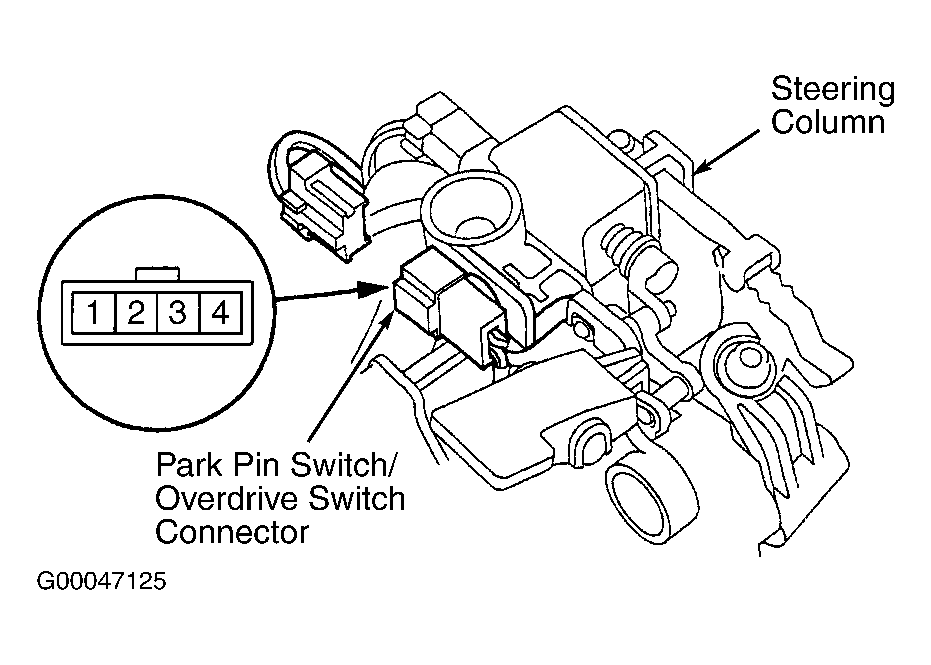

Fig 2: Identifying Park Pin Switch/OD Switch Harness Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

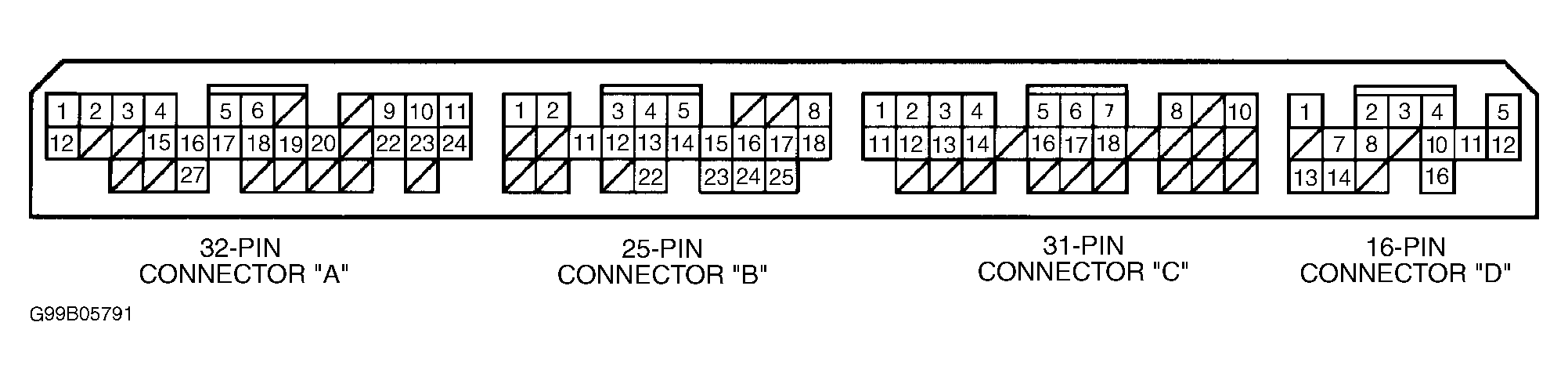

Fig 3: PCM Harness Connector Terminal Identification

Courtesy of AMERICAN HONDA MOTOR CO., INC.
