Accord, Civic, Odyssey, Prelude (Except Prelude With ATTS) & S2000
WARNING: This page is about a different car, the 2001 Honda Prelude, 2001 Honda Odyssey, 2001 Honda Civic, 2001 Honda CR-V, and 2001 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

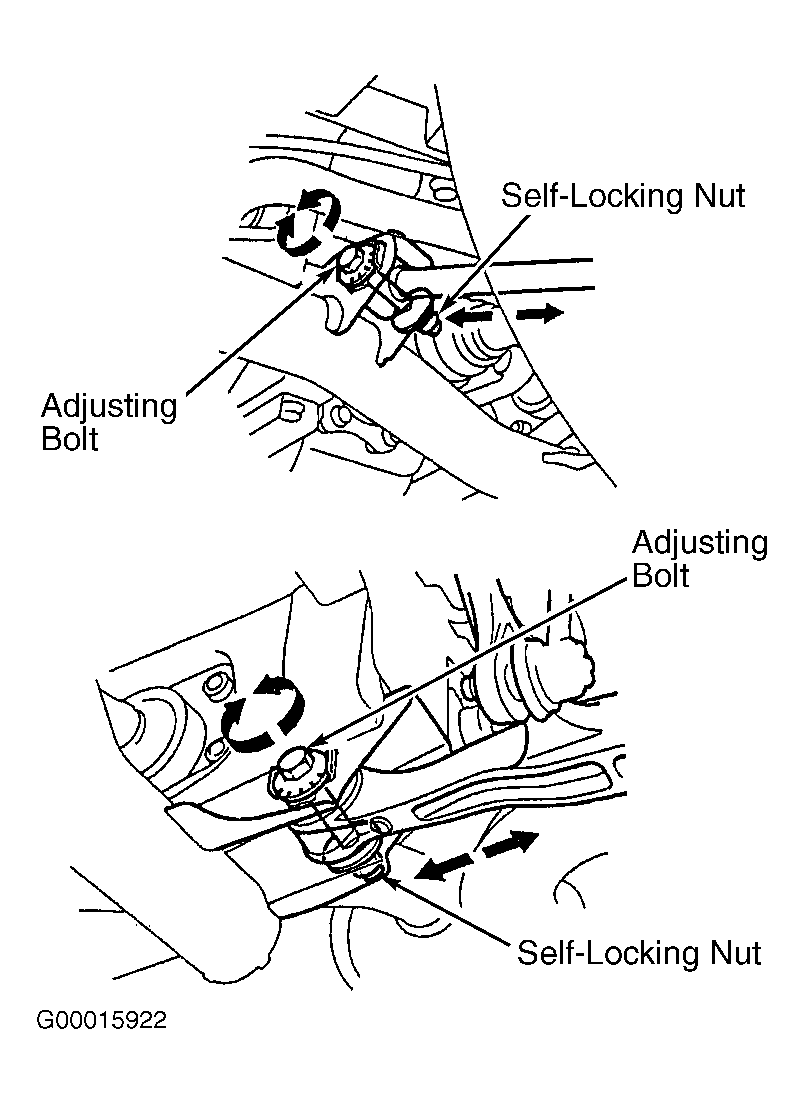

On S2000 models, adjust rear toe by moving upper and lower control arms same amount in opposite directions. Example: upper control arm is moved out, move lower control arm in.

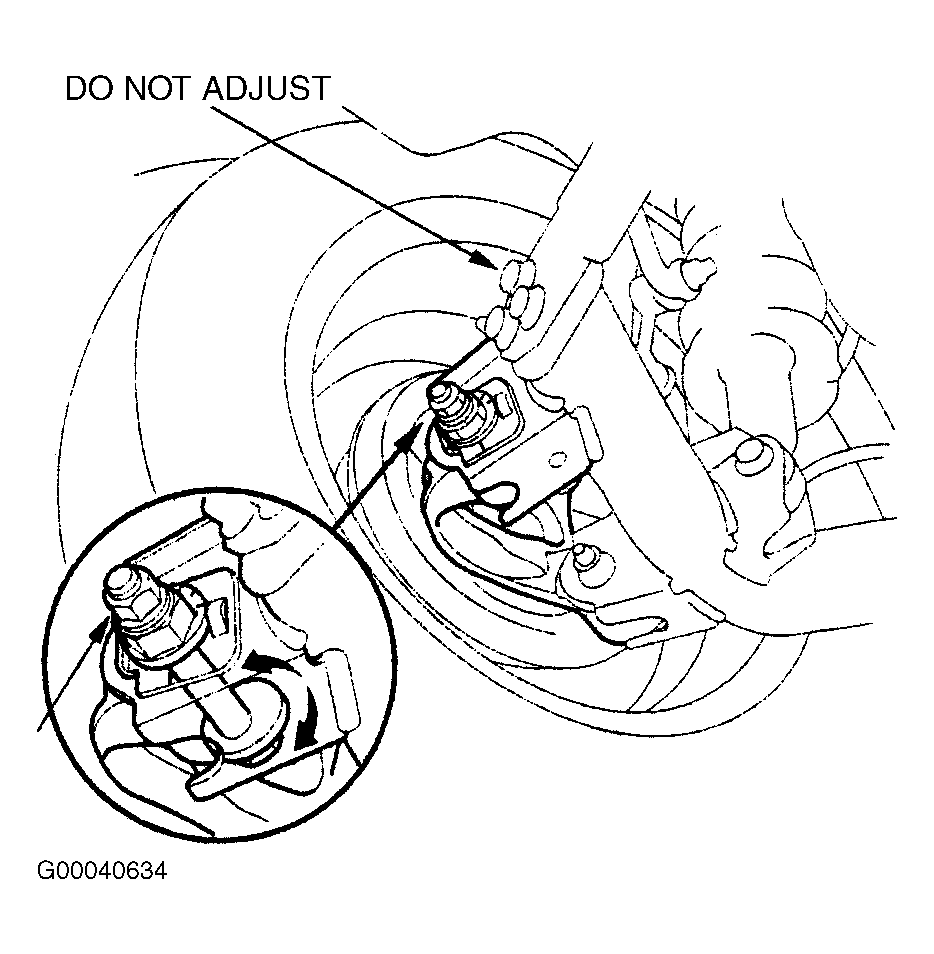

- Check caster and camber. See WHEEL ALIGNMENT SPECIFICATIONS . Adjust if necessary. Secure steering wheel in straight-ahead position. Ensure parking brake is released. Check rear wheel toe-in. If rear toe-in needs adjustment, hold adjusting bolt on rear lower control arm and loosen lock nut. Adjust rear toe-in by turning adjusting eccentric bolt until toe-in is correct. Install lock nut, and tighten it while holding adjusting bolt. See Fig 1 -Fig 4 . See TORQUE SPECIFICATIONS .
- Measure front wheel toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . If adjustment is needed, loosen tie rod lock nuts. Turn both tie rods equally in same direction until front wheels are in straight-ahead position and toe-in reading is correct. Tighten tie rod lock nuts. See TORQUE SPECIFICATIONS . Reposition tie rod boots if they are twisted.
