Floor Jack

WARNING: This page is about a different car, the 2001 Honda Prelude, 2001 Honda Odyssey, 2001 Honda Civic, 2001 Honda CR-V, and 2001 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set parking brake. Block wheels that are not going to be lifted. When lifting rear of vehicle, place transmission in Reverse (M/T) or Park (A/T). See Figure .
  2. Place floor jack lift platform under lift bracket to raise vehicle. See Fig 1 -Fig 7 . On Insight, left and right lift brackets are located under vehicle at center line. On other models, front lift bracket is located under vehicle, on cross/center beam. Rear lift bracket is located under center of vehicle, left of muffler. On all models, place safety stands onto reinforced support points of side body panels (between front and rear wheels).

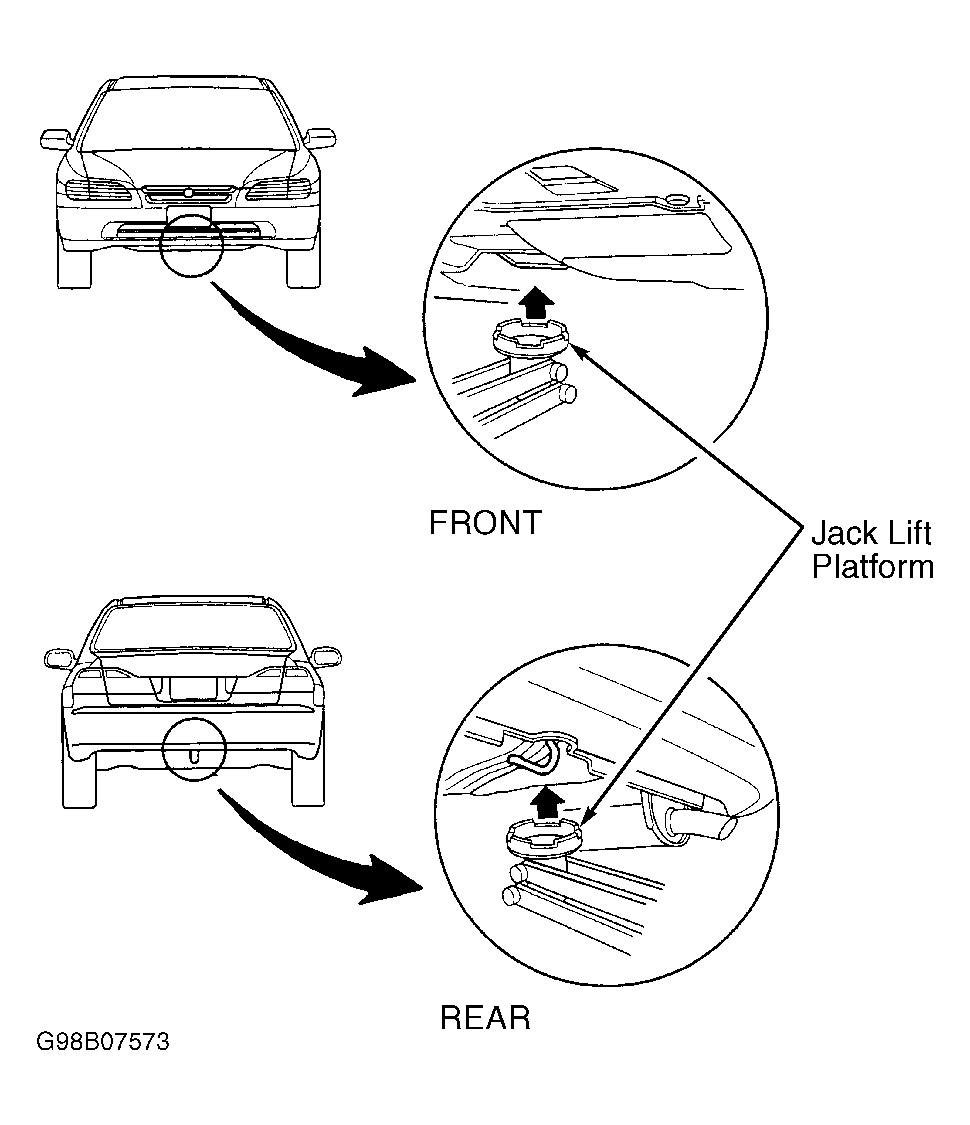

Fig 1: Identifying Lift Brackets Under Vehicle (Accord)
G98B07573Courtesy of AMERICAN HONDA MOTOR CO., INC.

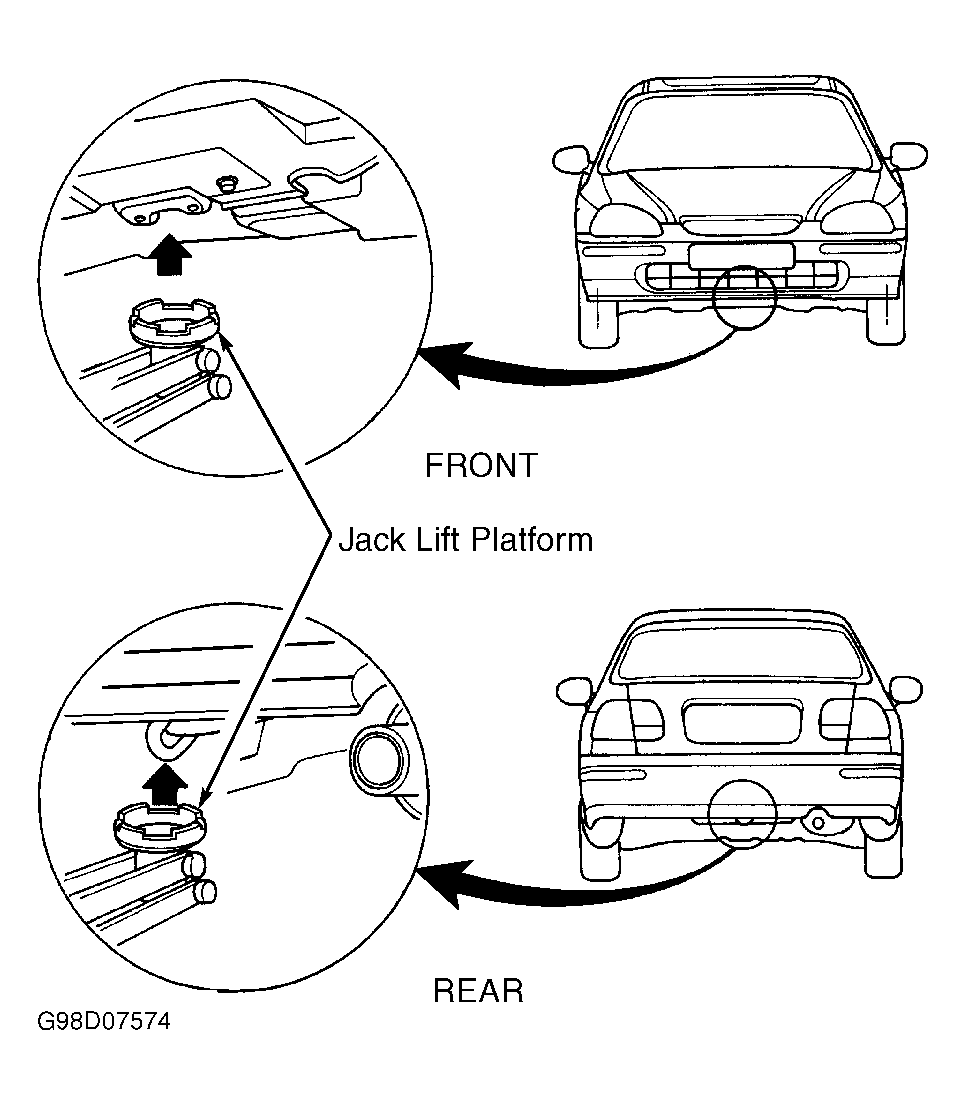

Fig 2: Identifying Lift Brackets Under Vehicle (Civic)
G98D07574Courtesy of AMERICAN HONDA MOTOR CO., INC.

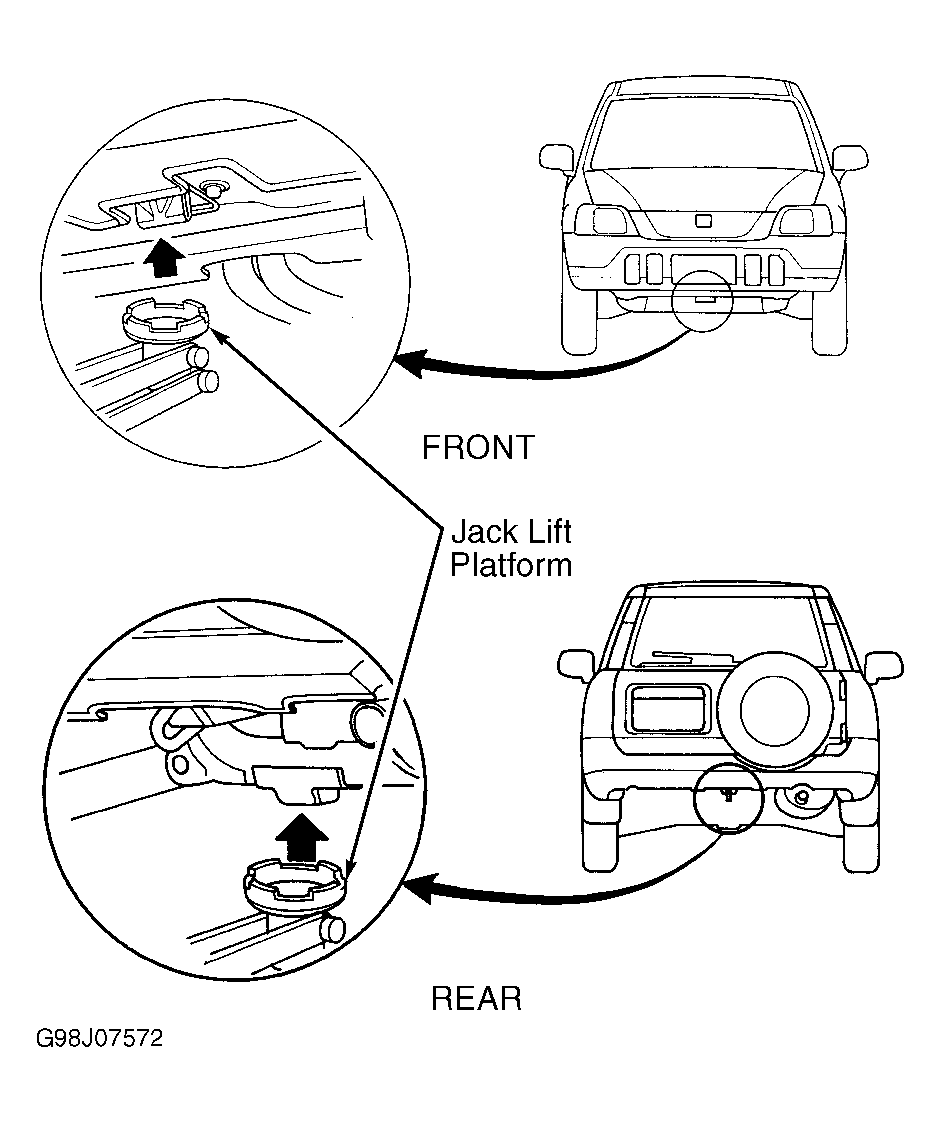

Fig 3: Identifying Lift Brackets Under Vehicle (CR-V)
G98J07572Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Identifying Lift Bracket Under Vehicle (Insight)
G00040632Courtesy of AMERICAN HONDA MOTOR CO., INC.

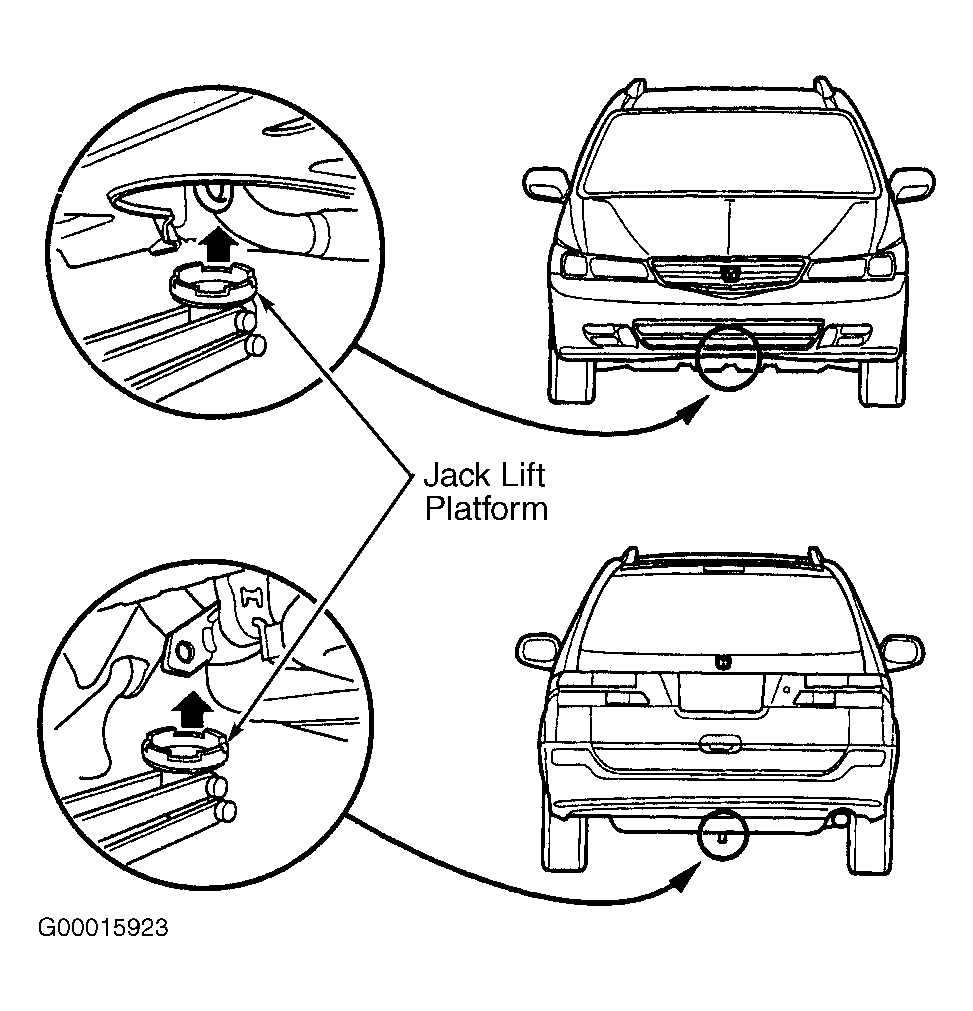

Fig 5: Identifying Lift Brackets Under Vehicle (Odyssey)
G00015923Courtesy of AMERICAN HONDA MOTOR CO., INC.

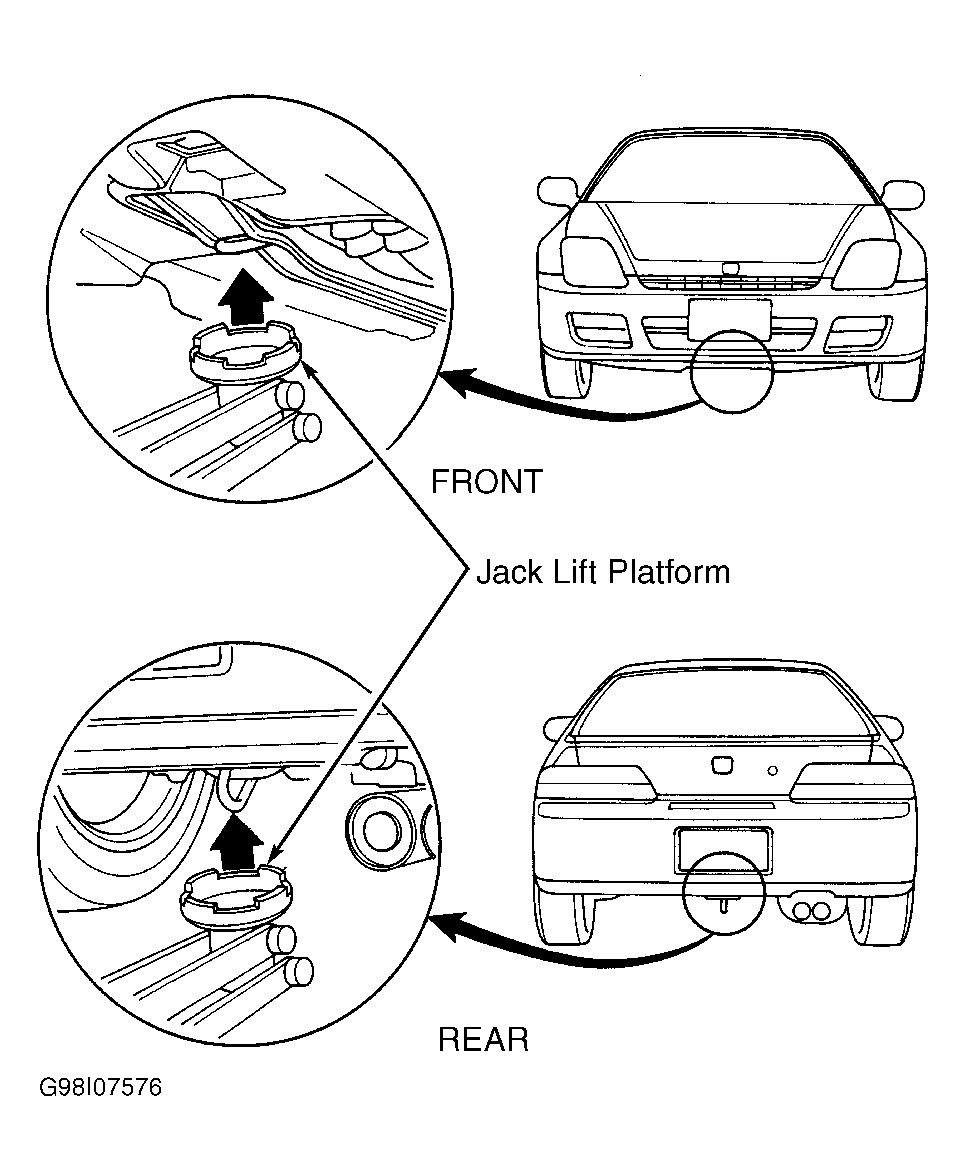

Fig 6: Identifying Lift Brackets Under Vehicle (Prelude)
G98I07576Courtesy of AMERICAN HONDA MOTOR CO., INC.

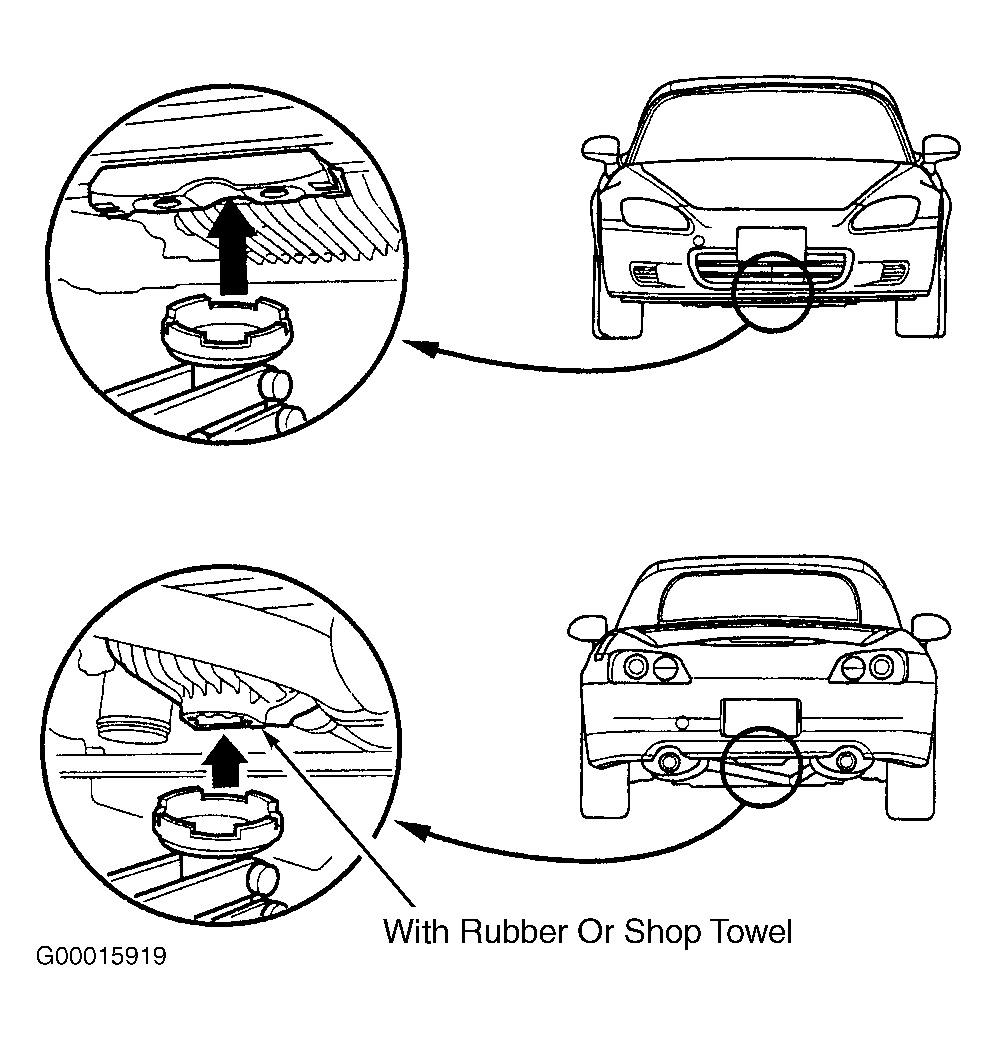

Fig 7: Identifying Lift Brackets Under Vehicle (S2000)
G00015919Courtesy of AMERICAN HONDA MOTOR CO., INC.
