Rear Brake Shoes: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 Honda Prelude, 2001 Honda Odyssey, 2001 Honda Insight, 2001 Honda Civic, and 2001 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
On Odyssey, use a rubber band around wheel cylinder pistons before removing brake shoes. Wheel cylinder pistons may pop out or shift to one end.
- Raise and support rear of vehicle. Remove rear wheels and brake drums. On Accord and CR-V, remove upper return spring. On all models, detach shoe tension pins by pushing in on retaining spring and turning tension pin 90 degrees to align with spring slot.

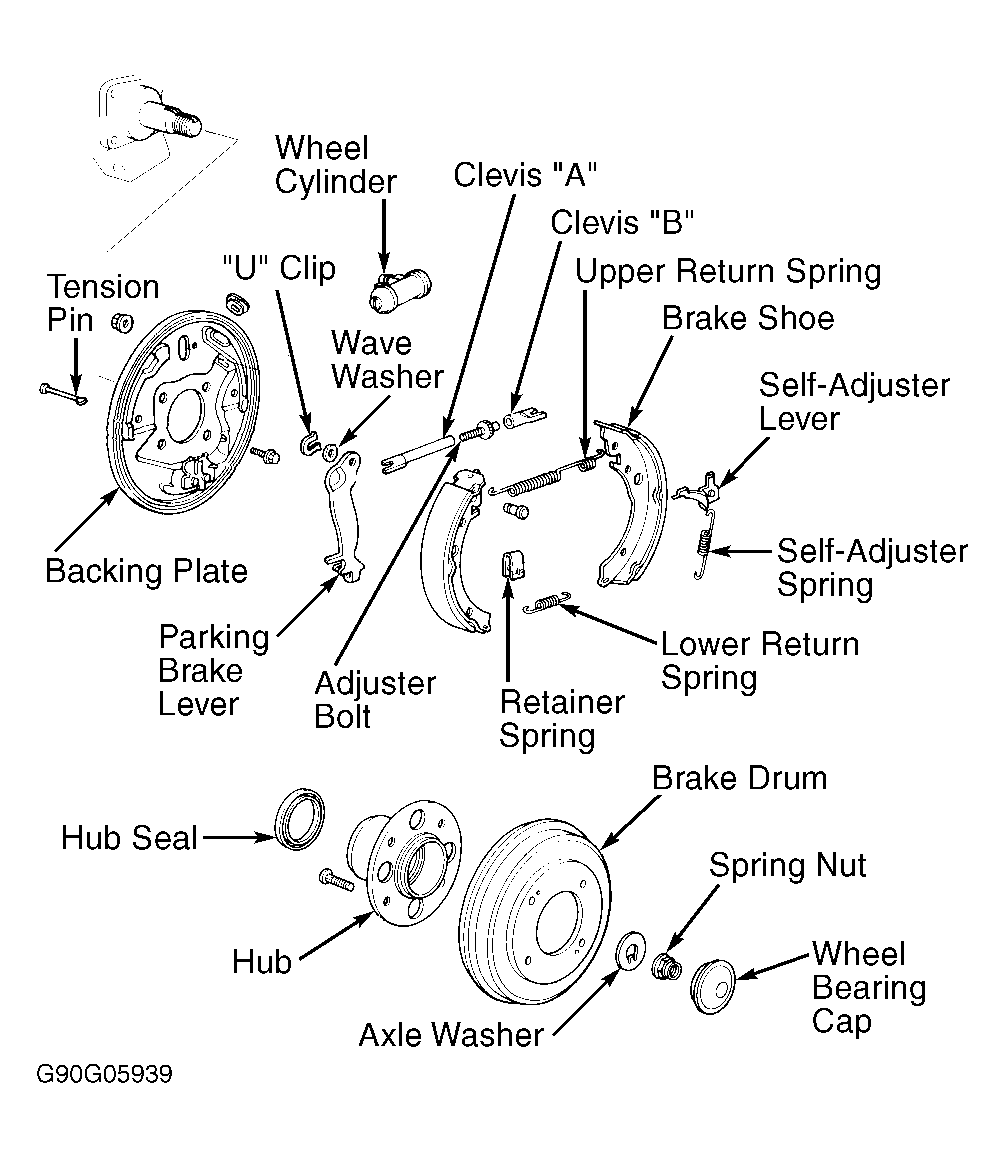

- Lower brake shoe assembly to clear wheel cylinder, and remove lower return spring. Note original position of all springs. See Fig 1
.CAUTION: Ensure wheel cylinder rubber dust covers are not damaged during brake shoe removal.
- Remove brake shoe assembly. Disconnect parking brake cable from parking brake lever assembly. On Civic, remove upper return spring. On all models, separate brake shoes. Remove self-adjuster bolt, lever and spring. Pry off circlip, and remove washer, pivot pin and parking brake lever, if necessary. Mark parking brake lever for left or right position.
