Accord, CR-V, Odyssey & Prelude
WARNING: This page is about a different car, the 2001 Honda Prelude, 2001 Honda Odyssey, 2001 Honda CR-V, and 2001 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

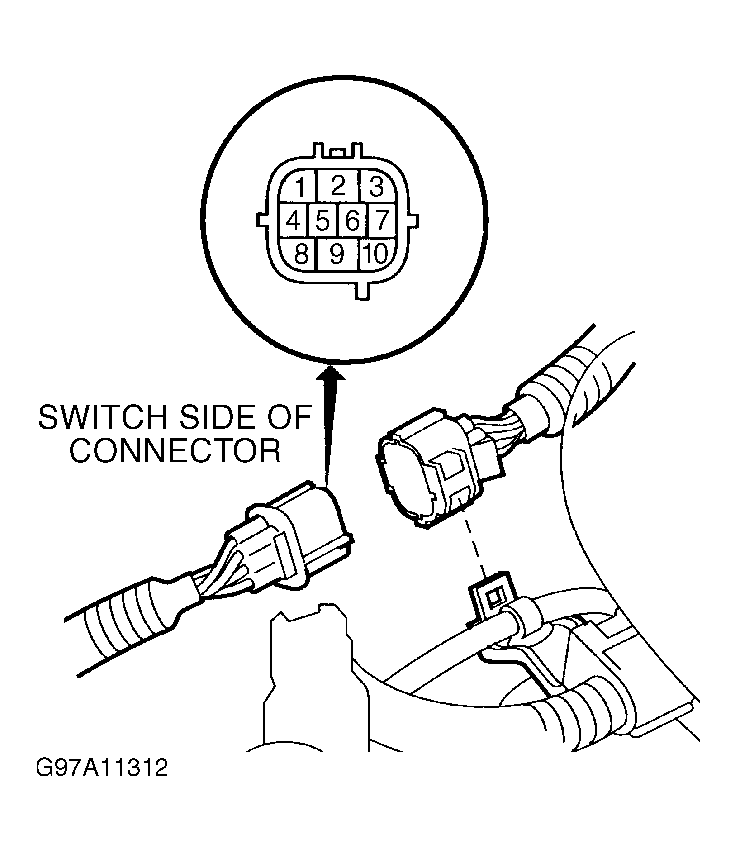

- Disconnect gear position switch connector, located above transaxle, near gear position switch. See Fig 1.
- Check for continuity between specified terminals of gear position switch with shifter in appropriate positions. See A/T GEAR POSITION SWITCH CONTINUITY table. Replace gear position switch if continuity does not exist between specified terminals.
A/T GEAR POSITION SWITCH CONTINUITY
| Shifter Position | Continuity Between Terminals No. | |
|---|---|---|
| Accord, CR-V, Odyssey & Prelude | ||
| Park & Neutral | 1 & 3 | |
| Civic | ||
| Park & Neutral | 4 & 5 | |
