Odyssey & S2000

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2000 Honda Odyssey, 2000 Honda Insight, 2000 Honda Civic, 2000 Honda Accord, and 1999 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Ensure pointer ("A" in illustration) on the auto-tensioner housing is not beyond the edge of the indicator rib ("B" in illustration) on the tensioner base. See Fig 1.
Move the auto-tensioner ("A" in illustration) to relieve tension from the alternator belt ("B" in illustration), and remove the alternator-compressor belt. See Fig 2.
Install the new belt in the reverse order of removal.

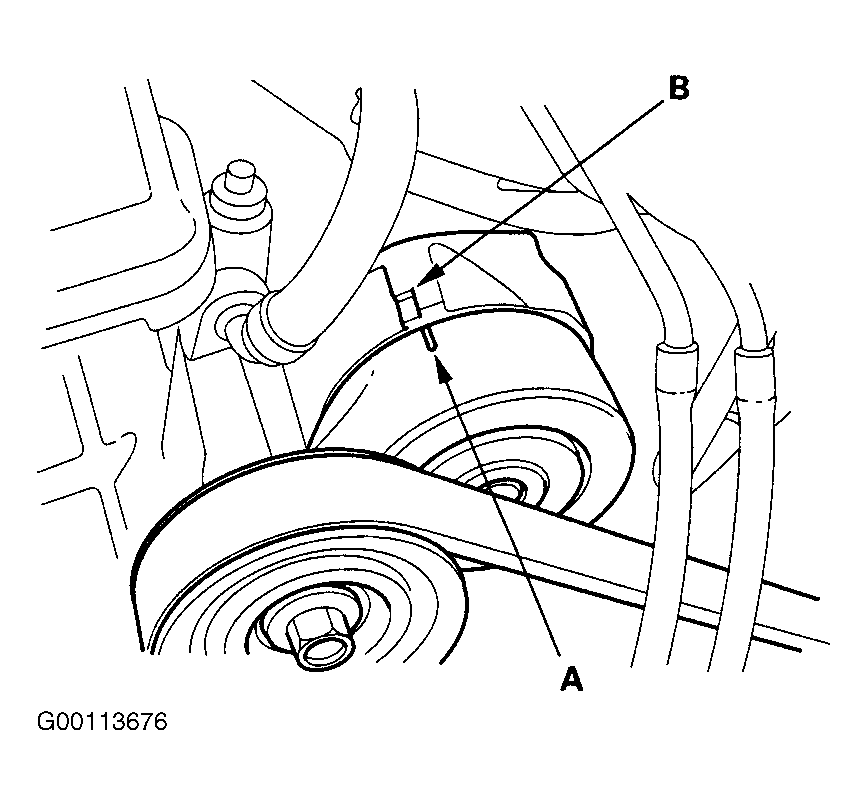

Fig 1: Inspecting A/C Belt (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

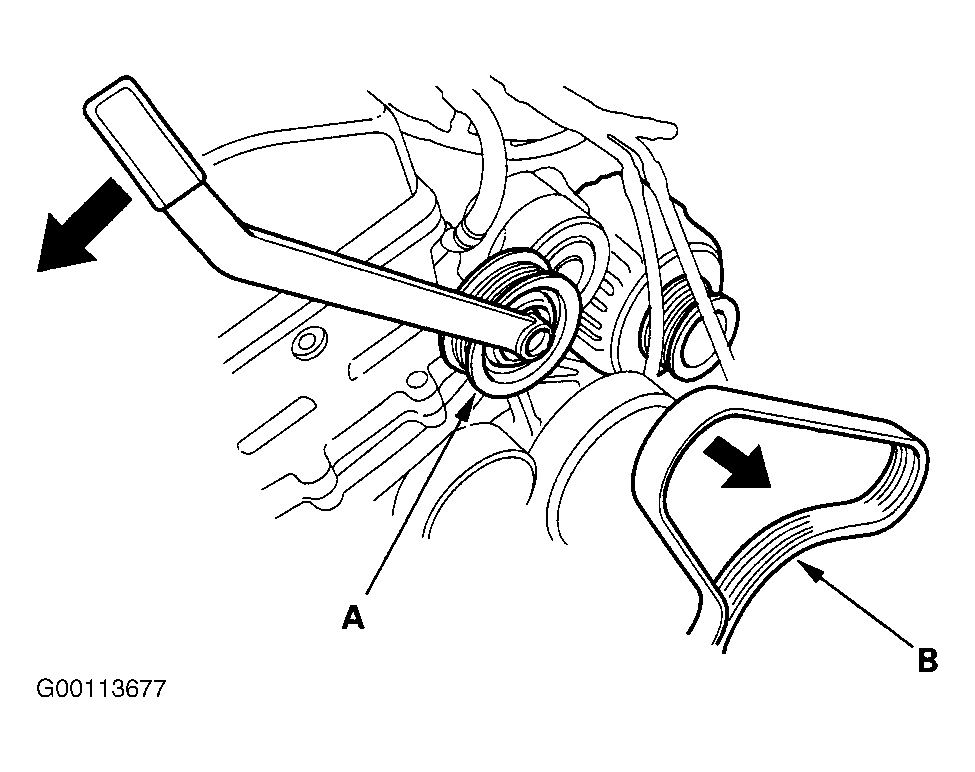

Fig 2: Removing A/C Belt (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

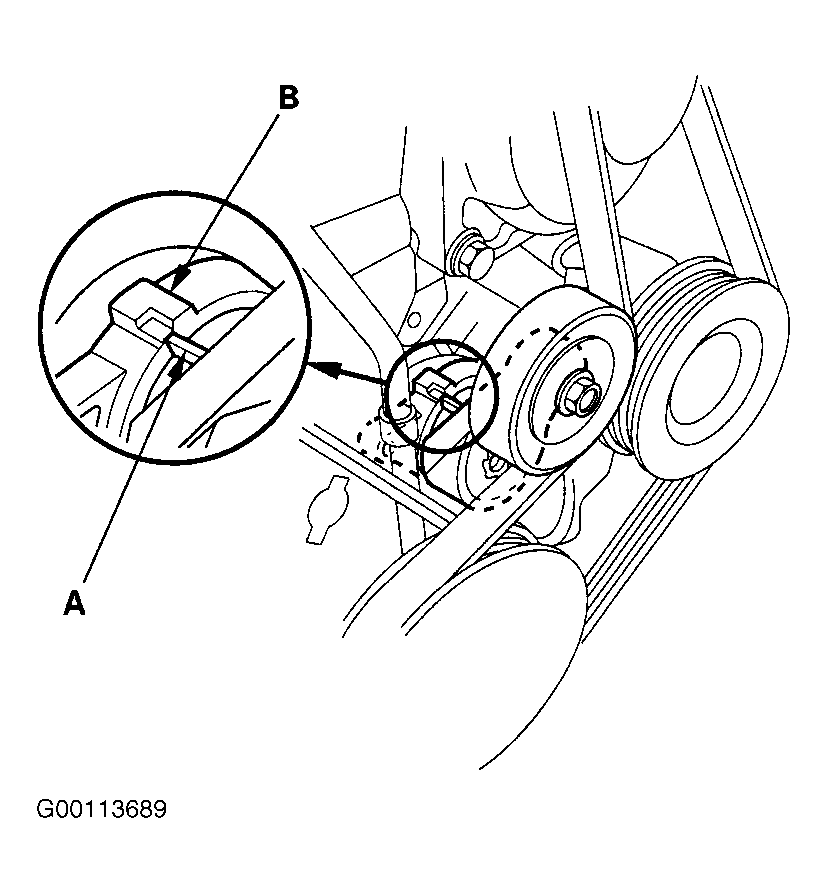

Fig 3: Inspecting A/C Belt (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

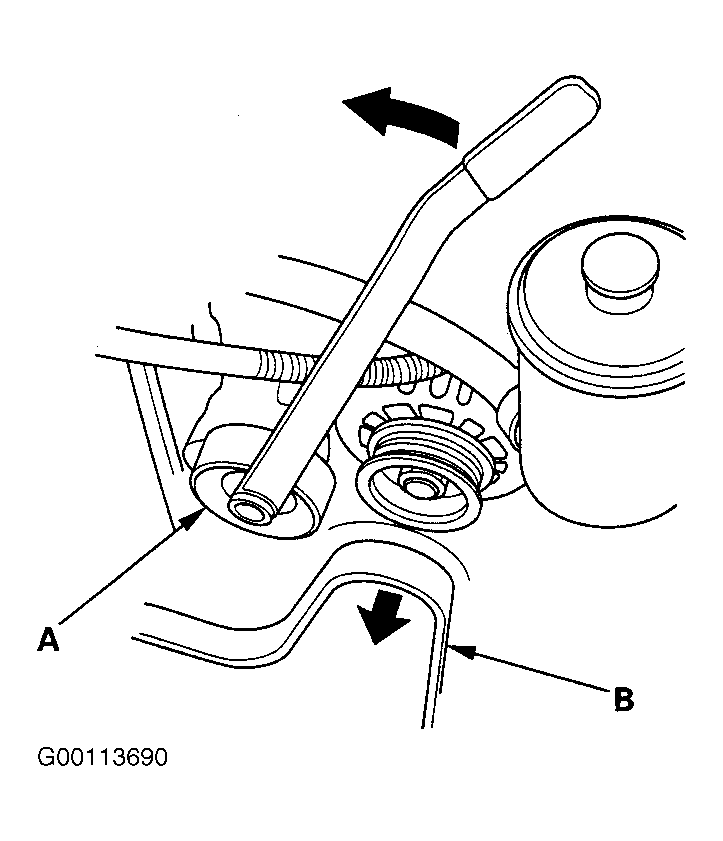

Fig 4: Removing A/C Belt (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
