Automatic Locking Hub: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2001 Isuzu VehiCROSS, 2001 Isuzu Trooper, 2000 Isuzu VehiCROSS, 2000 Isuzu Trooper, and 1999 Isuzu VehiCROSS. However, it is still accessible from the selected car via links, so may be relevant.

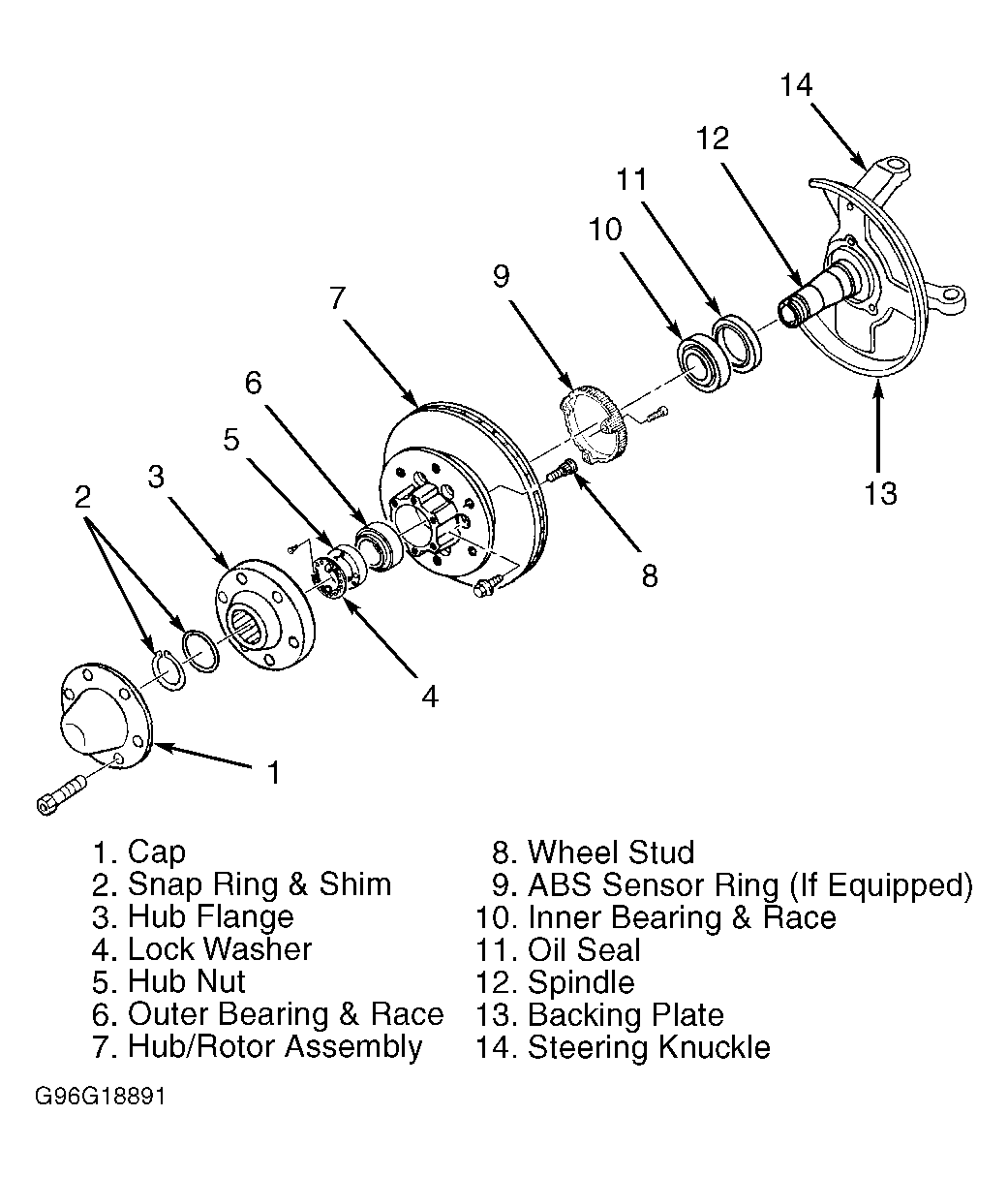

  1. Raise and support vehicle. Remove wheel and brake caliper. Wire caliper aside. Remove 6 bolts and locking hub cover. See Figure .
  2. Remove snap ring and shim. Remove hub flange. Remove lock screw and washer. Using Hub Nut Wrench (J-36827), remove hub nut. Remove outer bearing with hub and rotor assembly. Mark hub and rotor relation if they are to be separated.
