Worm Shaft, Stub Shaft & Valve Body (Hombre): Disassembly
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2000 Isuzu VehiCROSS, 2000 Isuzu Trooper, 2000 Isuzu Rodeo, 2000 Isuzu Hombre, and 2000 Isuzu Amigo. However, it is still accessible from the selected car via links, so may be relevant.
- Mark position of worm bearing races and bearing to worm shaft. Mark position of worm shaft notches to valve body. Remove worm shaft from valve body and stub shaft assembly. Remove stub shaft seal. Remove worm bearing races and bearing from worm shaft. See Figure.

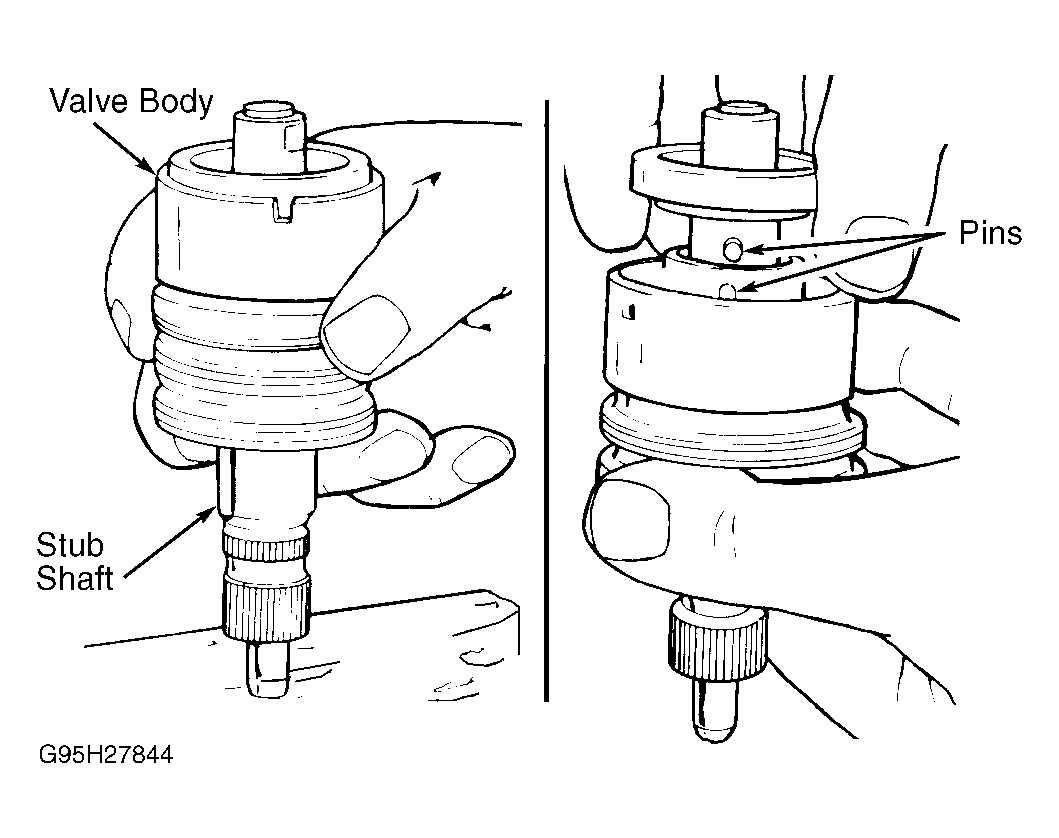

- Lightly tap end of stub shaft against wood block until shaft cap is free of valve body. Pull stub shaft outward until drive pin hole is visible. See Fig 1.CAUTION: DO NOT pull shaft more than 1/4" (6 mm), or spool valve may become cocked in valve body. DO NOT force stub shaft or valve spool out of valve body.
- Disengage drive pin. Remove stub shaft from valve body. Rotate and remove valve spool from valve body. If binding occurs, realign valves. Remove spool valve seal. Remove valve body rings and seals.
