Reassembly (Amigo, Passport/Rodeo, Trooper & VehiCROSS)
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2000 Isuzu VehiCROSS, 2000 Isuzu Trooper, 2000 Isuzu Rodeo, 2000 Isuzu Hombre, and 2000 Isuzu Amigo. However, it is still accessible from the selected car via links, so may be relevant.

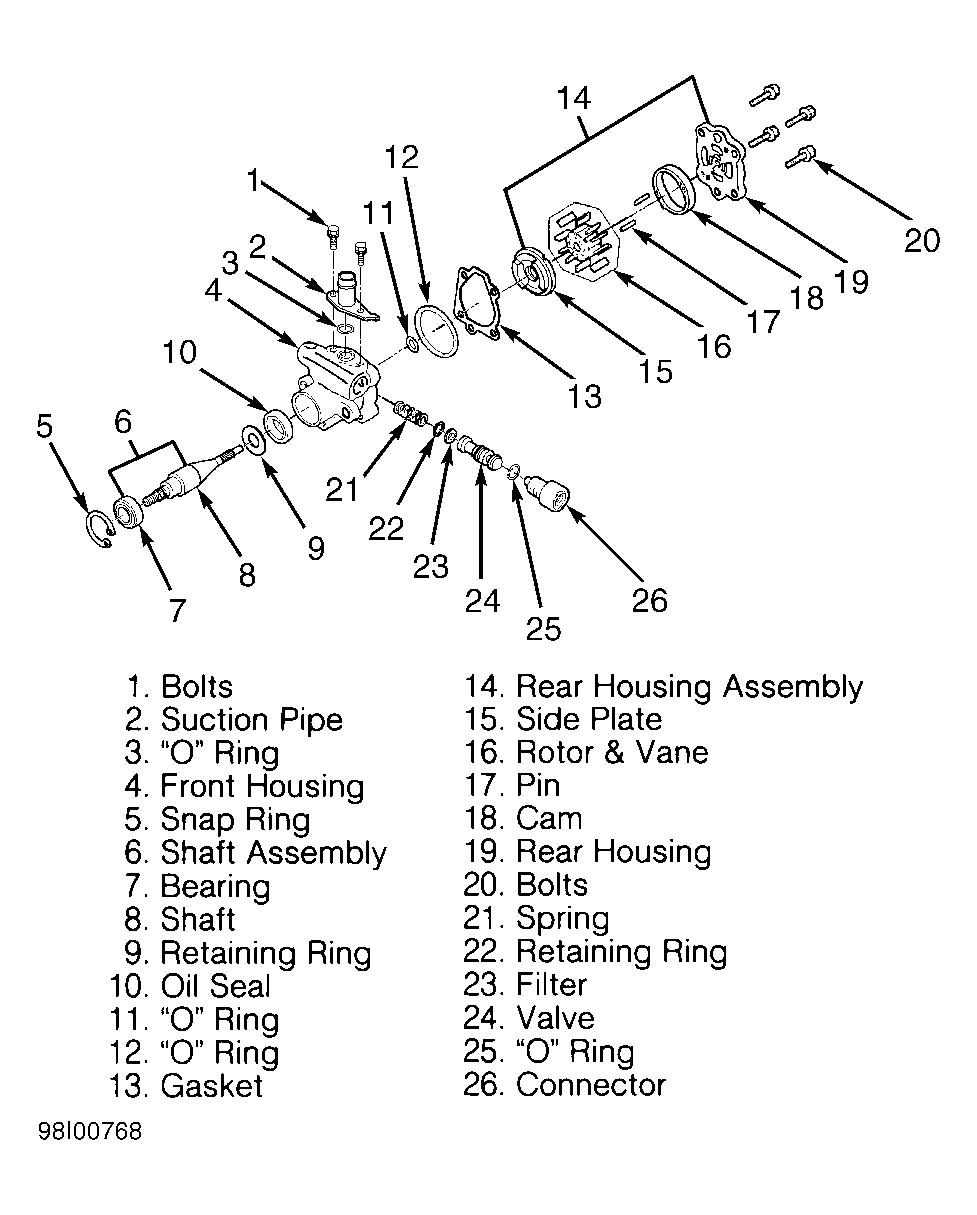

To reassemble, reverse disassembly procedure. Install rotor, cam ring and vane respectively. Ensure tiny square Black mark on rotor faces upward. Align cam ring holes with body slots. Turn side of cam ring with clearance around dowel, facing upward. Ensure rounded end of vane matches cam ring inner surface. Tighten end cover bolt and hose connector fitting to 40 ft. lbs. (54 N.m).
