Disassembly (Hombre)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2000 Isuzu VehiCROSS, 2000 Isuzu Trooper, 2000 Isuzu Rodeo, 2000 Isuzu Hombre, and 2000 Isuzu Amigo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove pump assembly from vehicle. Remove retaining clips between reservoir and housing, and remove reservoir from housing.
  2. Remove union fitting and "O" ring. Remove control valve assembly and flow control spring.
  3. Protect drive shaft with shim stock and using a small chisel, cut drive shaft seal and remove. Using small drift punch, remove end cover retaining ring. See Fig 1. Remove internal components of pump by gently pushing on drive shaft. See Fig 2.
  4. Remove "O" ring from pump housing. Remove locating dowel pins. Remove drive shaft seal (if not already removed). Remove end cover, pressure plate spring and "O" ring from pressure plate.
  5. Remove pump ring and vanes from drive shaft subassembly. Remove retaining ring from drive shaft. Remove pump rotor and thrust plate from drive shaft.
Fig 1: Removing Retaining Ring (Hombre)
G94D65485Courtesy of GENERAL MOTORS CORP.

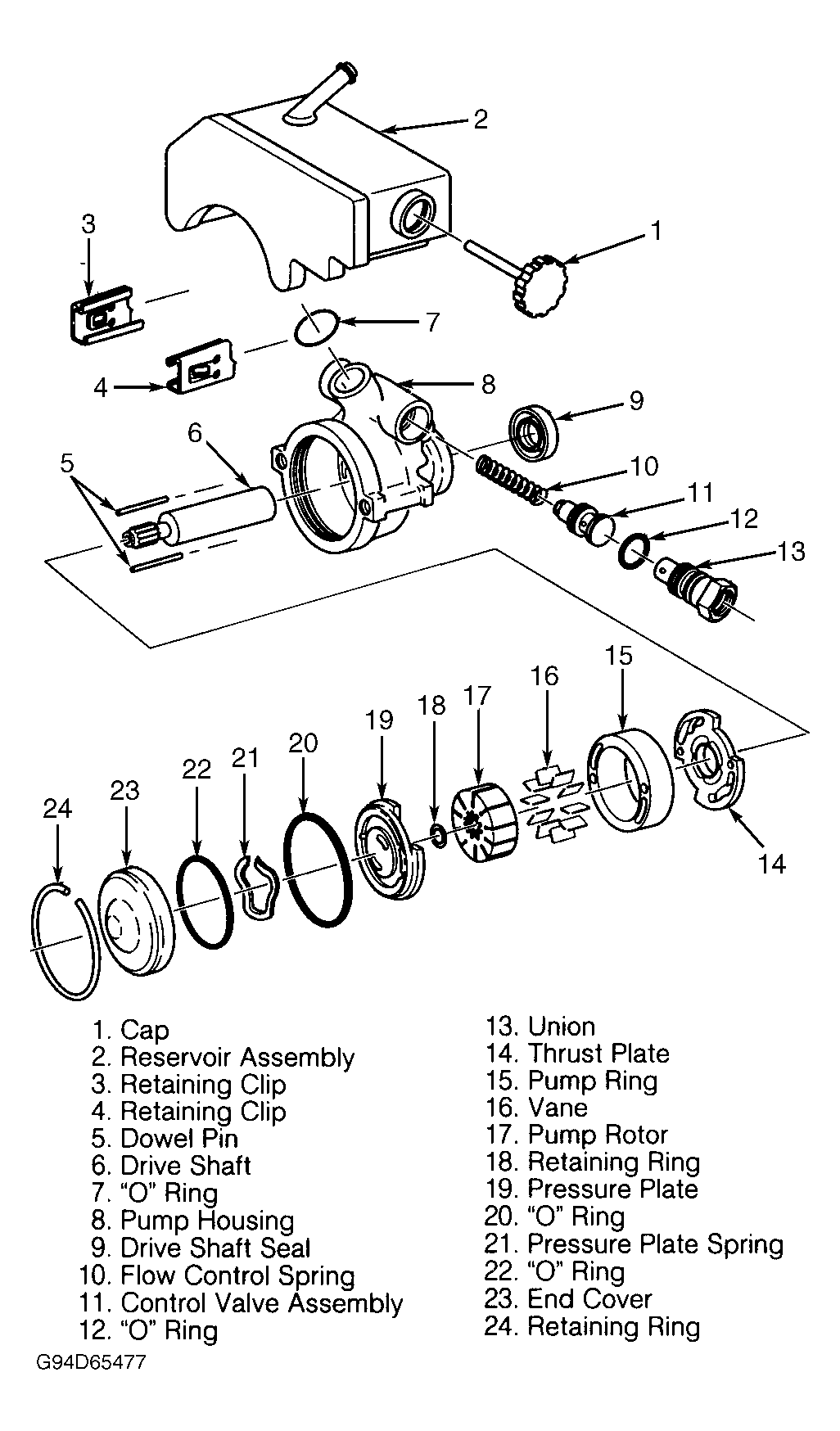

Fig 2: Exploded View Of Power Steering Pump (Hombre)
G94D65477Courtesy of GENERAL MOTORS CORP.
